Front Side Door Window Regulator Replacement (Manual)
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Glass and Sheet Metal Handling Warning
. Preliminary Procedure Remove the front side door window from the window regulator guide nuts. Refer to Front Side Door Window Replacement . |
|

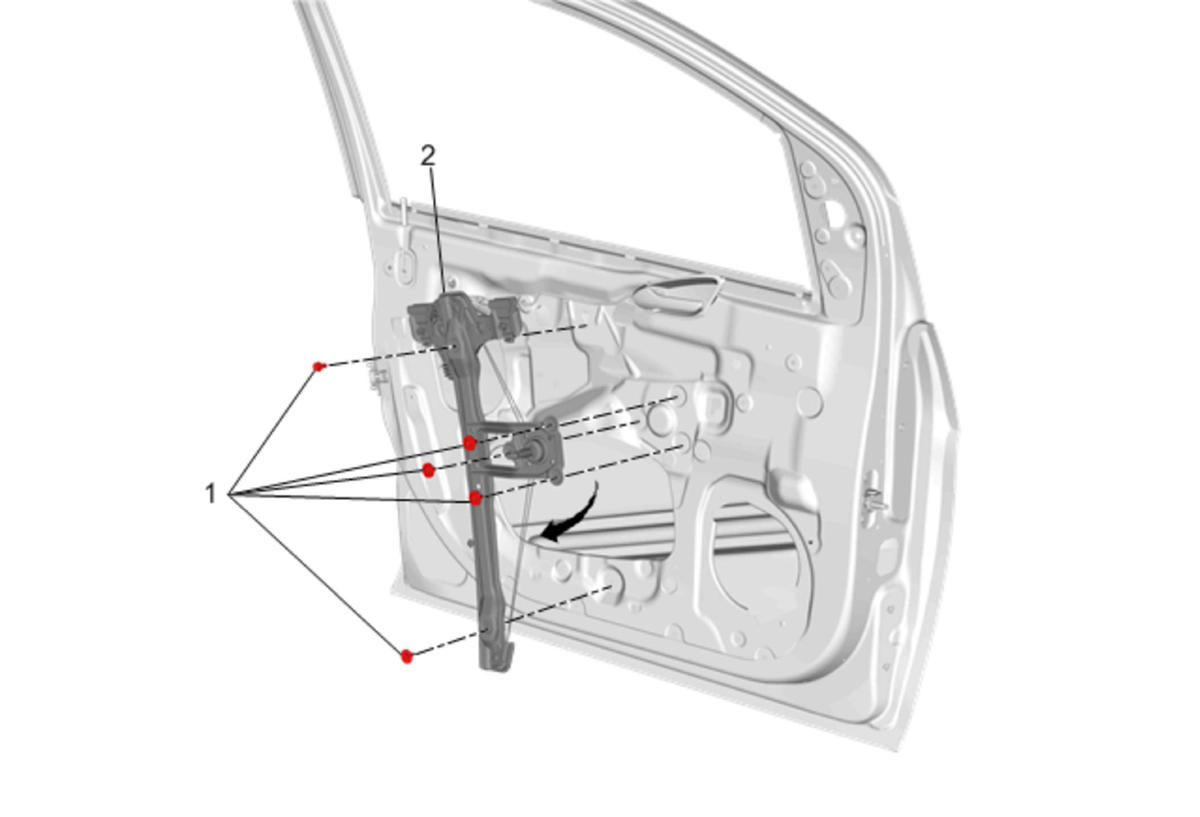

| 1 | Front Side Door Manual Window Regulator Screw (Qty: 5)
CAUTION:
Refer to Fastener Caution
. Procedure Remove the front side door water deflector. Tighten 11 N.m (97 lb in) |
