Section 67 (HVAC System - Manual)
>>
Schematic Wiring Diagrams
>>
HVAC Wiring Schematics
>>
Blower Controls and Temperature Sensors (C41/C60)
Blower Controls and Temperature Sensors (C41/C60)
WARNING:
This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

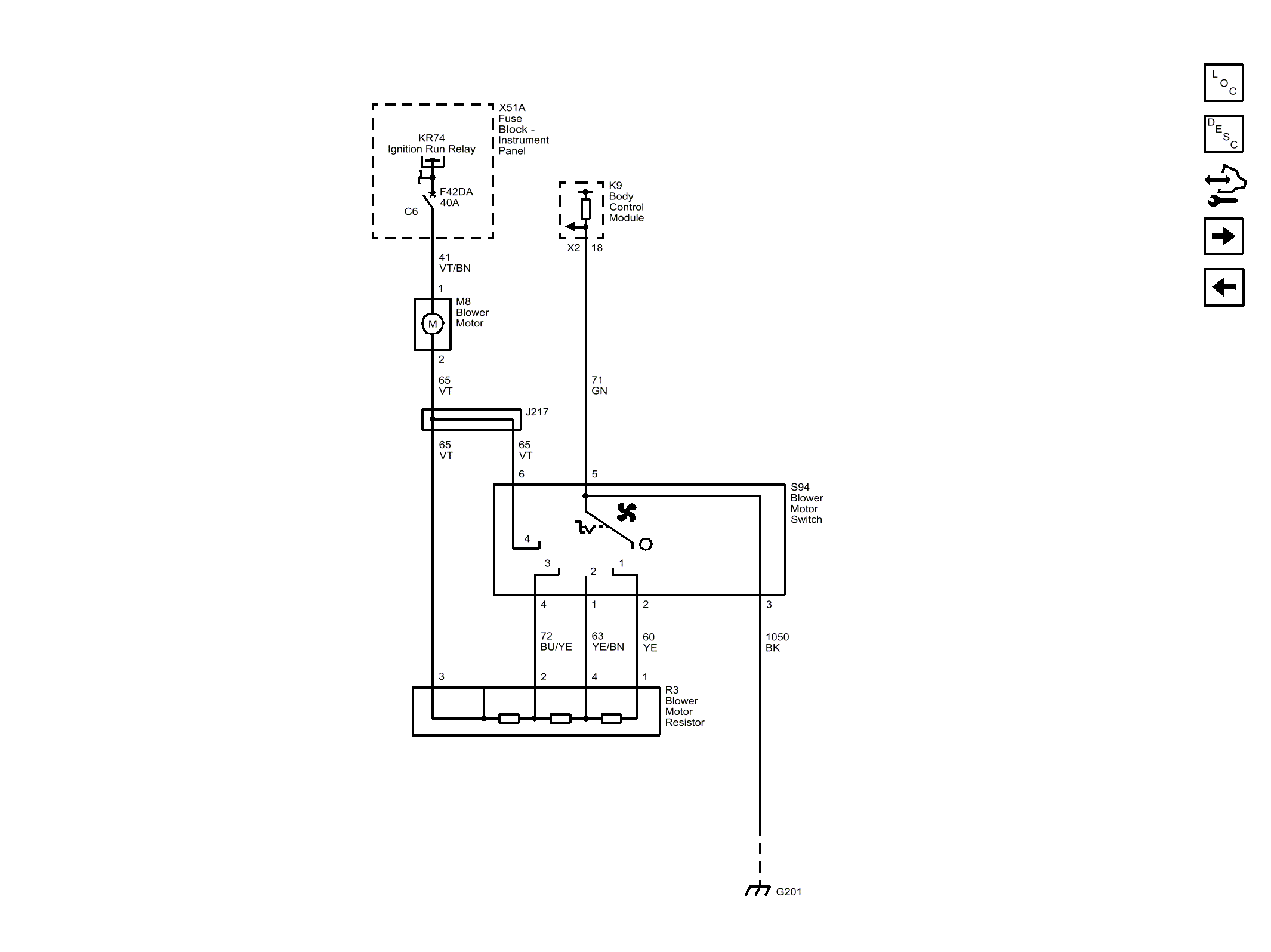

Fig 1: Blower Controls and Temperature Sensors (C41/C60)
Courtesy of GENERAL MOTORS COMPANY
