Temperature Valve Link Replacement (RHD)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

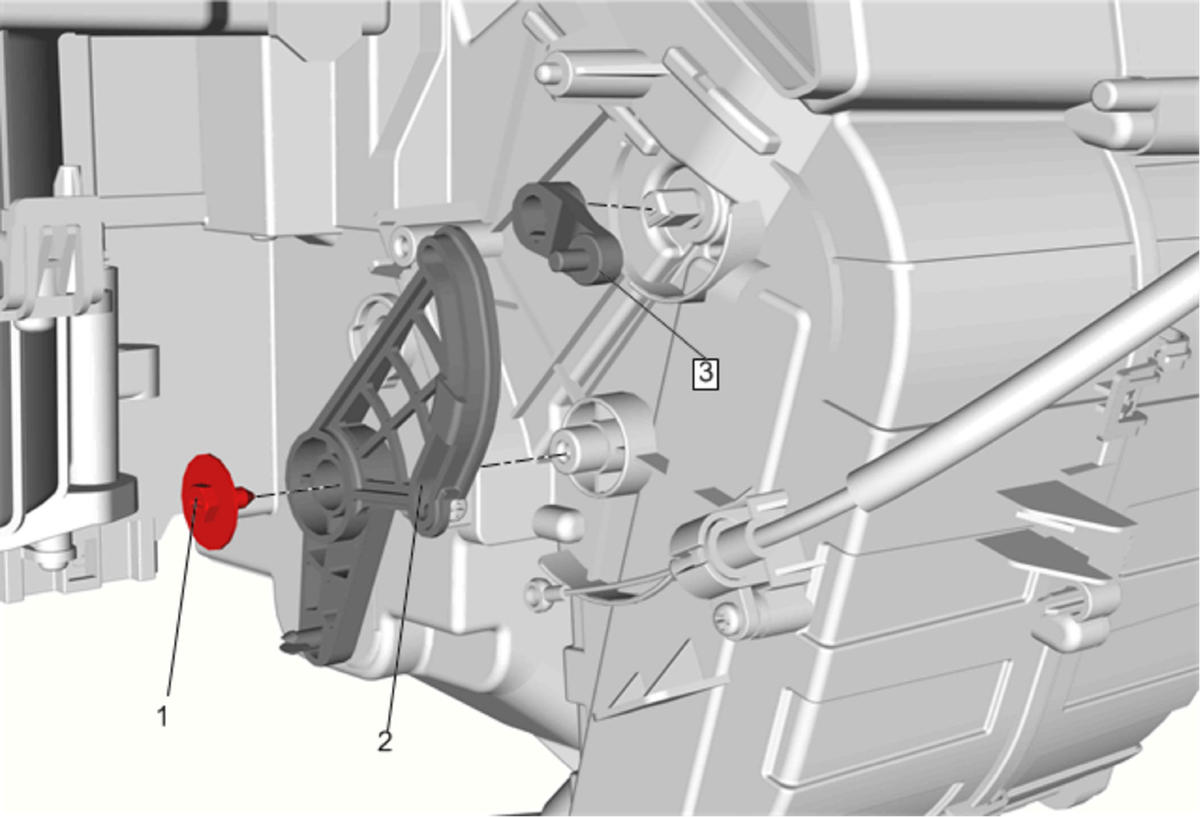

Fig 1: Temperature Valve Link (RHD)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement . Remove the front floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Right Side (Left Hand Drive)Floor Air Outlet Duct Replacement - Right Side (Right Hand Drive) . Disconnect the cable eyelet from the temperature valve link. Refer to Temperature Control Cable Replacement (LHD) Temperature Control Cable Replacement (RHD) .
1	Temperature Valve Link Screw CAUTION: Refer to Fastener Caution . Tighten 1.2 N.m (11 lb in)
2	Temperature Valve Link Assembly
3	Temperature Valve Link Assembly
