Mode Control Cable Replacement (LHD)
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

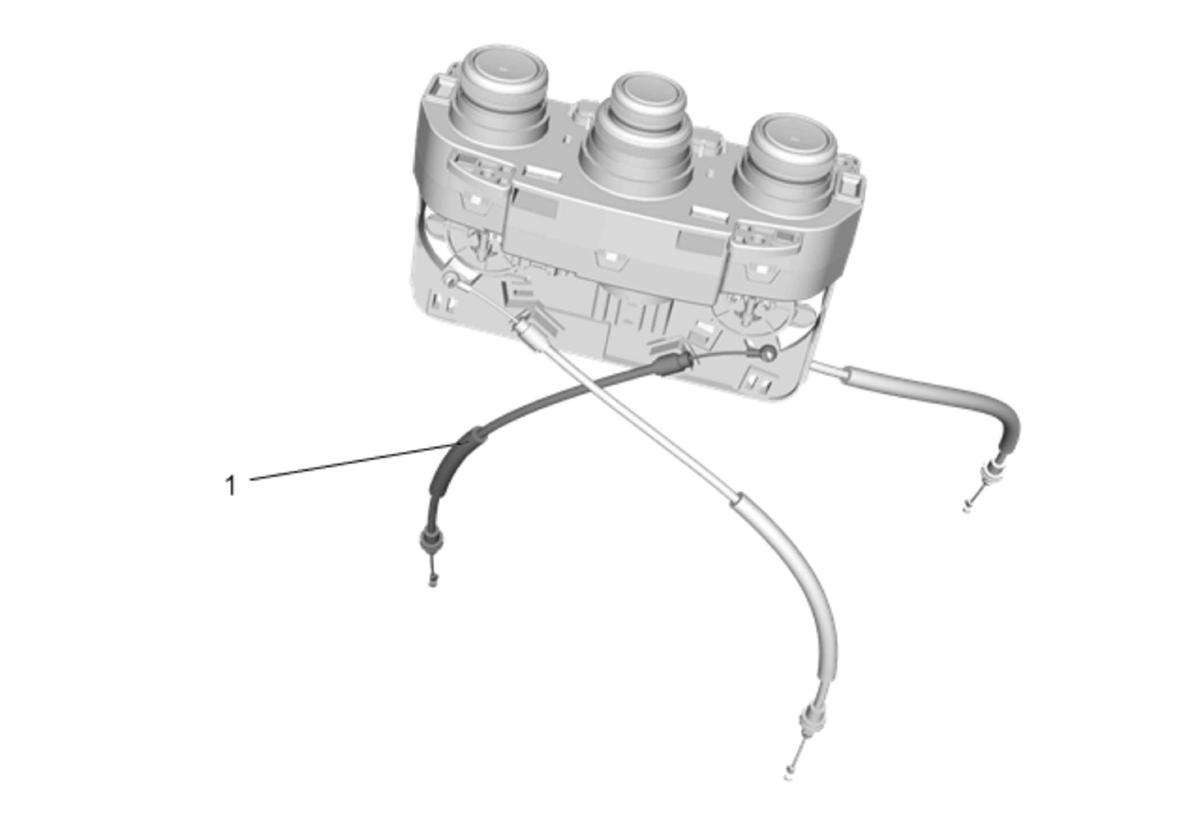

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the heater and air conditioning control with cable control. Refer to Heater and Air Conditioning Control with Cable Control Replacement . |
|
| 1 | Mode Control Cable Procedure Disconnect the cable eyelet from the heater and air conditioning control. |
