Inside Air Valve Actuator Replacement (RHD)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

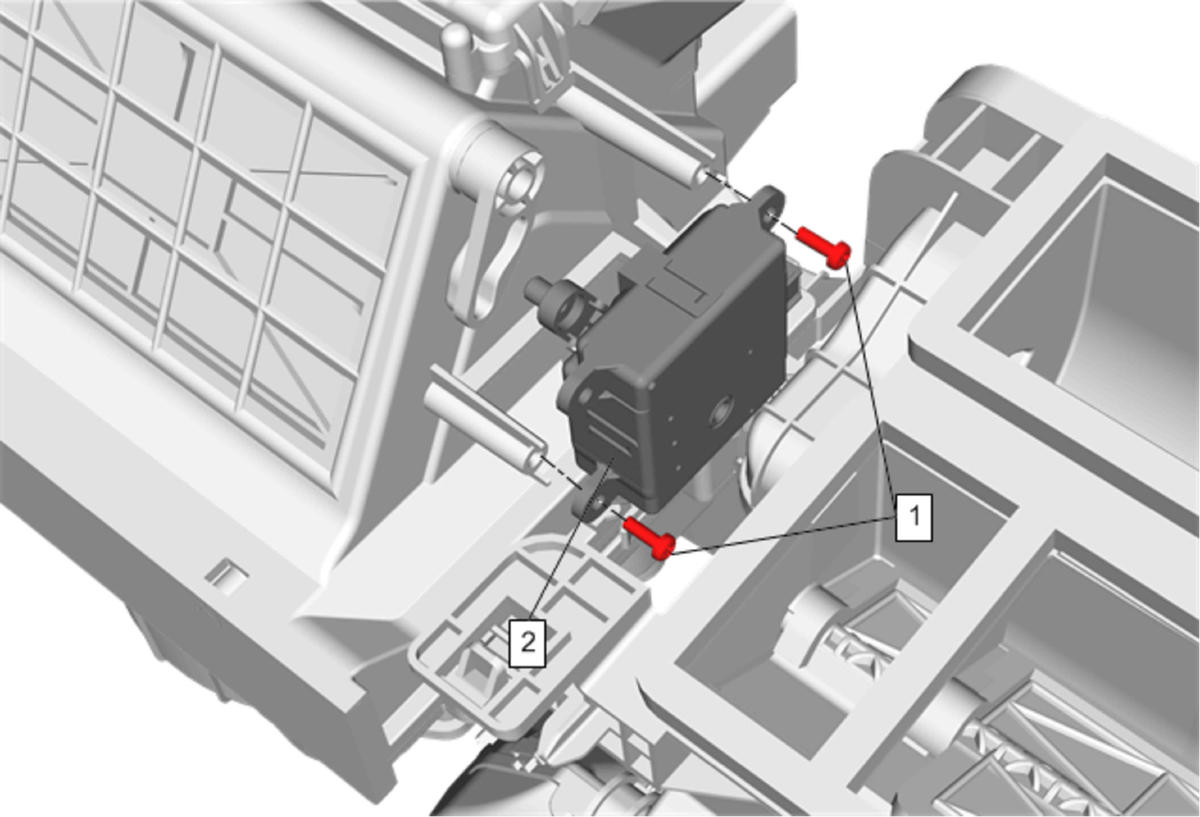

Fig 1: Inside Air Valve Actuator (RHD)

Courtesy of GENERAL MOTORS COMPANY

Call out	Component Name
Preliminary Procedure Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement . Remove the front floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Right Side (Left Hand Drive)Floor Air Outlet Duct Replacement - Right Side (Right Hand Drive) .
1	Inside Air Valve Actuator Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 1.2 N.m (11 lb in)
2	Inside Air Valve Actuator Procedures Disconnect the electrical connector. After repairs, disconnect and reconnect the negative battery cable for auto calibration of the actuator.

Call out

Component Name

Preliminary Procedure

Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
Remove the front floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Right Side (Left Hand Drive)Floor Air Outlet Duct Replacement - Right Side (Right Hand Drive) .

Inside Air Valve Actuator Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten
1.2 N.m (11 lb in)

Inside Air Valve Actuator

Procedures

Disconnect the electrical connector.
After repairs, disconnect and reconnect the negative battery cable for auto calibration of the actuator.
