Mode, Recirculation and Left Air Temperature Doors (C68)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

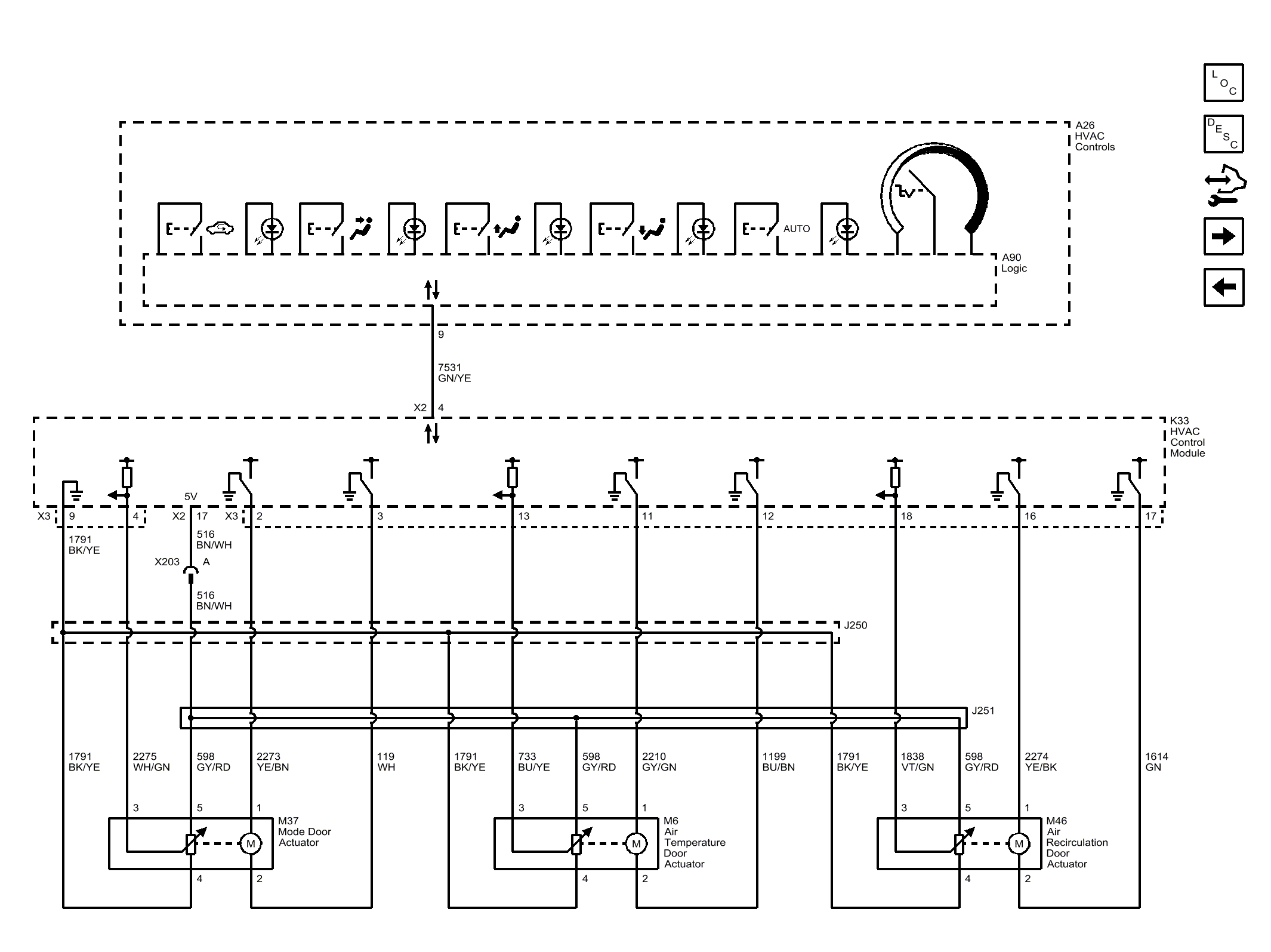

Fig 1: Mode, Recirculation and Left Air Temperature Doors (C68)
GM4322558Courtesy of GENERAL MOTORS COMPANY
