Compressor Controls (C68)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

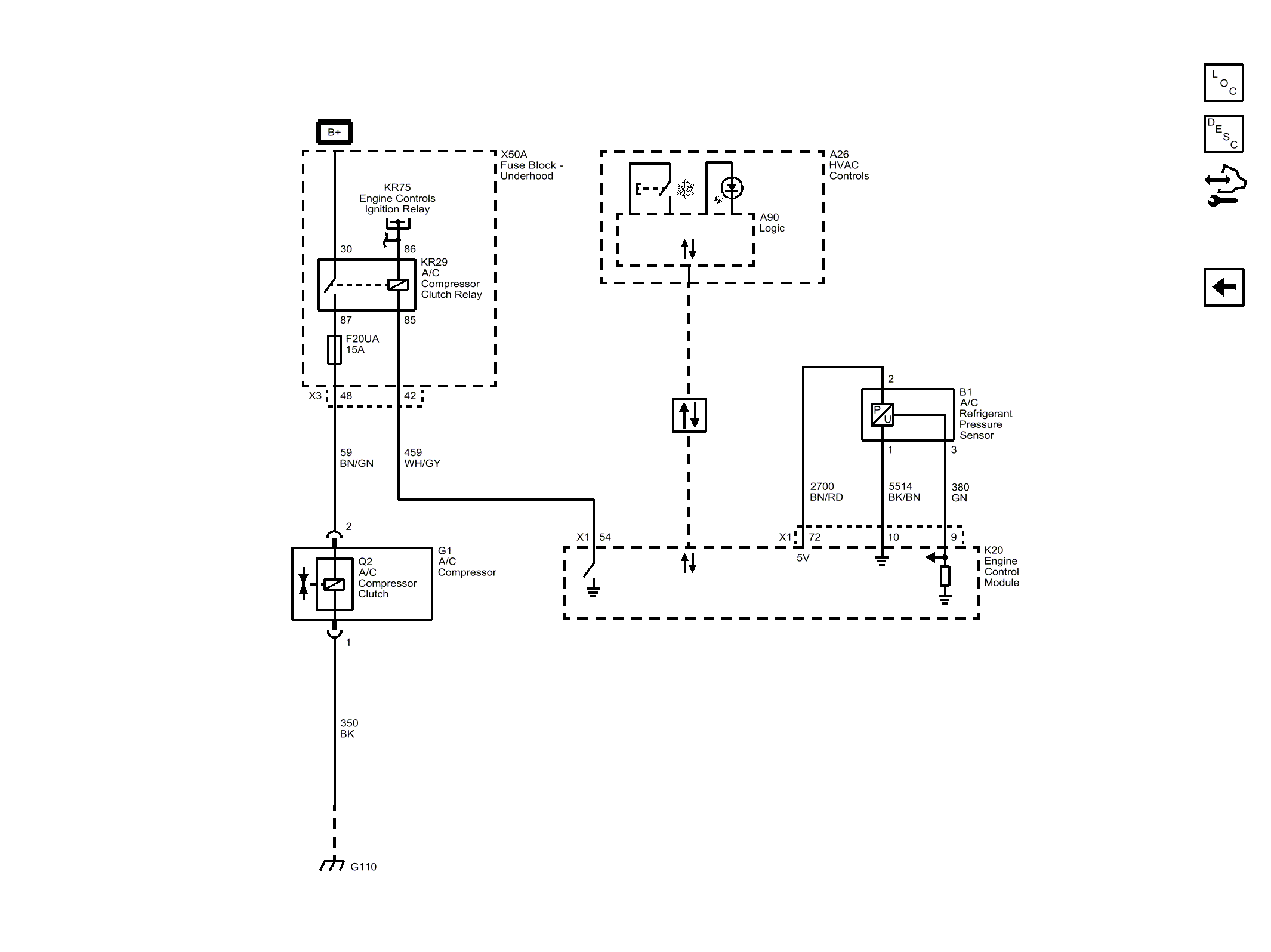

Fig 1: Compressor Controls (C68)
GM4322561Courtesy of GENERAL MOTORS COMPANY
