Temperature Valve Actuator Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

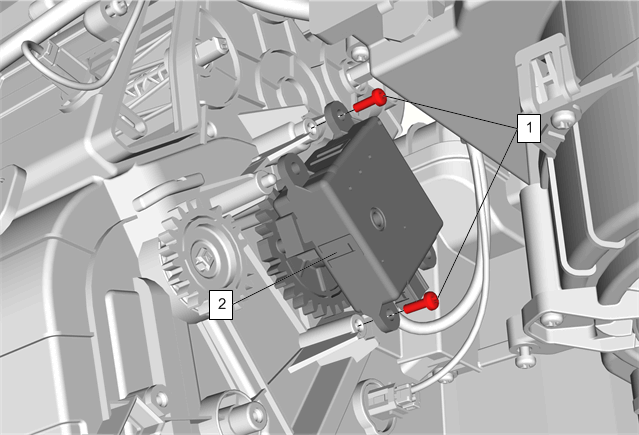

Fig 1: Temperature Valve Actuator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement . Remove the front floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Right Side (Left Hand Drive)Floor Air Outlet Duct Replacement - Right Side (Right Hand Drive) .
1	Temperature Valve Actuator Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 1.2 N.m (11 lb in)
2	Temperature Valve Actuator Procedures Disconnect the electrical connector. After repairs, disconnect and reconnect the negative battery cable for auto calibration of the actuator

Callout

Component Name

Preliminary Procedure

Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
Remove the front floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Right Side (Left Hand Drive)Floor Air Outlet Duct Replacement - Right Side (Right Hand Drive) .

Temperature Valve Actuator Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten
1.2 N.m (11 lb in)

Temperature Valve Actuator

Procedures

Disconnect the electrical connector.
After repairs, disconnect and reconnect the negative battery cable for auto calibration of the actuator
