Sun Load Temperature Sensor Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

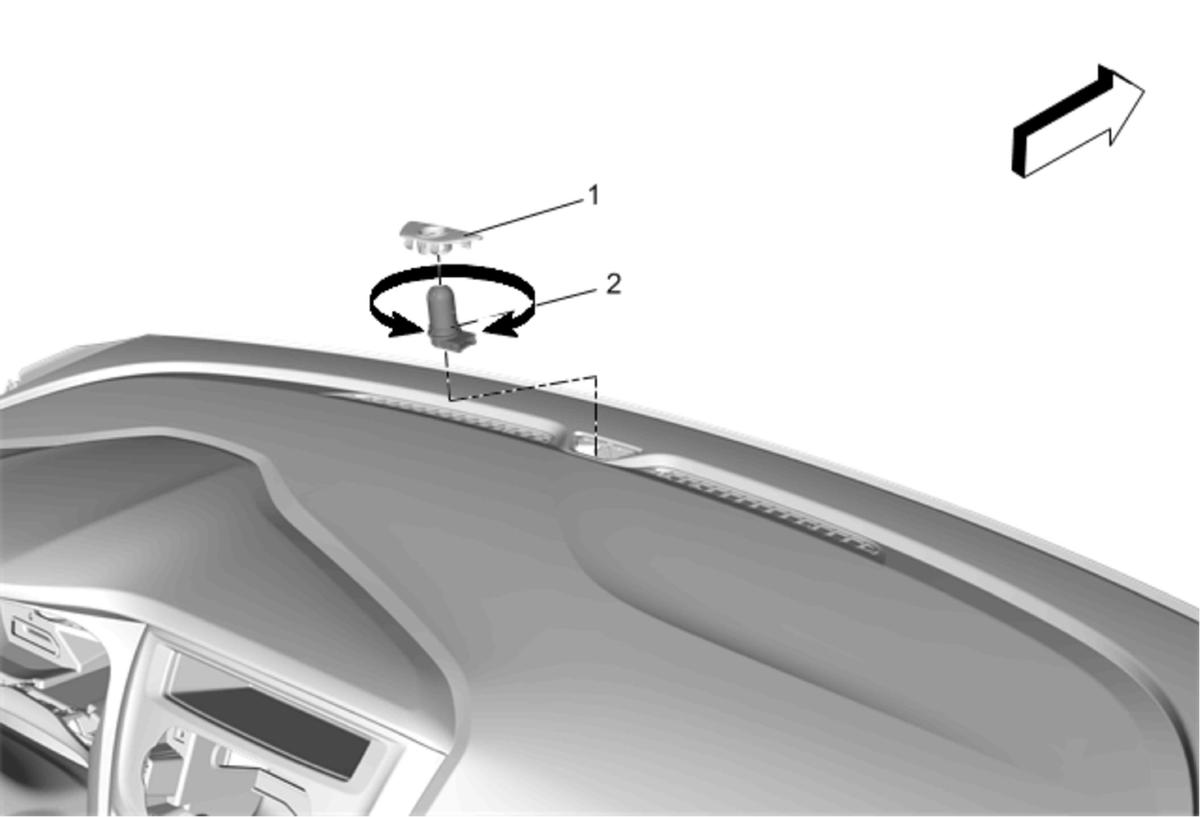

Fig 1: Sun Load Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Daytime Running Lamp Ambient Light Bezel Refer to Daytime Running Lamp Ambient Light Bezel Replacement .
2	Sun Load Temperature Sensor Procedures Disconnect the electrical sun load temperature sensor connector. Turn the sun load temperature sensor quarter of a turn clockwise to remove.

Callout

Component Name

Daytime Running Lamp Ambient Light Bezel
Refer to Daytime Running Lamp Ambient Light Bezel Replacement .

Sun Load Temperature Sensor

Procedures

Disconnect the electrical sun load temperature sensor connector.
Turn the sun load temperature sensor quarter of a turn clockwise to remove.
