Inside Air Valve Actuator Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

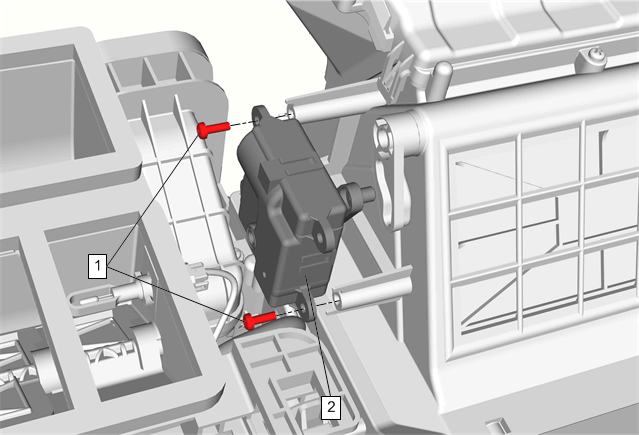

Fig 1: Inside Air Valve Actuator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement . Remove the front floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Right Side (Left Hand Drive)Floor Air Outlet Duct Replacement - Right Side (Right Hand Drive) .
1	Inside Air Valve Actuator Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 1.2 N.m (11 lb in)
2	Inside Air Valve Actuator Procedures Disconnect the electrical connector. After repairs, refer to Actuator Recalibration for programming and set up procedures.

Callout

Component Name

Preliminary Procedures

Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
Remove the front floor air outlet duct. Refer to Floor Air Outlet Duct Replacement - Right Side (Left Hand Drive)Floor Air Outlet Duct Replacement - Right Side (Right Hand Drive) .

Inside Air Valve Actuator Screw (Qty: 2)

CAUTION: Refer to Fastener Caution .

Tighten
1.2 N.m (11 lb in)

Inside Air Valve Actuator

Procedures

Disconnect the electrical connector.
After repairs, refer to Actuator Recalibration for programming and set up procedures.
