Inside Air Moisture and Windshield Temperature Sensor Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

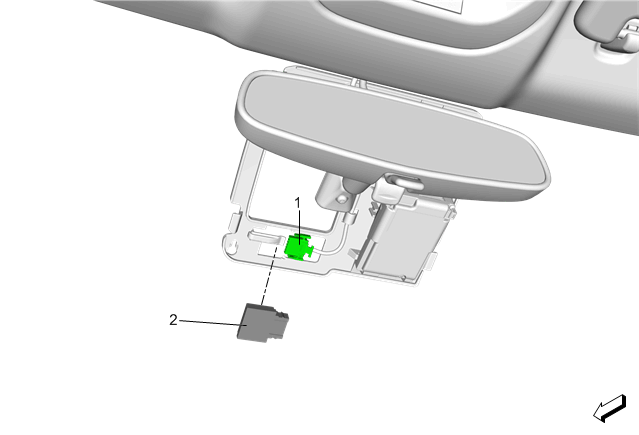

Fig 1: Inside Air Moisture And Windshield Temperature Sensor
GM4116364Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the inside rearview mirror wiring harness cover. Refer to Inside Rearview Mirror Wiring Harness Cover Replacement .
1 Inside Air Moisture and Windshield Temperature Sensor Connector
2 Inside Air Moisture and Windshield Temperature Sensor

Procedure

  1. Release the sensor from the retainer on the windshield.
  2. Disconnect the electrical connections.
