Evaporator Air Temperature Sensor Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

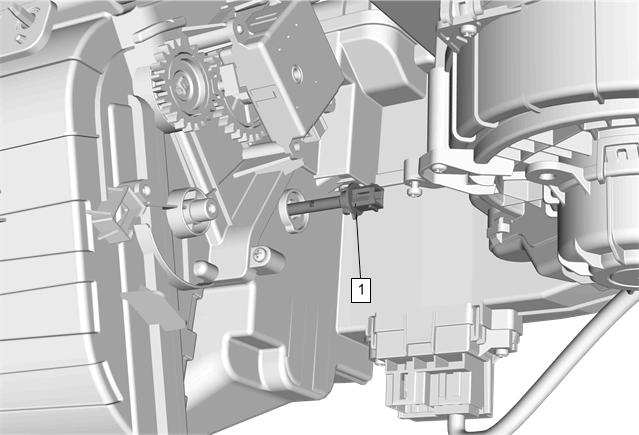

Fig 1: Evaporator Air Temperature Sensor
GM4051851Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Evaporator Air Temperature Sensor

Procedure

  1. Disconnect the electrical connector.
  2. Rotate the inside air temperature sensor to remove.
