Blower Motor Control Module Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

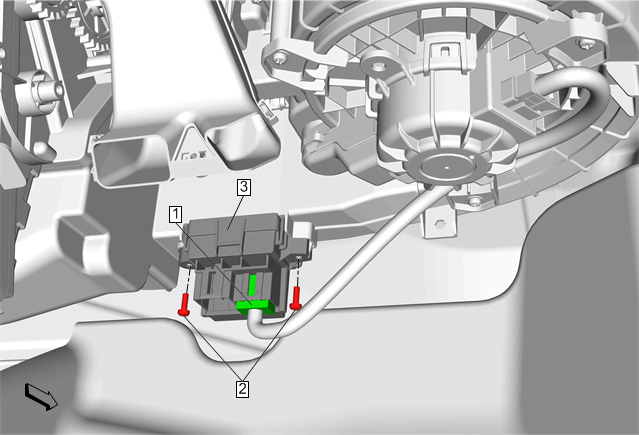

| Callout | Component Name |
|---|---|
| 1 | Blower Motor Control Module Connector Procedure Disconnect the blower motor control module connector. |
| 2 | Blower Motor Control Module Fastener (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
|
| 3 | Blower Motor Control Module |
