Rear Seat Cushion Hinge Pivot Replacement (60/40)
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

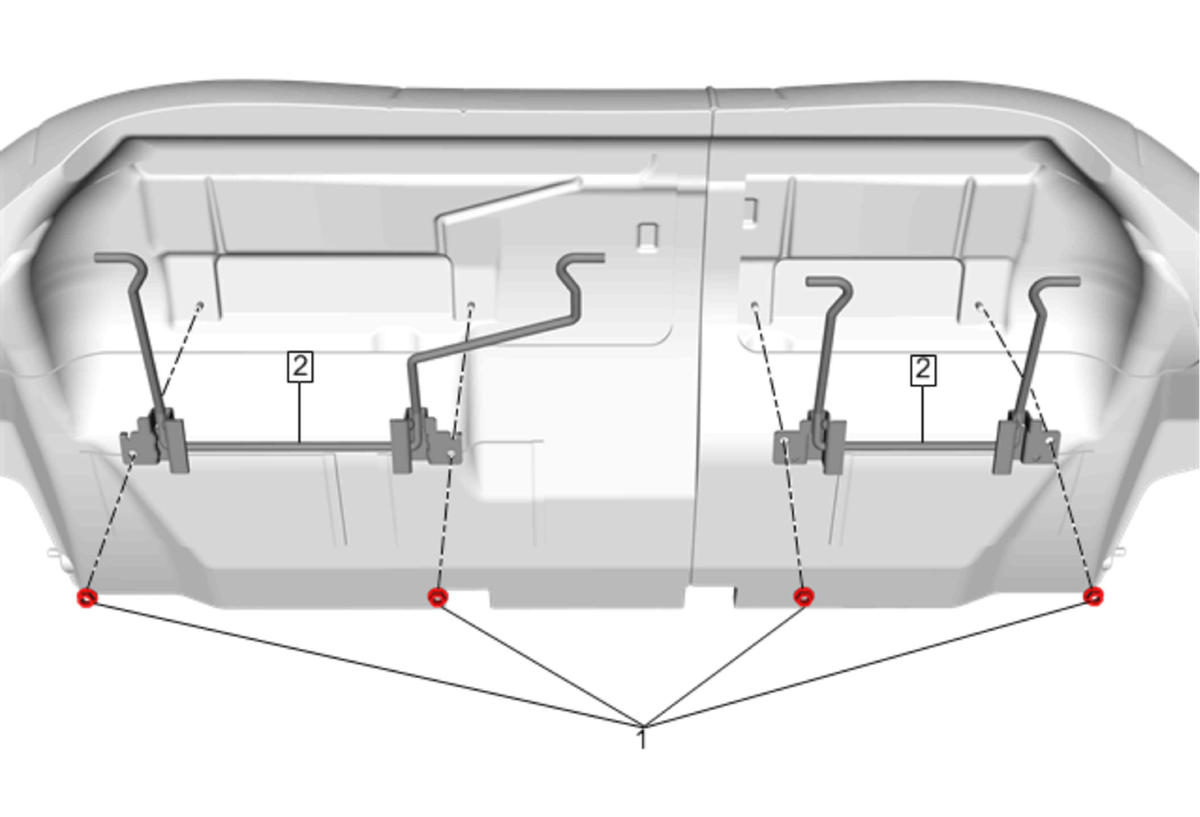

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear seat. Refer to Rear Seat Cushion Removal and Installation (60 Percent Seat) Rear Seat Cushion Removal and Installation (40 Percent Seat) . |
|
| 1 | Rear Seat Cushion Hinge Pivot Nut (Qty: 4)
CAUTION:
Refer to Fastener Caution
. Tighten 30.5 N.m (22.5 lb ft) |
| 2 | Rear Seat Cushion Hinge Pivot |
