Front Seat Armrest Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

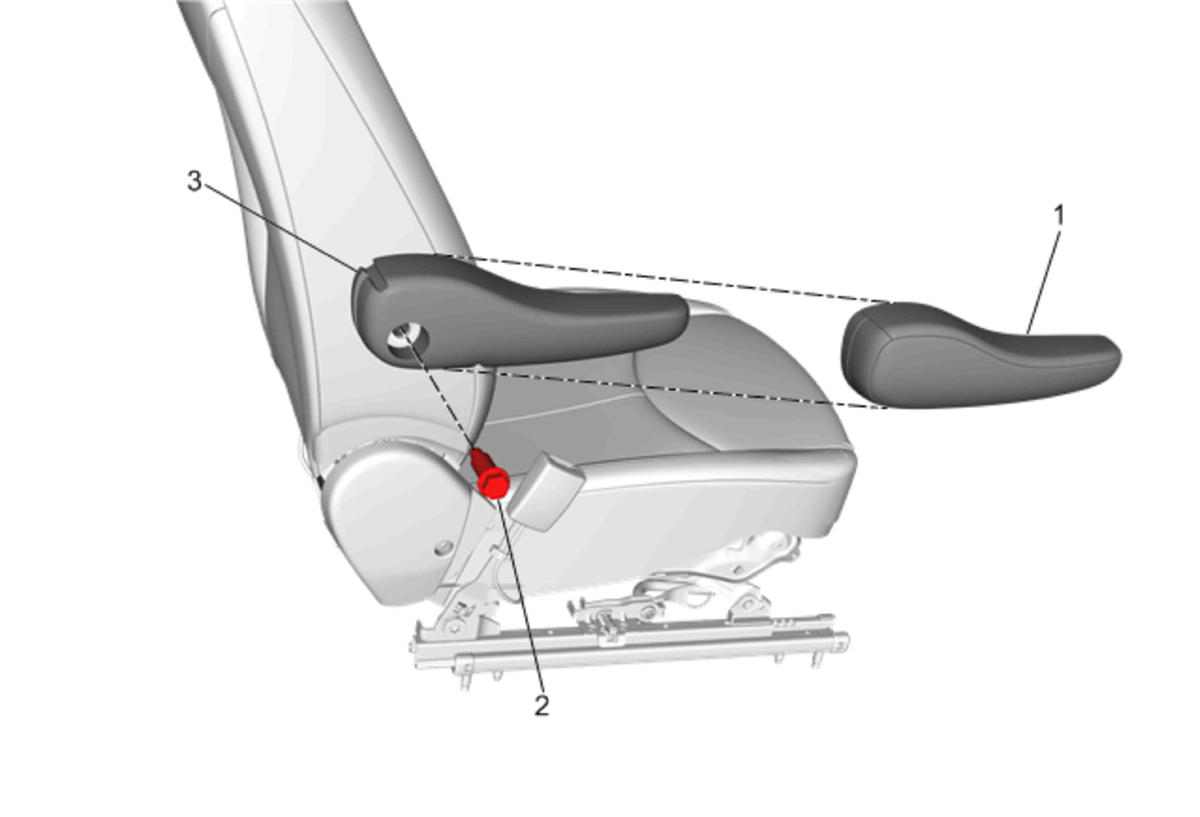

| Callout | Component Name |
|---|---|
| 1 | Front Seat Armrest Cover |
| 2 | Front Seat Armrest Mounting Bolt (Qty: 1)
CAUTION:
Refer to Fastener Caution
. Tighten 45 N.m (33 lb ft) |
| 3 | Front Seat Armrest Assembly |
