Driver or Passenger Seat Back Cushion Frame Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

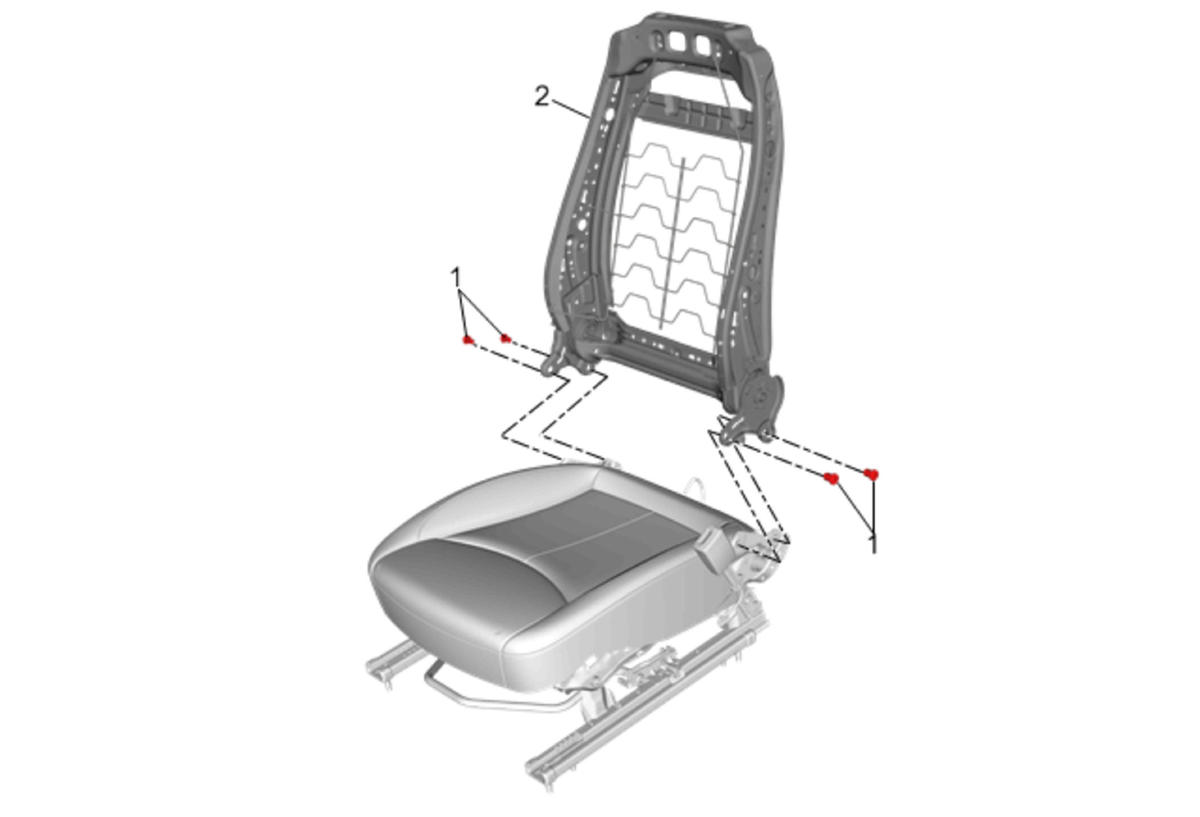

Fig 1: Driver or Passenger Seat Back Cushion Frame

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation . Remove the front seat inner trim panel. Refer to Front Seat Cushion Inner Trim Panel Replacement . Remove the front seat outer trim panel. Refer to Front Seat Cushion Outer Trim Panel Replacement . Remove the driver or passenger seat back cover and pad. Refer to the Driver or Passenger Seat Back Cover and Pad Replacement . Remove the inflatable restraint side impact module. Refer to Front Seat Outboard Seat Back Airbag Replacement .
1	Driver or Passenger Seat Back Cushion Frame Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 35 N.m (26 lb ft)
2	Driver or Passenger Seat Back Cushion Frame Disconnect electrical connectors as needed. If replacing with a new front seat back cushion frame, transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Remove the front seat. Refer to Driver or Passenger Seat Removal and Installation .
Remove the front seat inner trim panel. Refer to Front Seat Cushion Inner Trim Panel Replacement .
Remove the front seat outer trim panel. Refer to Front Seat Cushion Outer Trim Panel Replacement .
Remove the driver or passenger seat back cover and pad. Refer to the Driver or Passenger Seat Back Cover and Pad Replacement .
Remove the inflatable restraint side impact module. Refer to Front Seat Outboard Seat Back Airbag Replacement .

Driver or Passenger Seat Back Cushion Frame Bolt (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten
35 N.m (26 lb ft)

Driver or Passenger Seat Back Cushion Frame

Disconnect electrical connectors as needed.
If replacing with a new front seat back cushion frame, transfer components as necessary.
