Liftgate Latch Striker Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

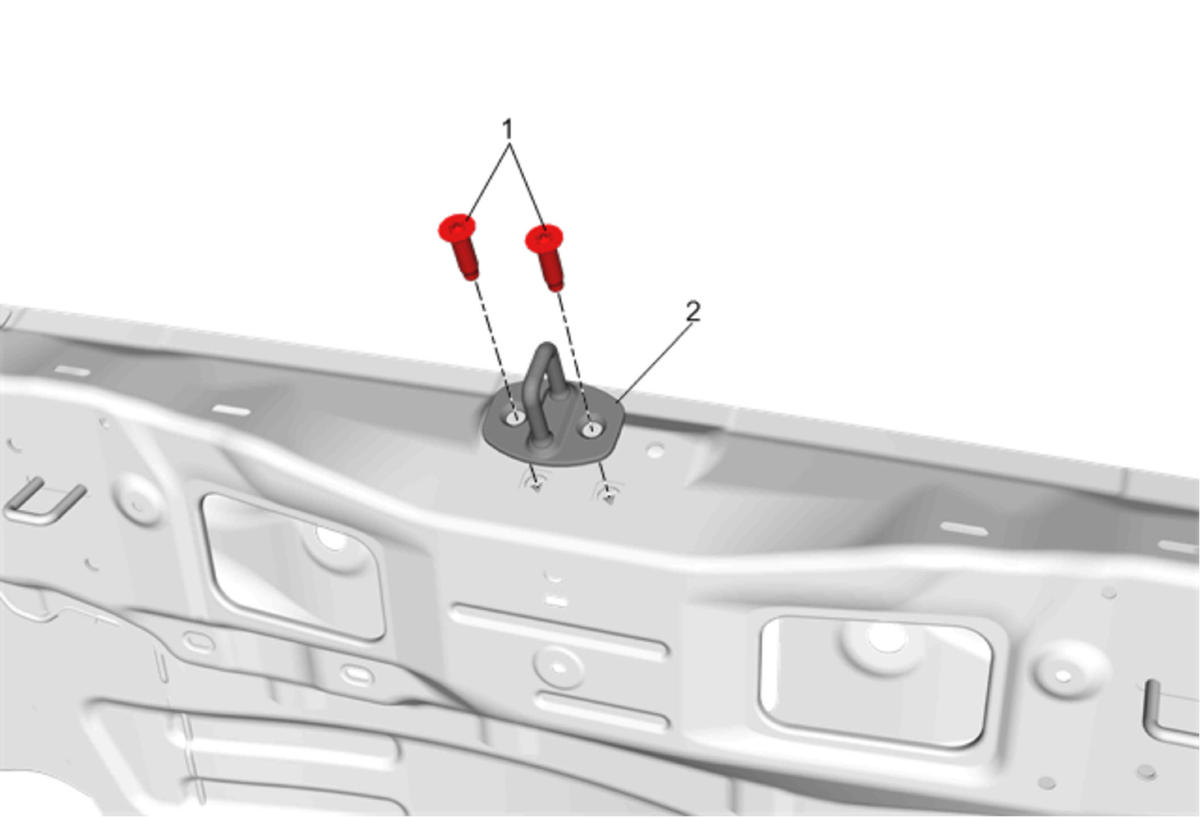

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the liftgate sill garnish molding. Refer to Liftgate Sill Garnish Molding Replacement . |
|
| 1 | Liftgate Latch Striker Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 20 N.m (15 lb ft) |
| 2 | Liftgate Latch Striker Procedure Disconnect the lock cable. |
