Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

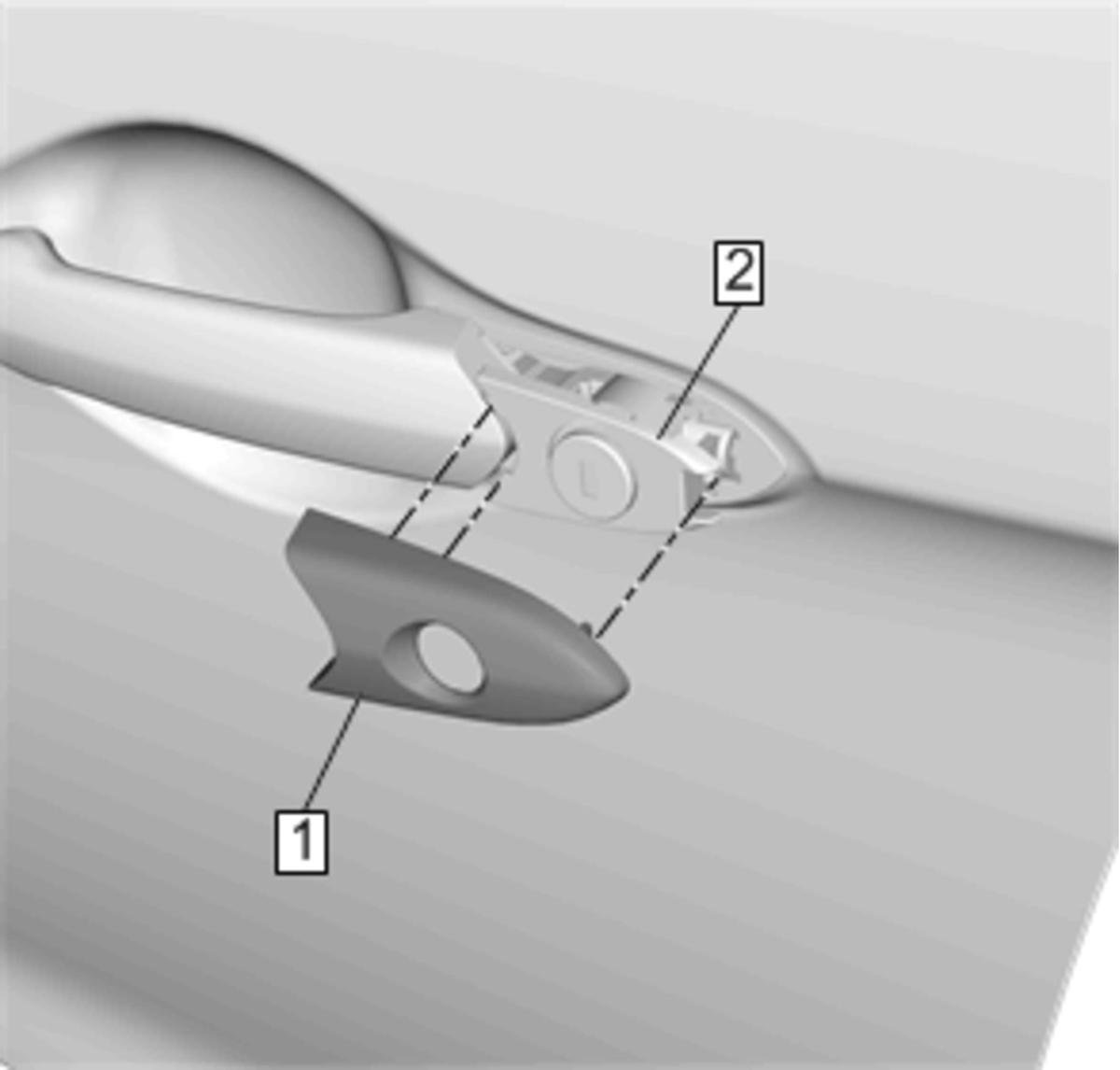

    Fig 1: Front Side Door Lock Cylinder And Bezel
    GM4757069Courtesy of GENERAL MOTORS COMPANY
  1. Install the front side door lock cylinder bezel (1) to the front side door lock cylinder (2).

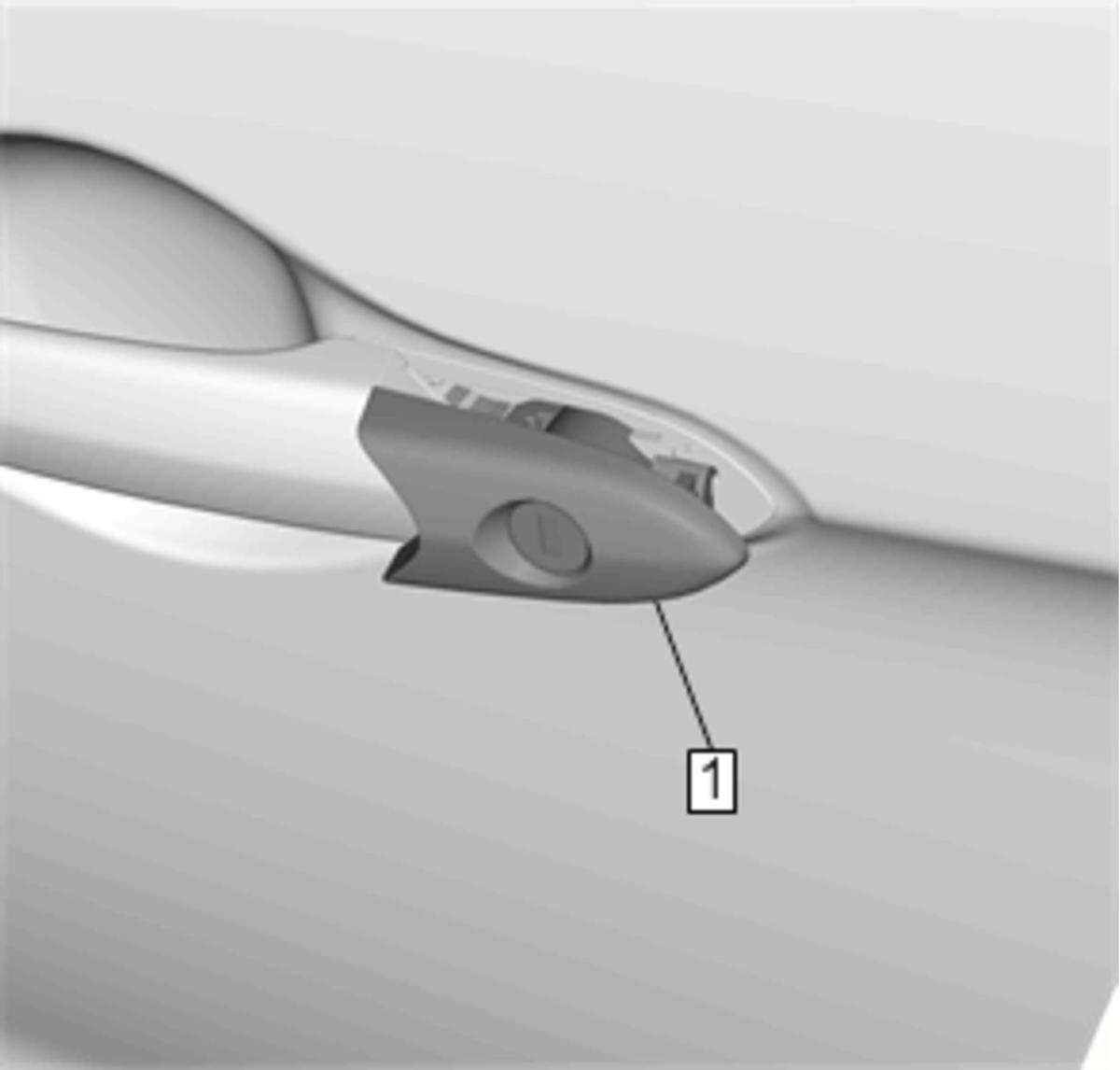

    2. Fig 2: Front Side Door Cylinder And Bezel Assembly
    GM4757068Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Ensure that the lock cylinder gasket is in place when installing the lock cylinder to the handle.

  2. Install the front side door lock cylinder and bezel assembly (1) to the front side door handle.

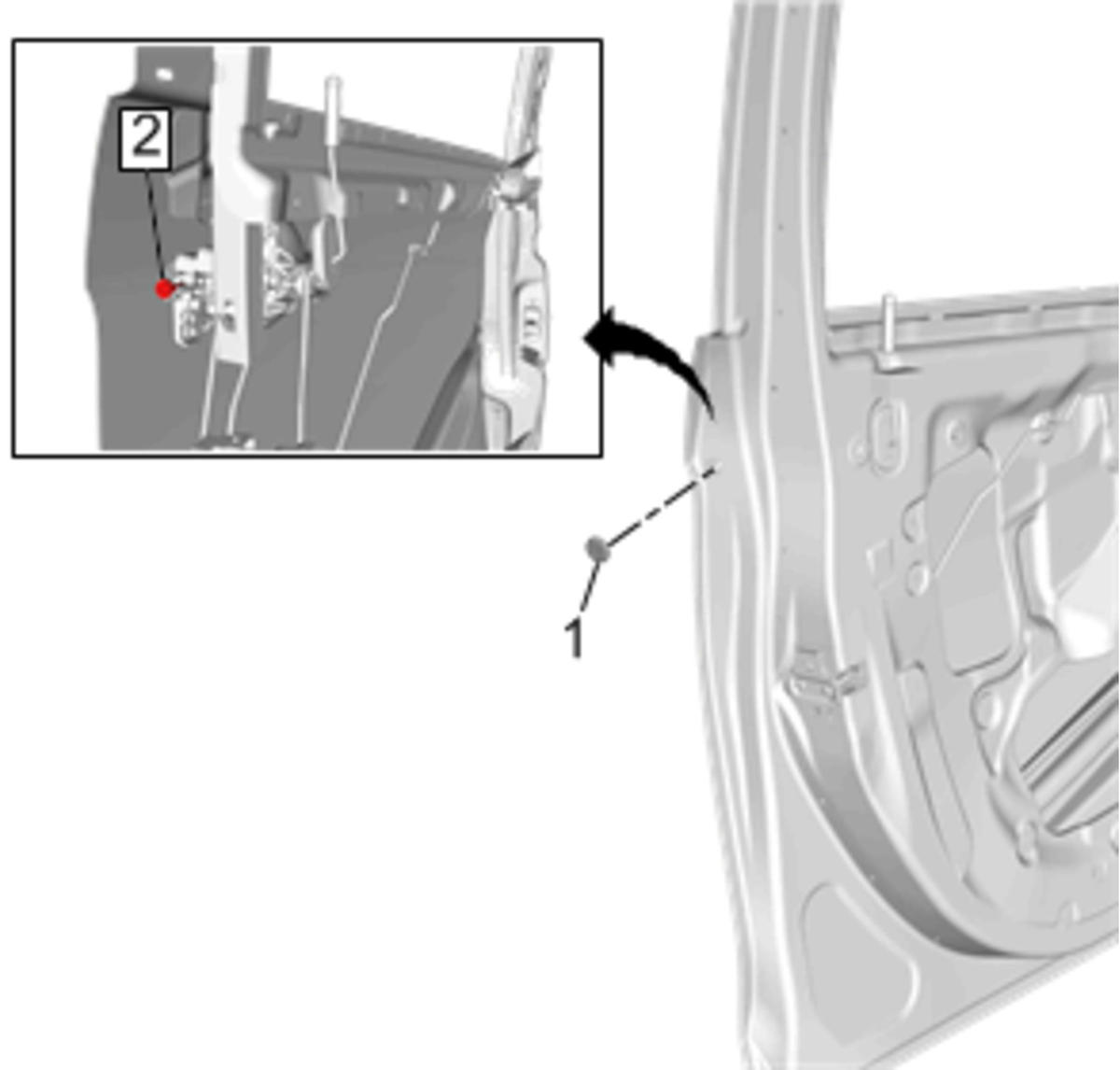

    3. Fig 3: Front Side Door Lock Cylinder Screw Access Plug And Cylinder Clamp Screw
    GM4025073Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the front side door lock cylinder clamp screw (2) and tighten to 4.5 N.m (40 lb in).
  4. Install the front side door lock cylinder screw access plug (1).
  5. Inspect the lock cylinder for proper operation.
