Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
  3. Detach the rear wheel speed sensor harness from the body frame mounted bracket (1).

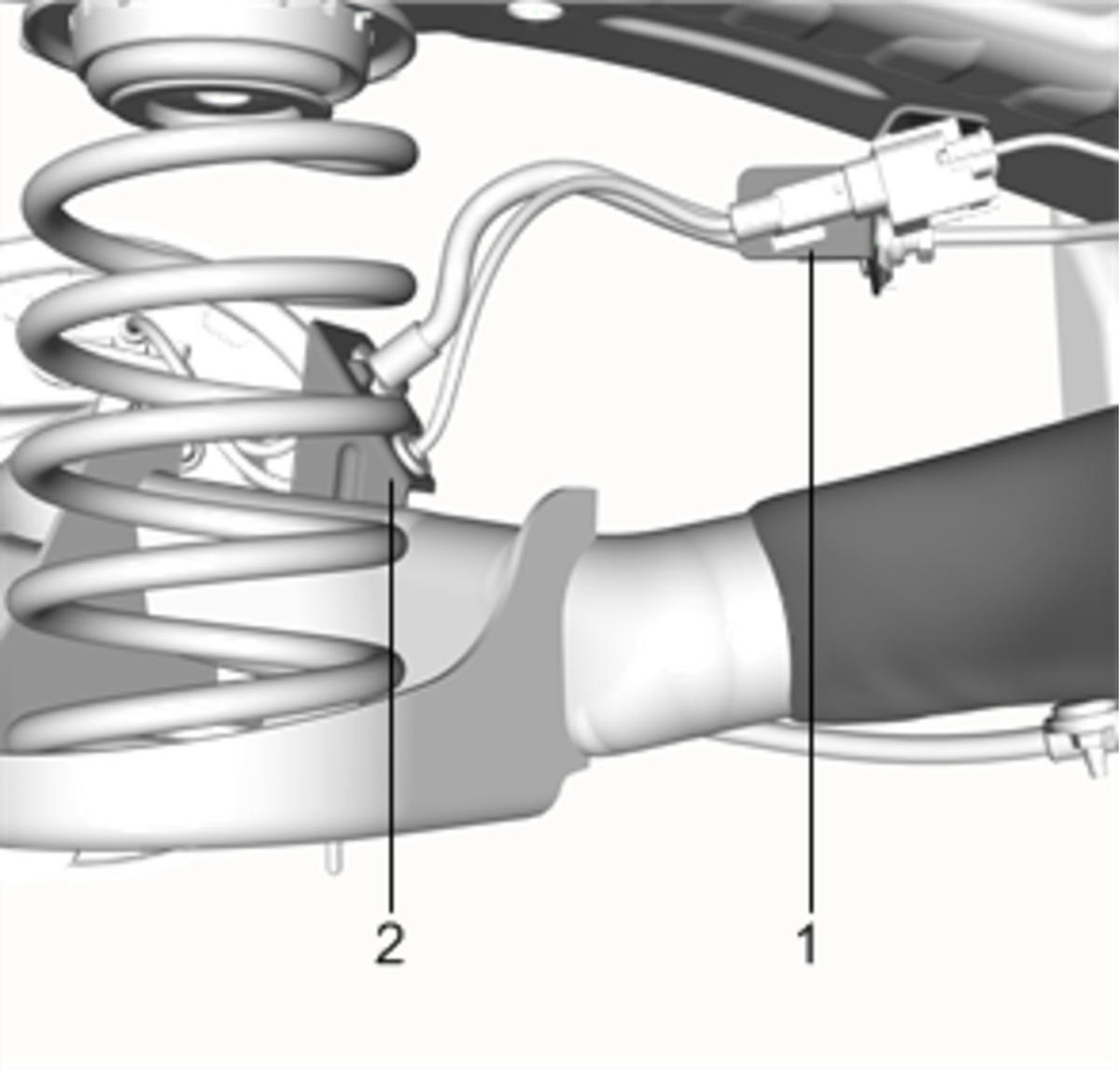

    Fig 1: Body Frame Mounted Bracket And Rear Axle Mounted Bracket
    GM3998915Courtesy of GENERAL MOTORS COMPANY
  4. Detach the rear wheel speed sensor harness from the rear axle mounted bracket (2).
  5. Disconnect the rear wheel speed sensor electrical connector (1) from the body wiring harness.

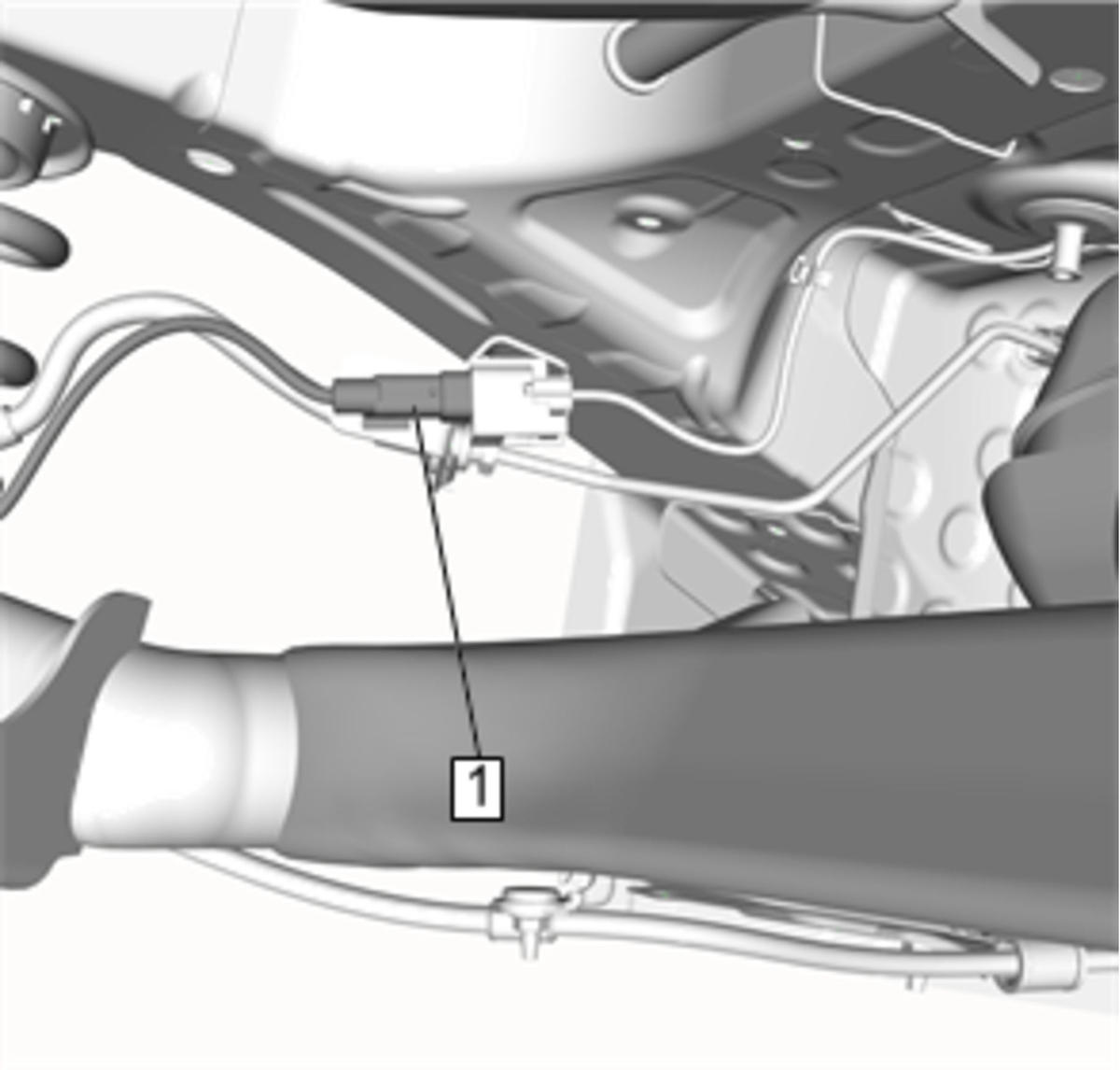

    Fig 2: Rear Wheel Speed Sensor Electrical Connector
    GM3998918Courtesy of GENERAL MOTORS COMPANY
  6. Remove the rear wheel speed sensor bolt (1).

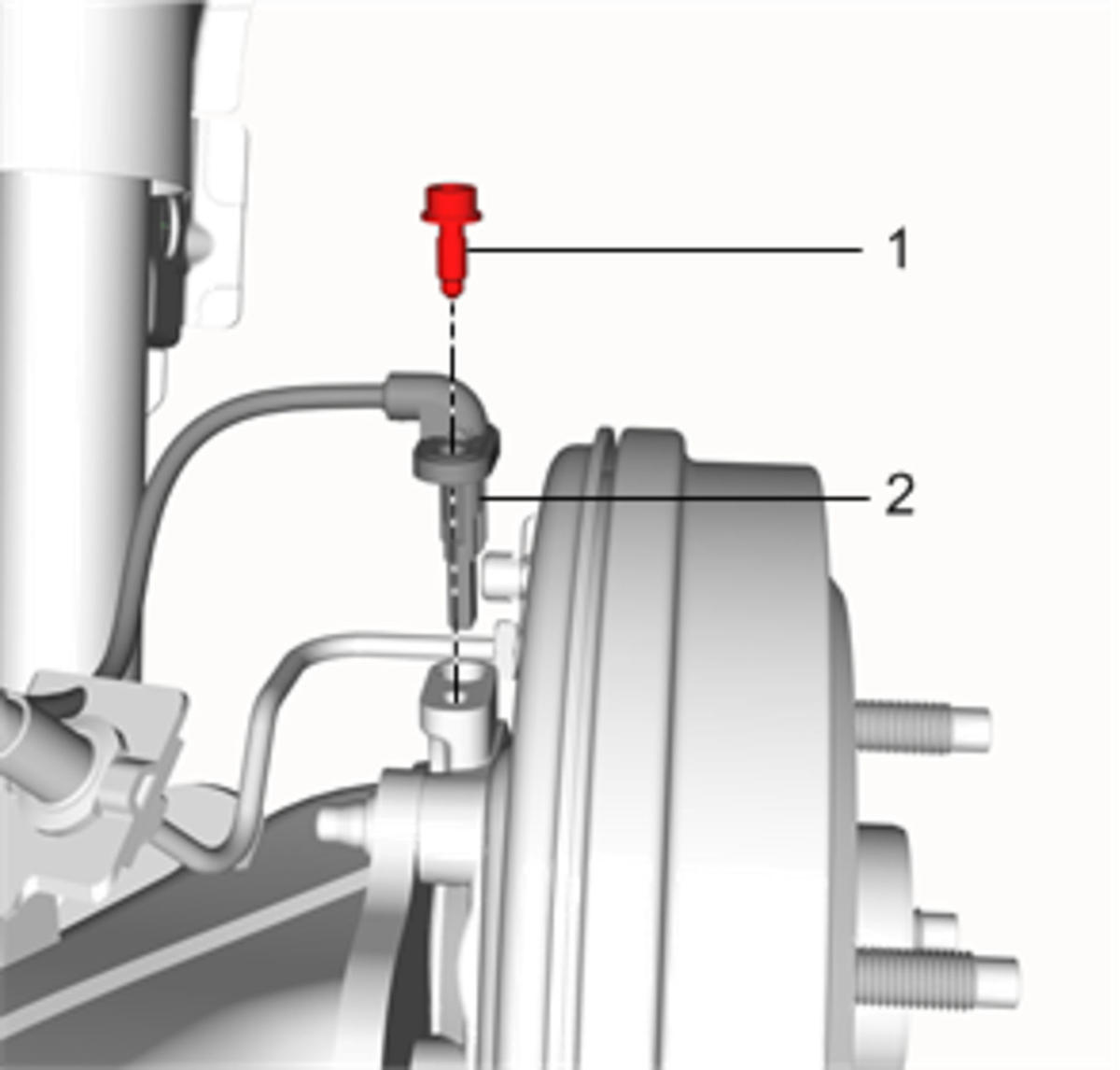

    Fig 3: Rear Wheel Speed Sensor Bolt
    GM3998921Courtesy of GENERAL MOTORS COMPANY
  7. Remove the rear wheel speed sensor (2) from the rear brake backing plate spacer.
