Installation Procedure
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

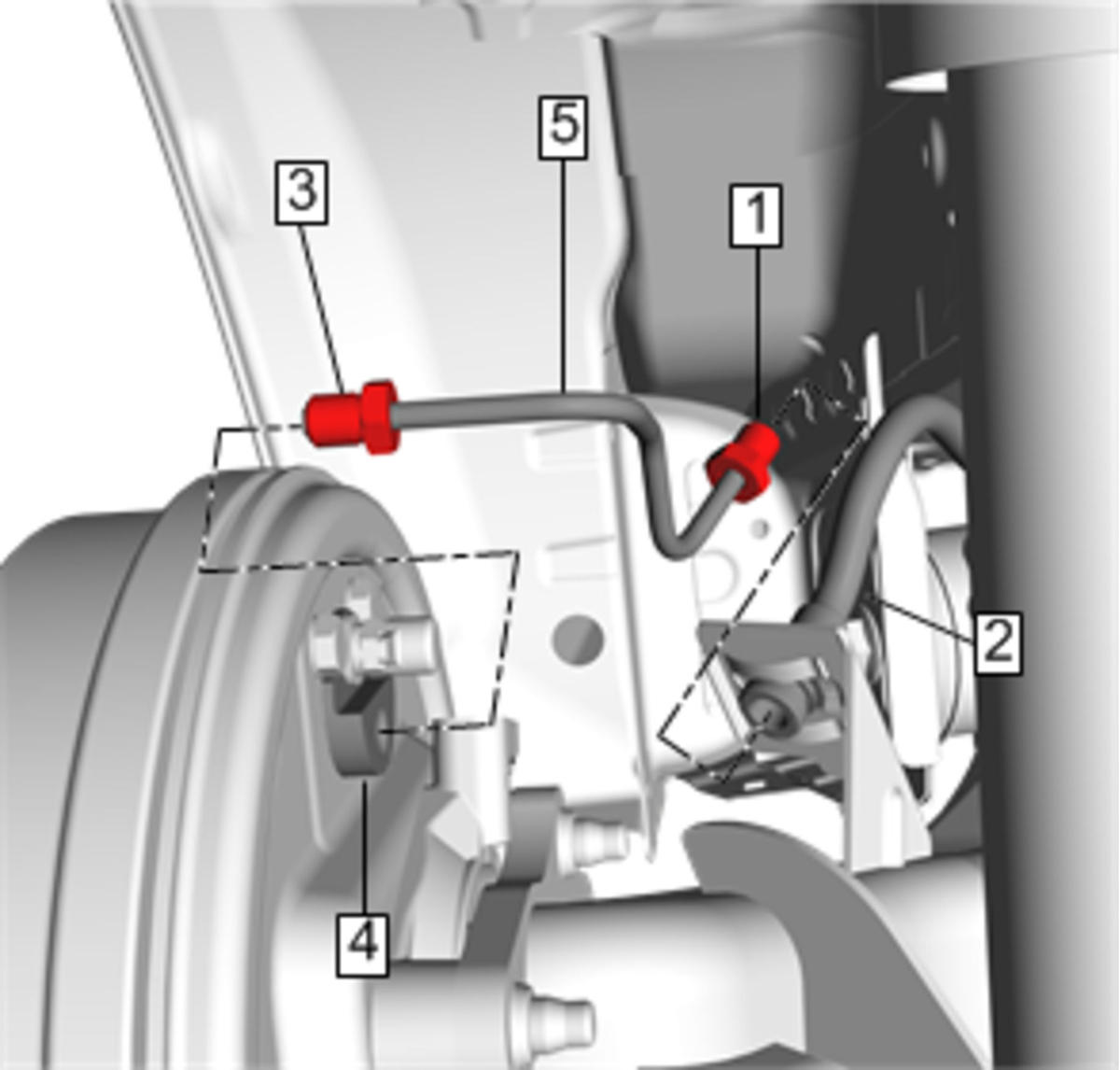

- Install Rear Brake Rear Pipe (5) @ Vehicle
- Install and tighten Rear Brake Rear Pipe Fitting (3) @ Rear Brake Cylinder (4) to 18 N.m (13 lb ft)
- Install and tighten Rear Brake Rear Pipe Fitting (1) @ Rear Brake Hose (2) to 18 N.m (13 lb ft)
- Bleed the brake system. Refer to Hydraulic Brake System Bleeding (Manual) Hydraulic Brake System Bleeding (Pressure)
- Install the rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation
- Lower the vehicle.
CAUTION:
Refer to Fastener Caution .
