Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

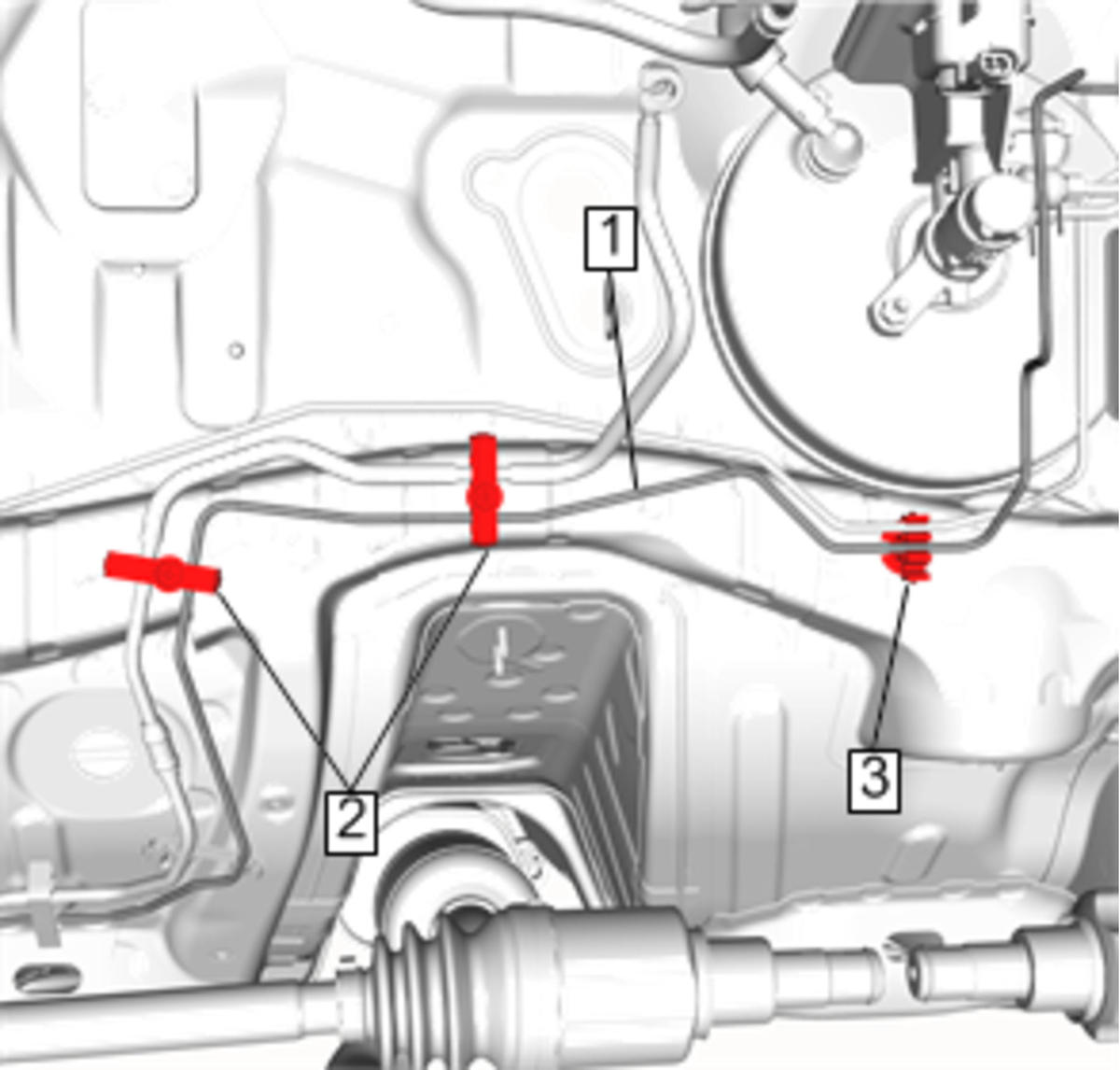

    Fig 1: Rear Brake Pipe And Clips
    GM4747770Courtesy of GENERAL MOTORS COMPANY
  1. Install Rear Brake Pipe (1) @ Vehicle
  2. Install Rear Brake Pipe (1) @ 3 Way Clip (3)
  3. Install Rear Brake Pipe (1) @ Bolted Clips (2) (Qty: 2)

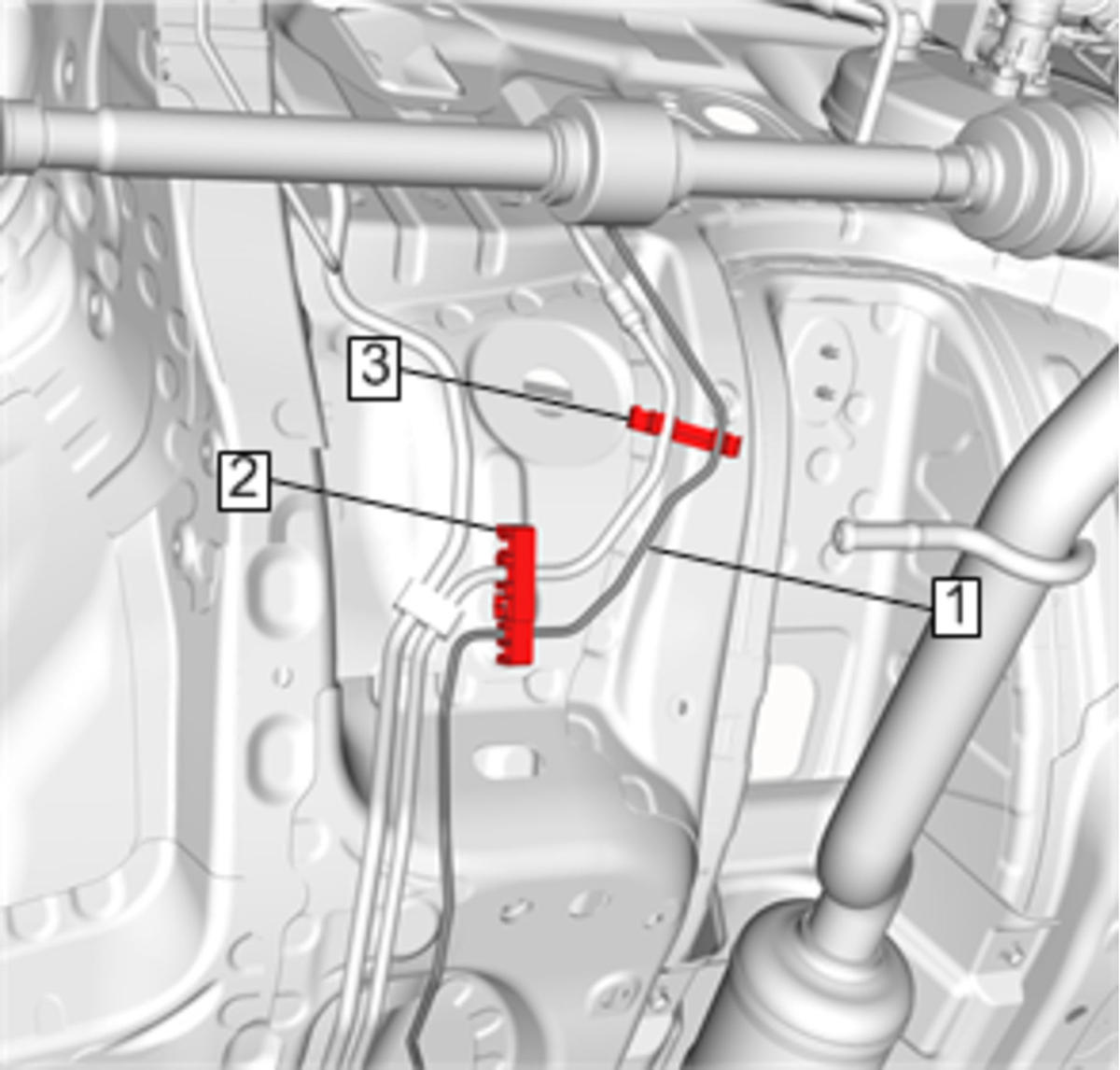

    4. Fig 2: Rear Brake Pipe And Clips
    GM4747769Courtesy of GENERAL MOTORS COMPANY
  4. Install Rear Brake Pipe (1) @ Clip (3)
  5. Install Rear Brake Pipe (1) @ Mounted Clip (2)

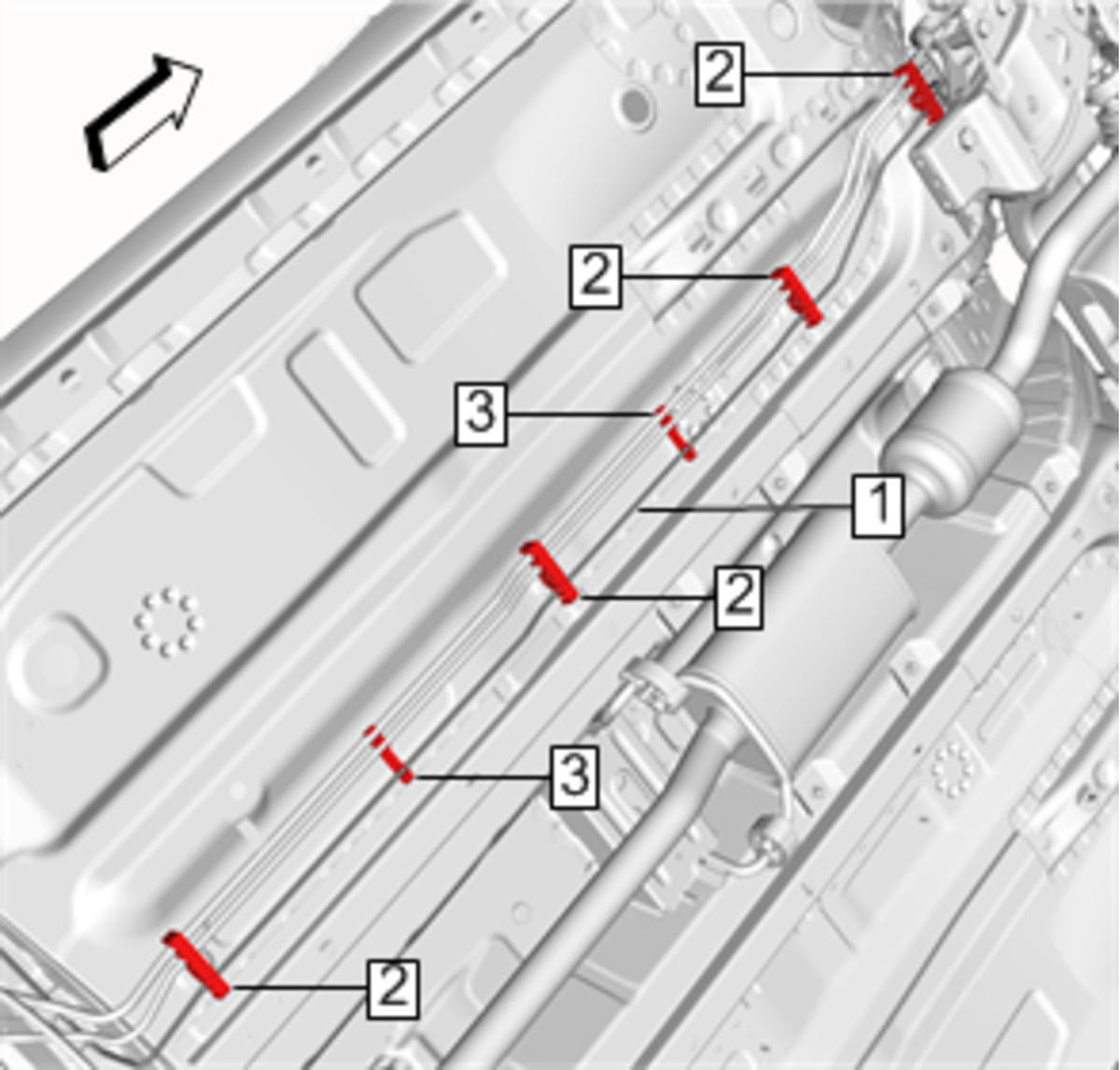

    6. Fig 3: Rear Brake Pipe And Clips
    GM4747768Courtesy of GENERAL MOTORS COMPANY
  6. Install Rear Brake Pipe (1) @ Clips (3) (Qty: 2)
  7. Install Rear Brake Pipe (1) @ Mounted Clips (2) (Qty: 4)

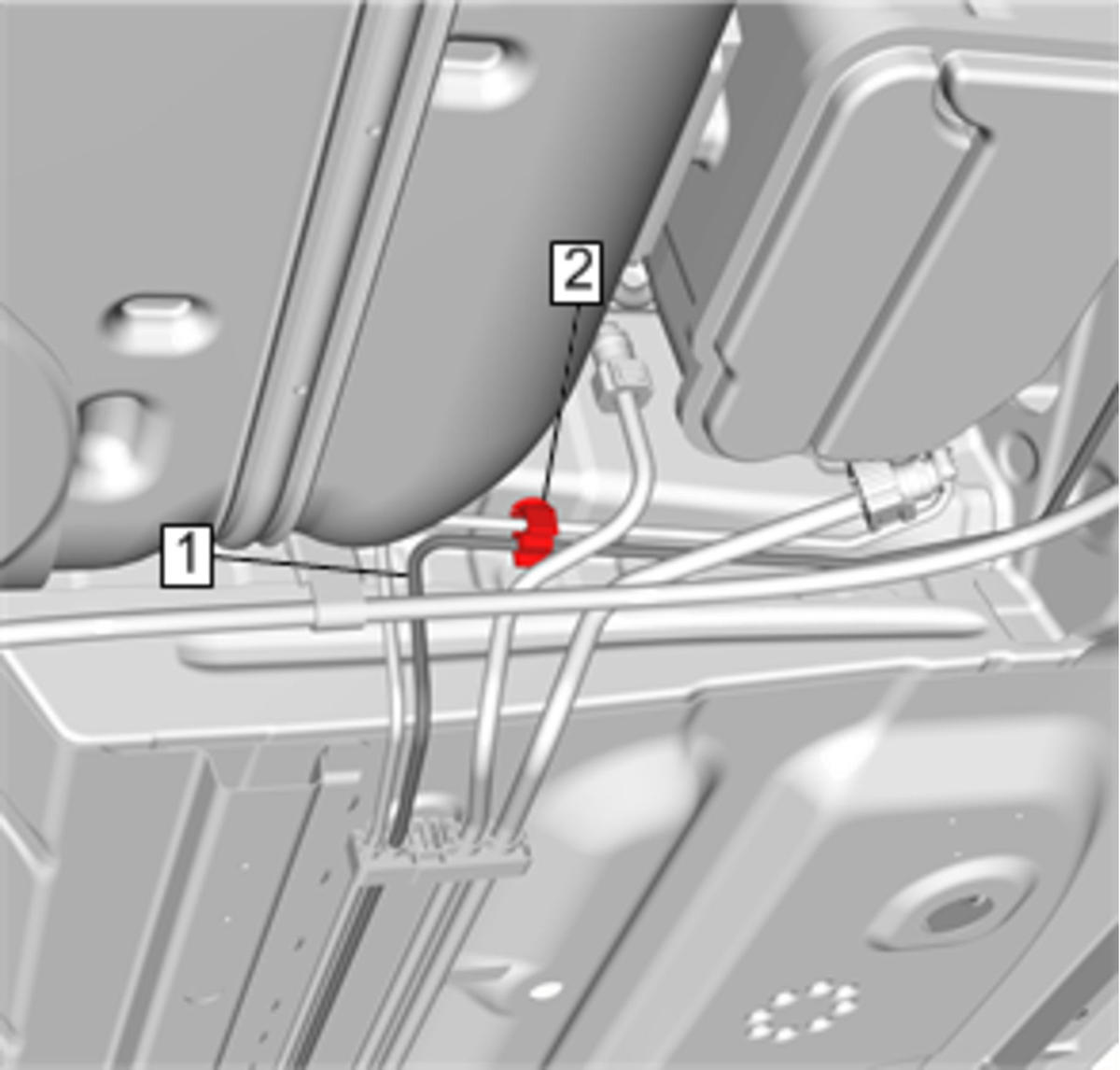

    8. Fig 4: Rear Brake Pipe And 2-Way Clip
    GM4747767Courtesy of GENERAL MOTORS COMPANY
  8. Install Rear Brake Pipe (1) @ 2 Way Clip (2)

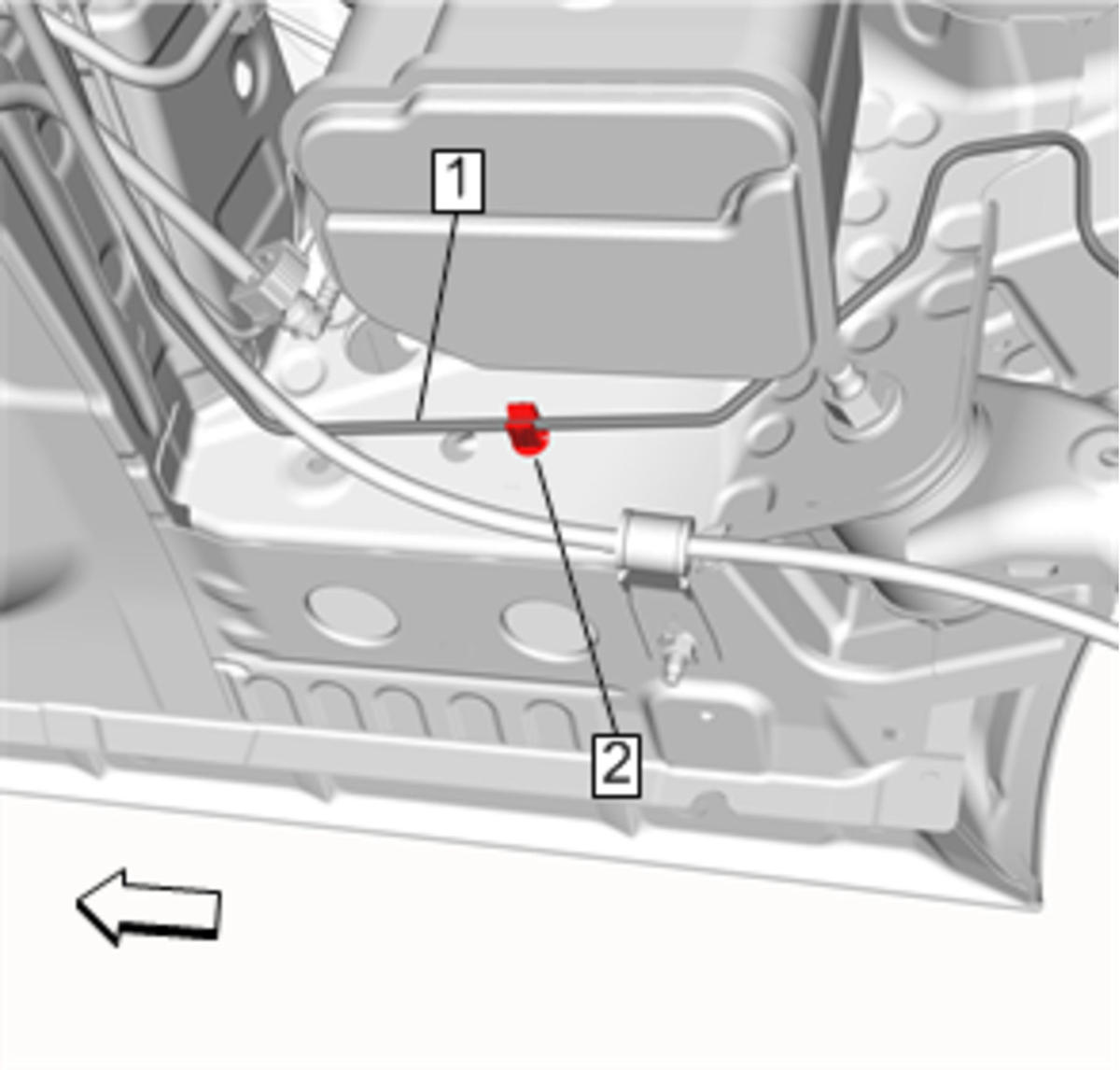

    9. Fig 5: Rear Brake Pipe And 1-Way Clip
    GM4747766Courtesy of GENERAL MOTORS COMPANY
  9. Install Rear Brake Pipe (1) @ 1 Way Clip (2)

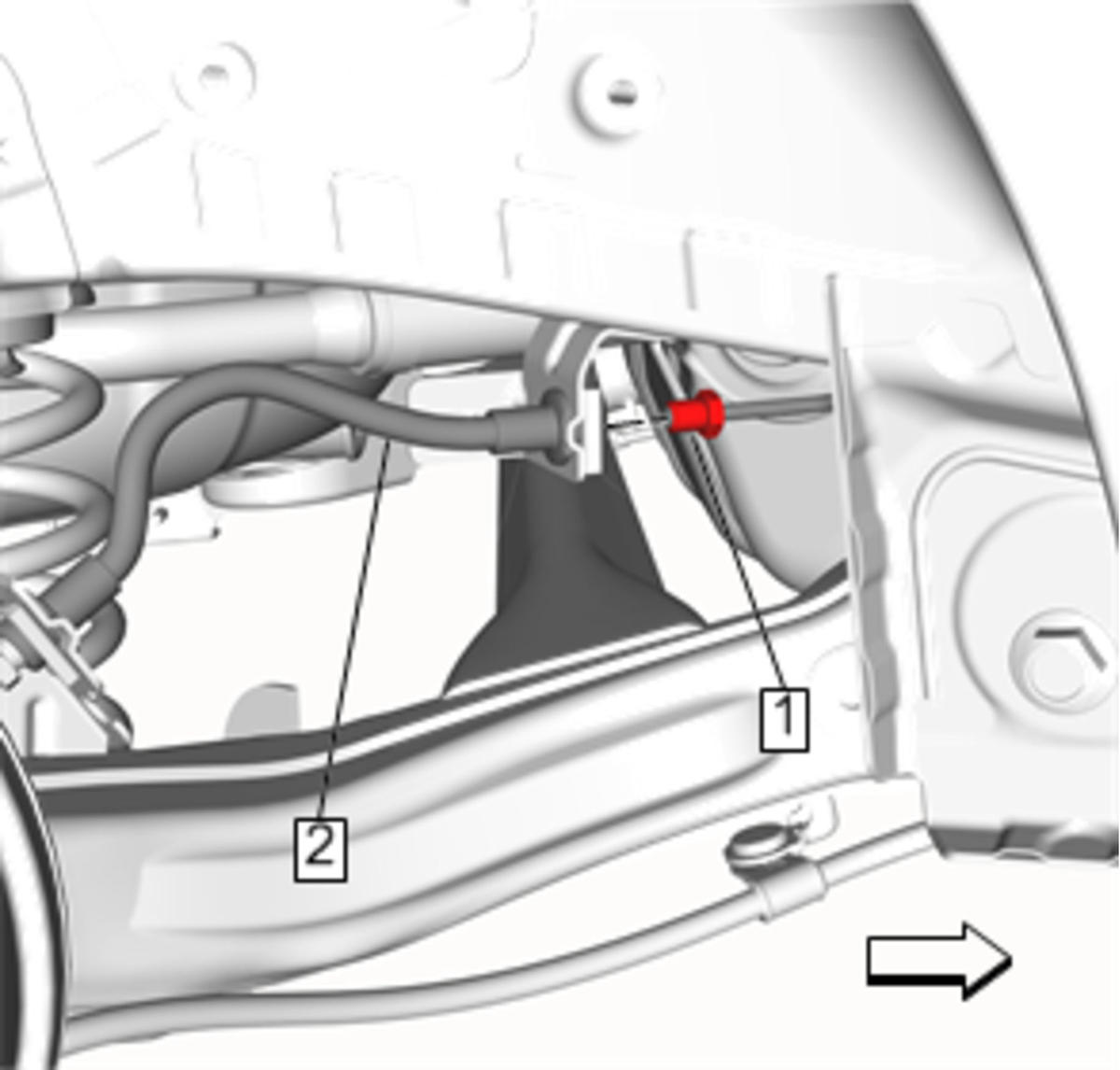

    10. Fig 6: Rear Brake Pipe Fitting And Rear Brake Hose
    GM4747765Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  10. Install and tighten Rear Brake Pipe Fitting (1) @ Rear Brake Hose (2) to 18 N.m (13 lb ft)
  11. Install Evaporative Emission Pipe. Refer to Evaporative Emission Pipe Replacement (L5Q)Evaporative Emission Pipe Replacement (LV7)
  12. Install Fuel Feed Pipe. Refer to Fuel Feed Pipe Replacement - Underbody (L5Q)Fuel Feed Pipe Replacement - Underbody (LV7)
  13. Install Drivetrain and Front Suspension Frame. Refer to Drivetrain and Front Suspension Cradle Replacement

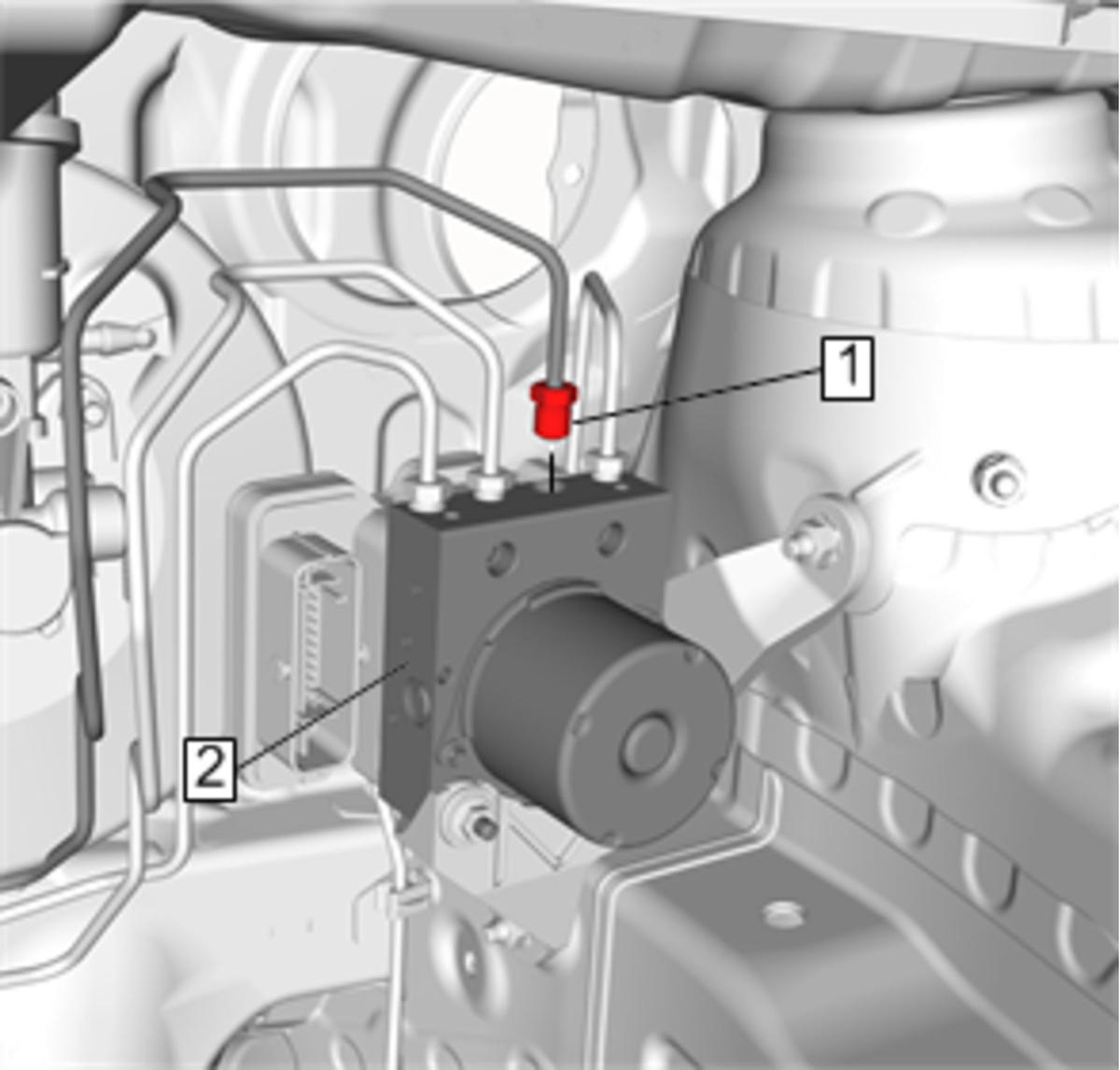

    14. Fig 7: Rear Brake Pipe Fitting And Brake Pressure Modulator Valve
    GM4747764Courtesy of GENERAL MOTORS COMPANY
  14. Install and tighten Rear Brake Pipe Fitting (1) @ Brake Pressure Modulator Valve (2) to 18 N.m (13 lb ft)
  15. Install Brake Pressure Modulator Valve Primary Pipe. Refer to Brake Pressure Modulator Valve Primary Pipe Replacement (LHD) Brake Pressure Modulator Valve Primary Pipe Replacement (RHD)
  16. Install Brake Pressure Modulator Valve Secondary Pipe. Refer to Brake Pressure Modulator Valve Secondary Pipe Replacement (LHD) Brake Pressure Modulator Valve Secondary Pipe Replacement (RHD)
  17. Install Battery Tray. Refer to Battery Tray Replacement (without Engine Block Heater)Battery Tray Replacement (with Engine Block Heater)
  18. Bleed the brake system. Refer to Hydraulic Brake System Bleeding (Manual) Hydraulic Brake System Bleeding (Pressure)
  19. Lower the vehicle.
