Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Refer to Brake Fluid Irritant Warning .

CAUTION:

Refer to Brake Fluid Effects on Paint and Electrical Components Caution .

  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle
  2. Remove Battery Tray. Refer to Battery Tray Replacement (without Engine Block Heater)Battery Tray Replacement (with Engine Block Heater)
  3. Remove Brake Pressure Modulator Valve Secondary Pipe. Refer to Brake Pressure Modulator Valve Secondary Pipe Replacement (LHD) Brake Pressure Modulator Valve Secondary Pipe Replacement (RHD)
  4. Remove Brake Pressure Modulator Valve Primary Pipe. Refer to Brake Pressure Modulator Valve Primary Pipe Replacement (LHD) Brake Pressure Modulator Valve Primary Pipe Replacement (RHD)

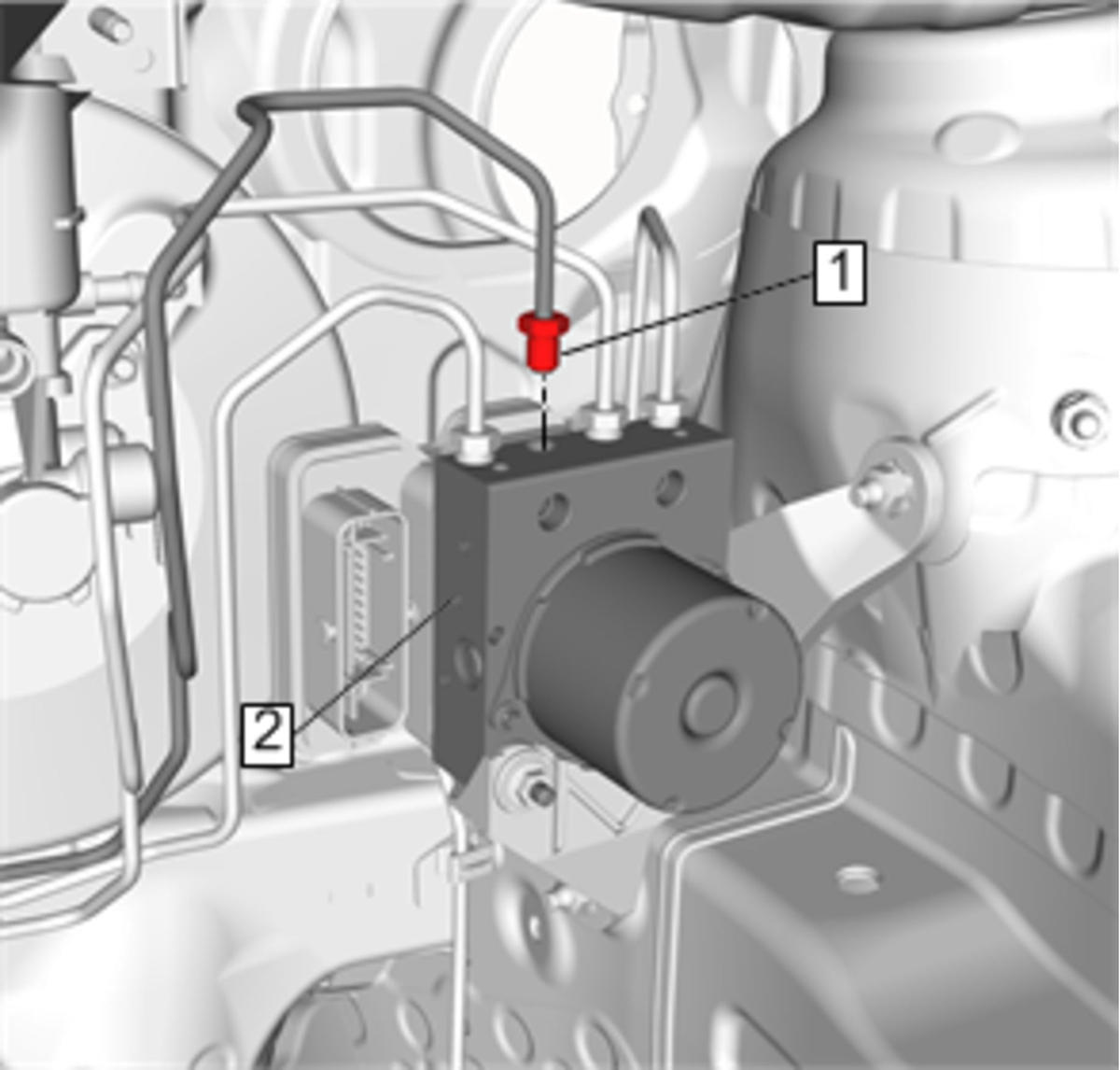

    5. Fig 1: Rear Brake Pipe Fitting And Brake Pressure Modulator Valve
    GM4747757Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Cap the brake pressure modulator valve port to prevent brake fluid loss and contamination.

  5. Remove Rear Brake Pipe Fitting (1) @ Brake Pressure Modulator Valve (2)
  6. Remove Drivetrain and Front Suspension Frame. Refer to Drivetrain and Front Suspension Cradle Replacement .
  7. Remove Fuel Tank. Refer to Fuel Tank Replacement (32L (8.5 US Gallon) Tank)Fuel Tank Replacement (35L (9 US Gallon) Tank)
  8. Remove Fuel Feed Pipe. Refer to Fuel Feed Pipe Replacement - Underbody (L5Q)Fuel Feed Pipe Replacement - Underbody (LV7)
  9. Remove Evaporative Emission Pipe. Refer to Evaporative Emission Pipe Replacement (L5Q)Evaporative Emission Pipe Replacement (LV7)

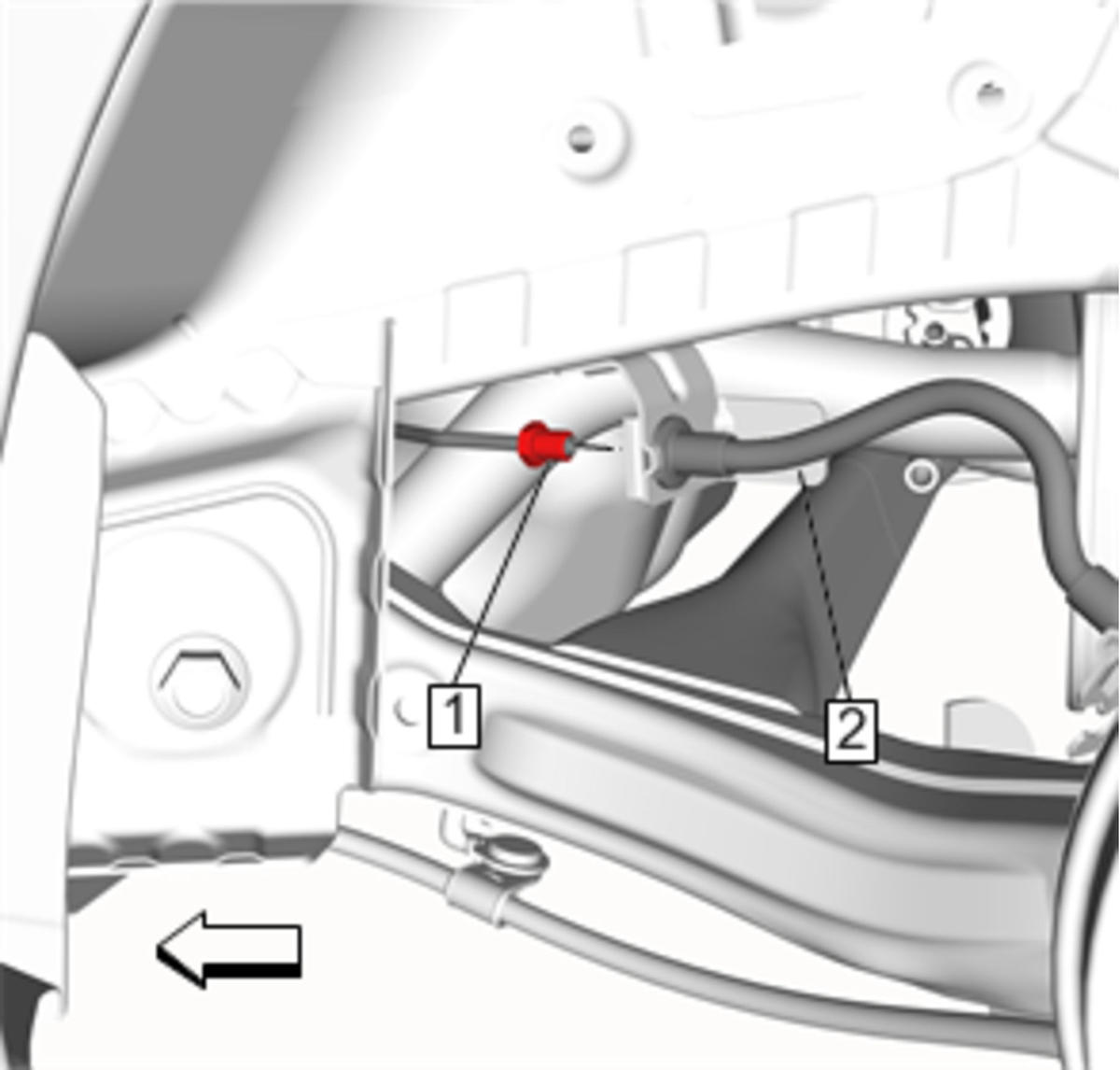

    10. Fig 2: Rear Brake Pipe Fitting And Rear Brake Hose
    GM4747758Courtesy of GENERAL MOTORS COMPANY
  10. Remove Rear Brake Pipe Fitting (1) @ Rear Brake Hose (2)

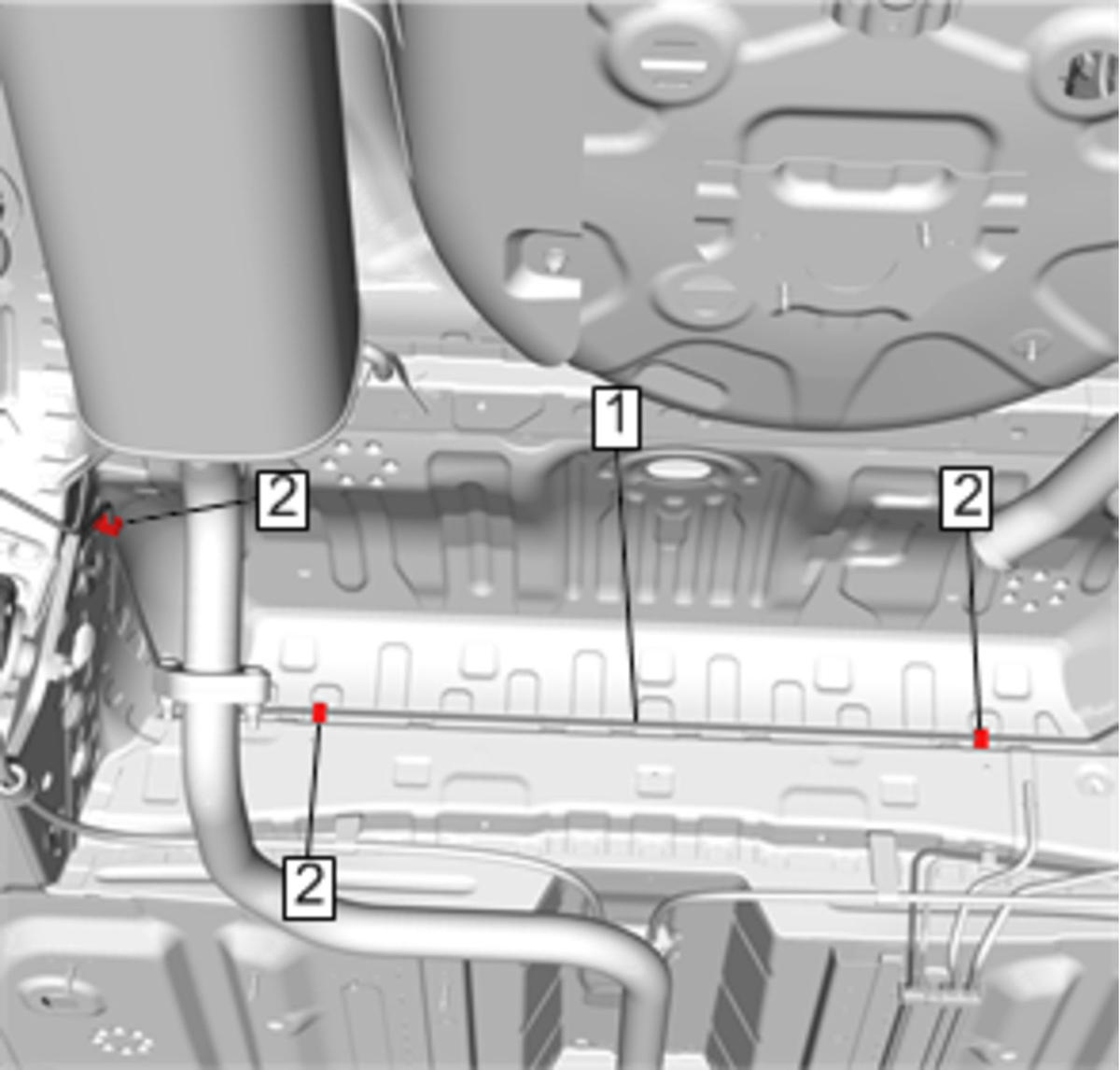

    11. Fig 3: Rear Brake Pipe And 1-Way Clips
    GM4747759Courtesy of GENERAL MOTORS COMPANY
  11. Unclip Rear Brake Pipe (1) @ 1 Way Clips (2) (Qty: 3)

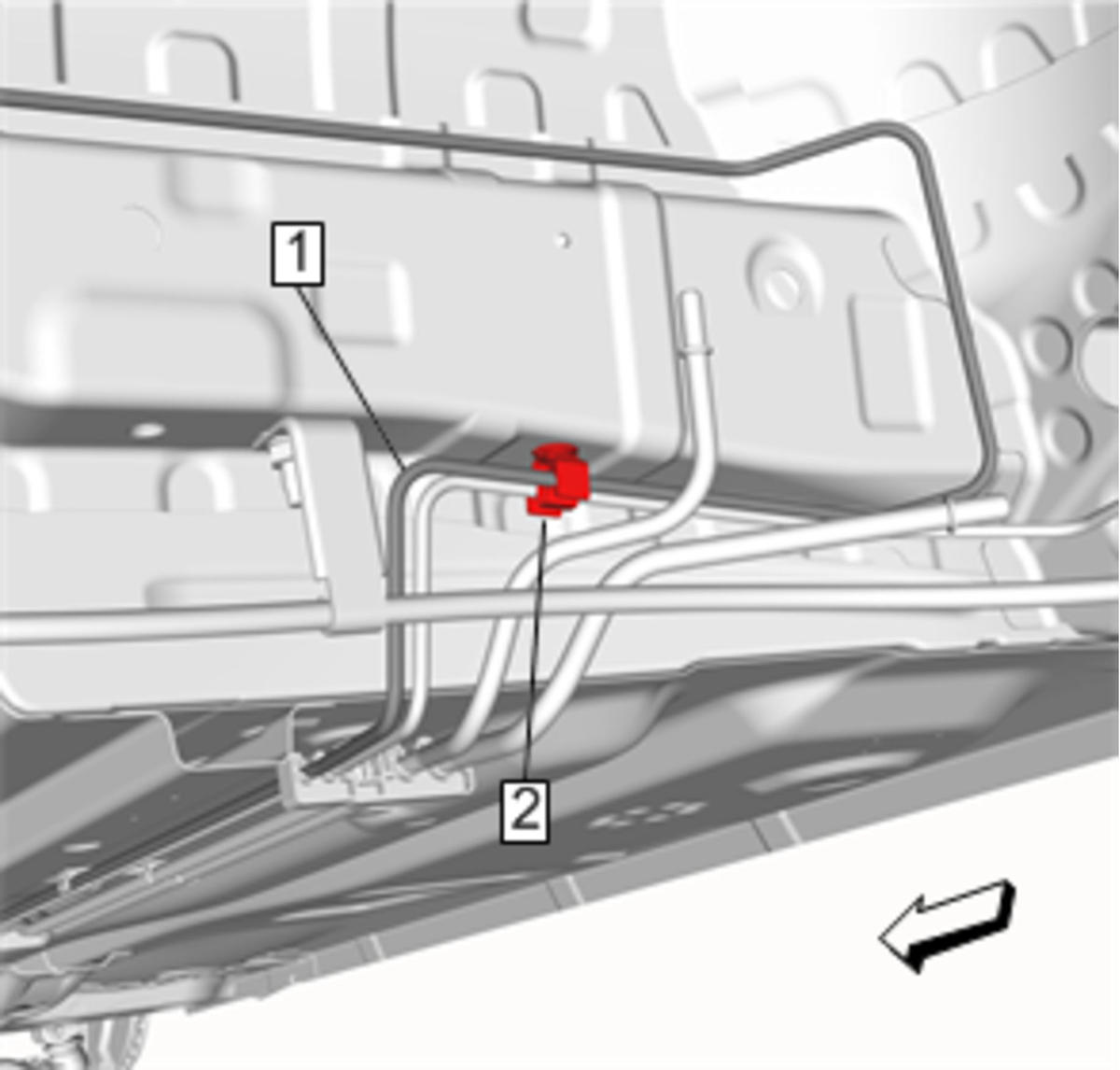

    12. Fig 4: Rear Brake Pipe And 2-Way Clip
    GM4747760Courtesy of GENERAL MOTORS COMPANY
  12. Unclip Rear Brake Pipe (1) @ 2 Way Clip (2)

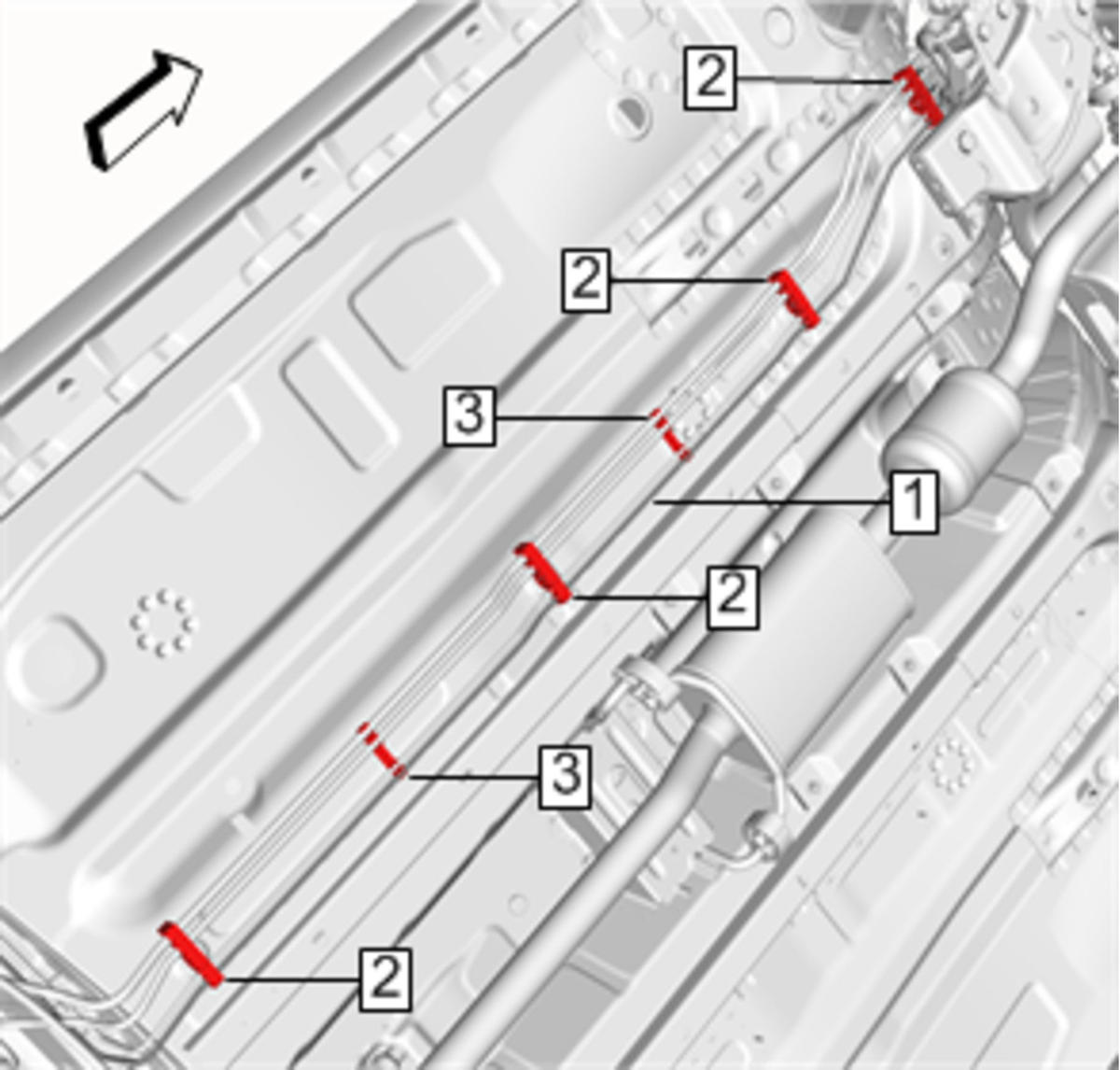

    13. Fig 5: Rear Brake Pipe And Clips
    GM4747761Courtesy of GENERAL MOTORS COMPANY
  13. Unclip Rear Brake Pipe (1) @ Mounted Clips (2) (Qty: 4)
  14. Unclip Rear Brake Pipe (1) @ Clips (3) (Qty: 2)

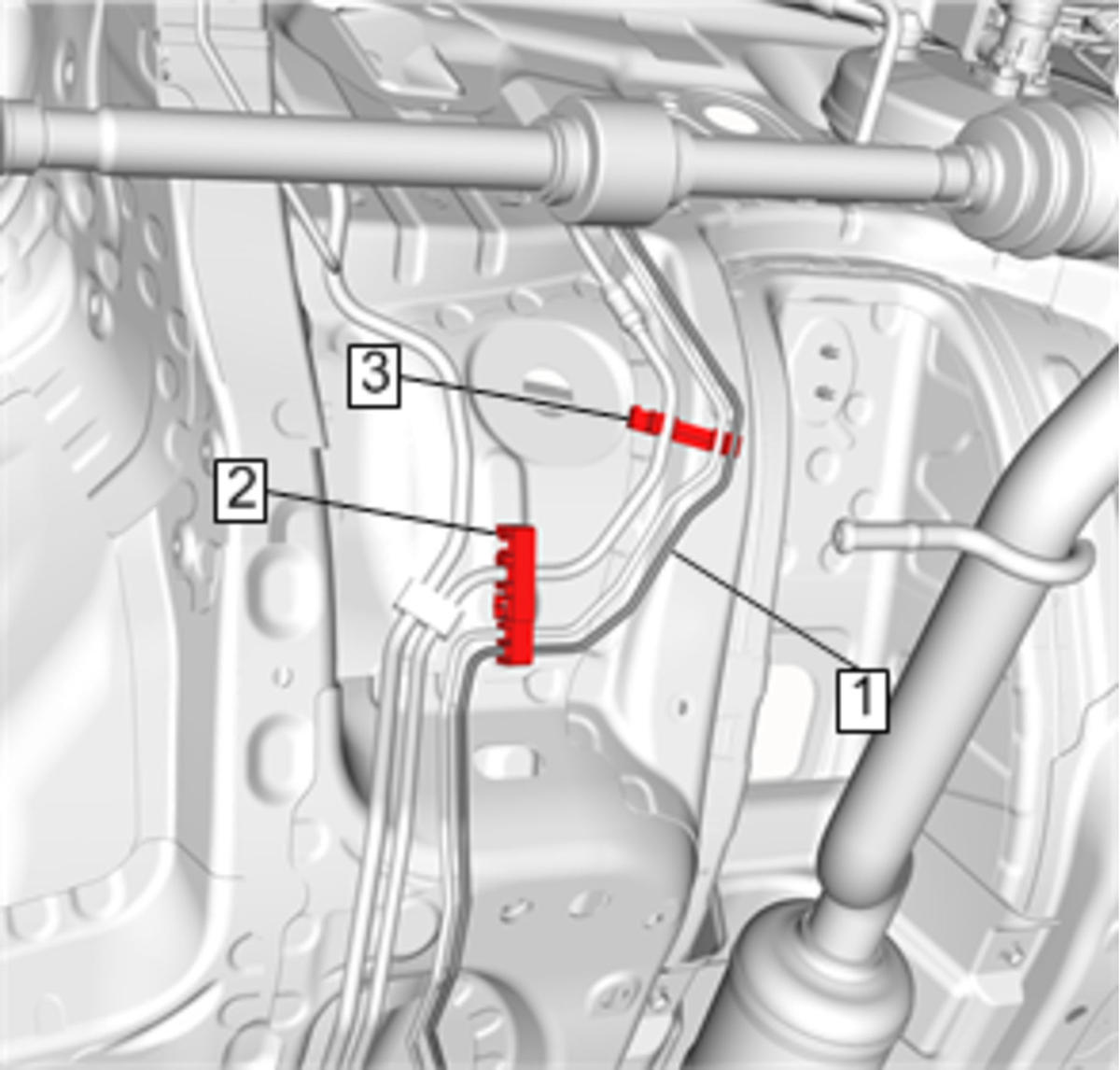

    15. Fig 6: Rear Brake Pipe And Clips
    GM4747762Courtesy of GENERAL MOTORS COMPANY
  15. Unclip Rear Brake Pipe (1) @ Mounted Clip (2)
  16. Unclip Rear Brake Pipe (1) @ Clip (3)

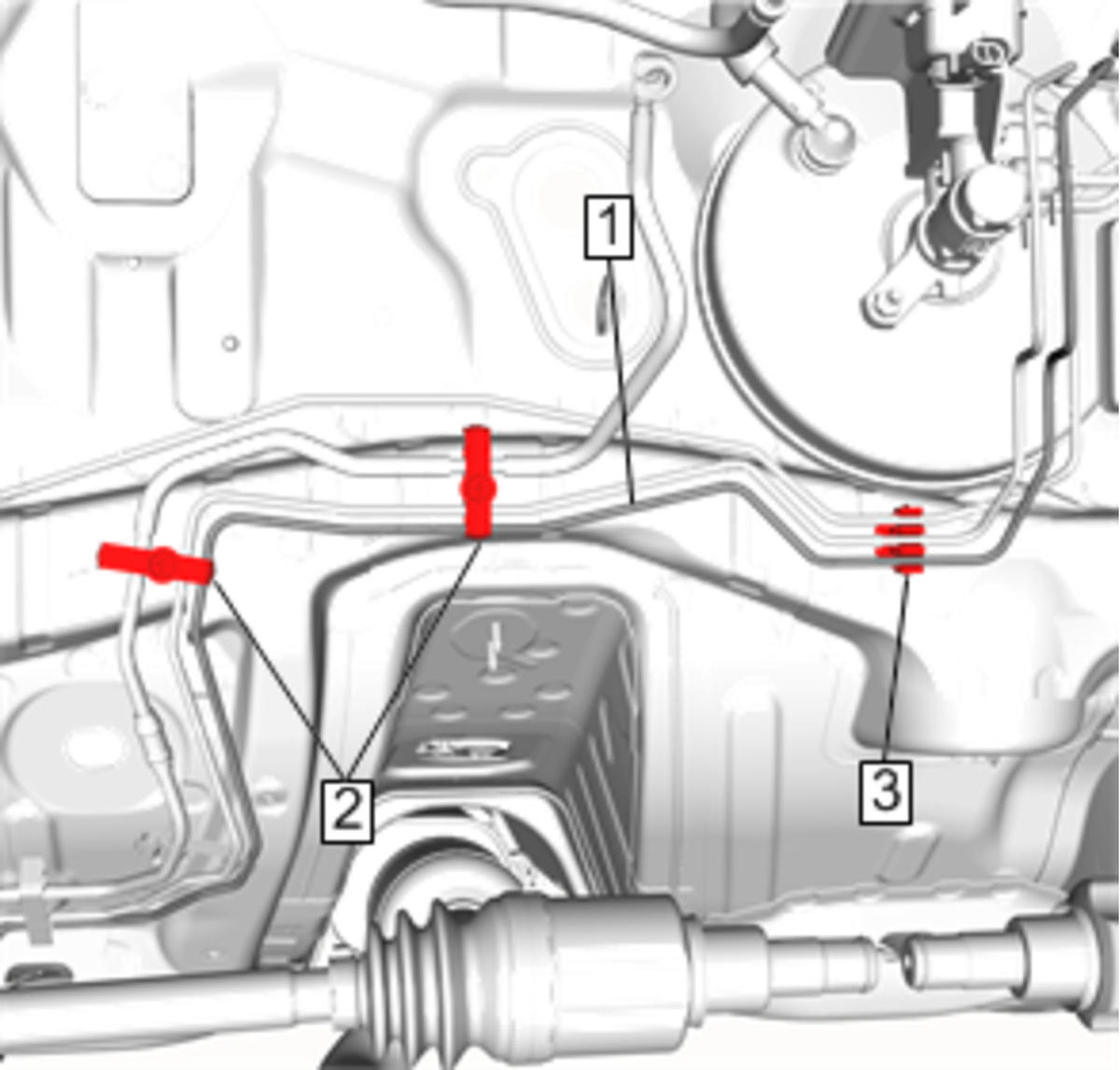

    17. Fig 7: Rear Brake Pipe And Clips
    GM4747763Courtesy of GENERAL MOTORS COMPANY
  17. Unclip Rear Brake Pipe (1) @ Bolted Clips (2) (Qty: 2)
  18. Unclip Rear Brake Pipe (1) @ 3 Way Clip (3)
  19. Remove Rear Brake Pipe (1) @ Vehicle
