Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

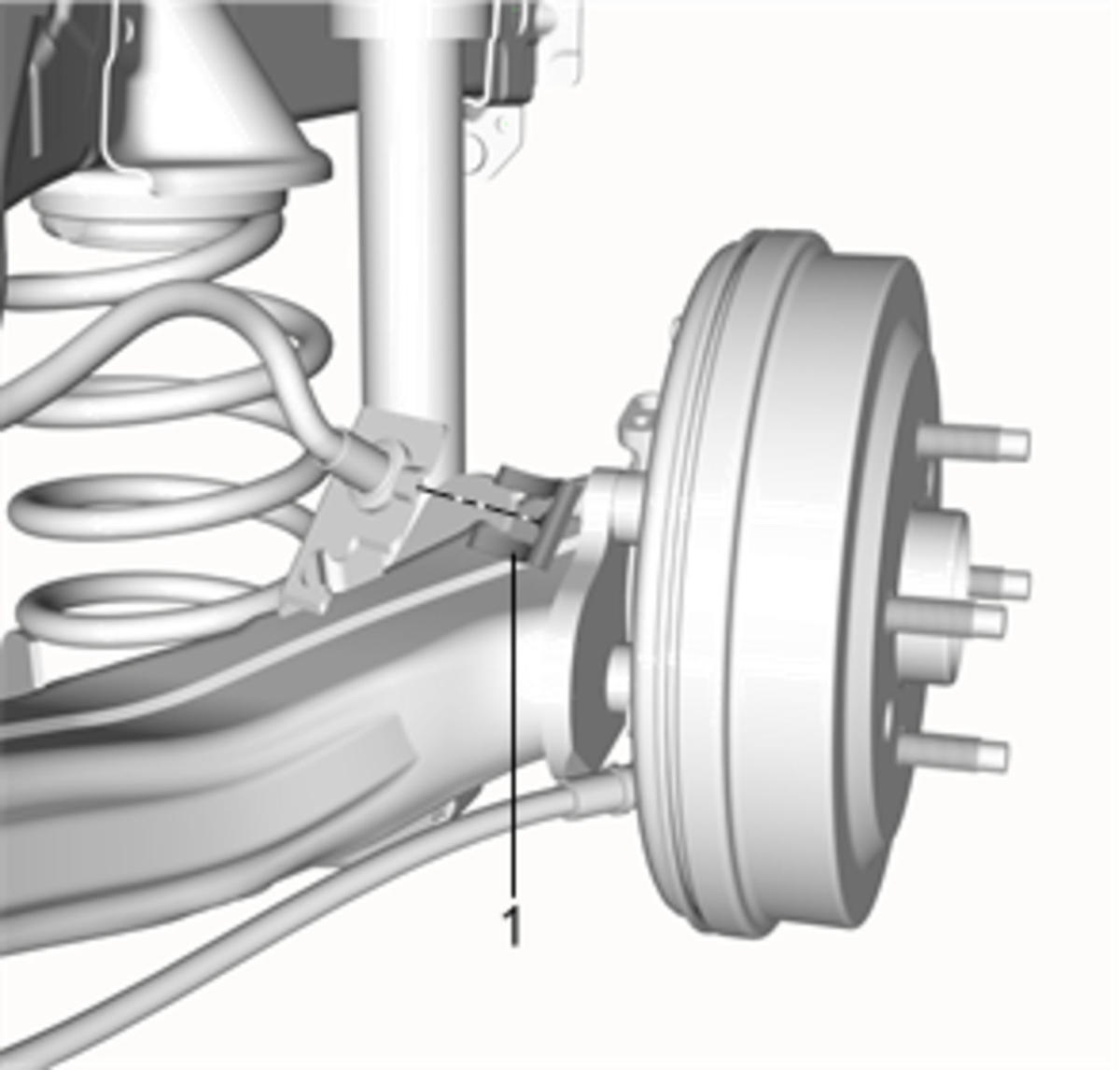

Fig 1: Brake Hose Retaining Clip And Brake Hose Mounting Bracket On Rear Axle

Courtesy of GENERAL MOTORS COMPANY

Install the brake hose to the brake hose mounting bracket on the rear axle.
Install the brake hose retaining clip (1) onto the hose fitting at the brake hose mounting bracket.

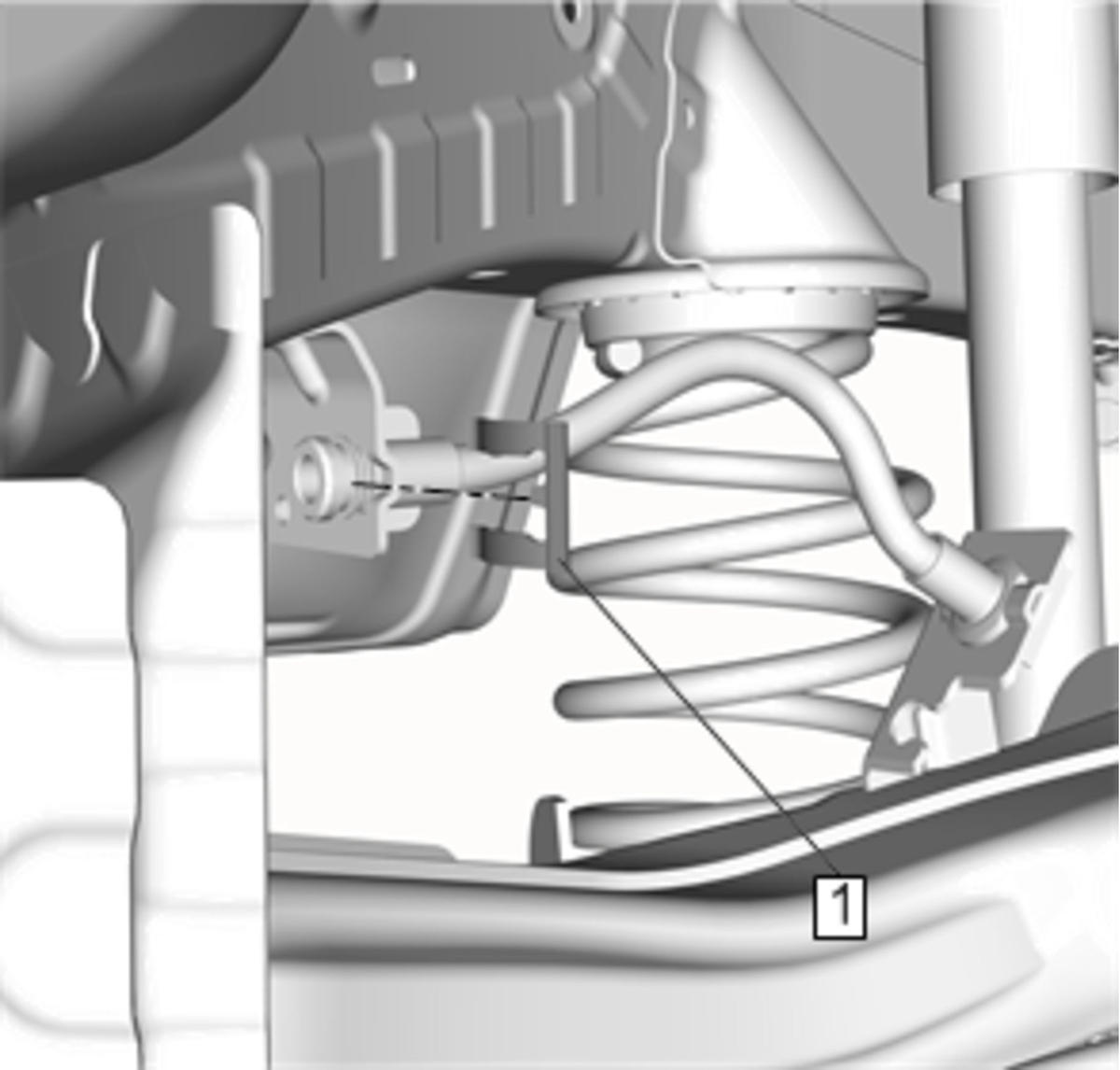

Fig 2: Brake Hose Retaining Clip And Brake Hose Mounting Bracket On Body Frame

Courtesy of GENERAL MOTORS COMPANY

Install the brake hose to the brake hose mounting bracket on the body frame.
Install the brake hose retaining clip (1) onto the hose fitting at the brake hose mounting bracket.

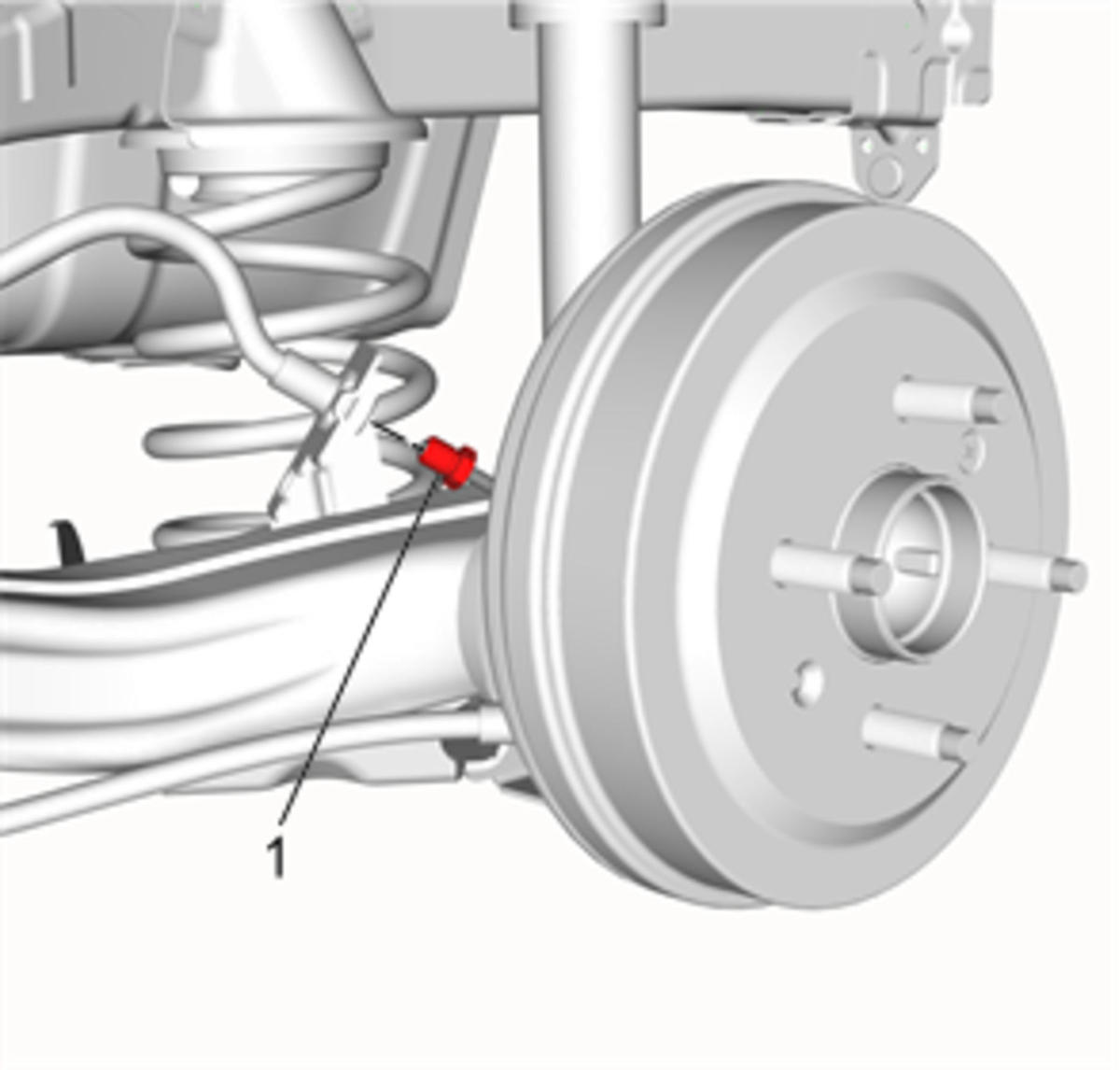

Fig 3: Brake Pipe Fitting And Brake Hose At Wheel Cylinder Side

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Refer to Fastener Caution .

Connect the brake pipe fitting (1) to the brake hose at the wheel cylinder side and tighten to 18 N.m (13 lb ft).

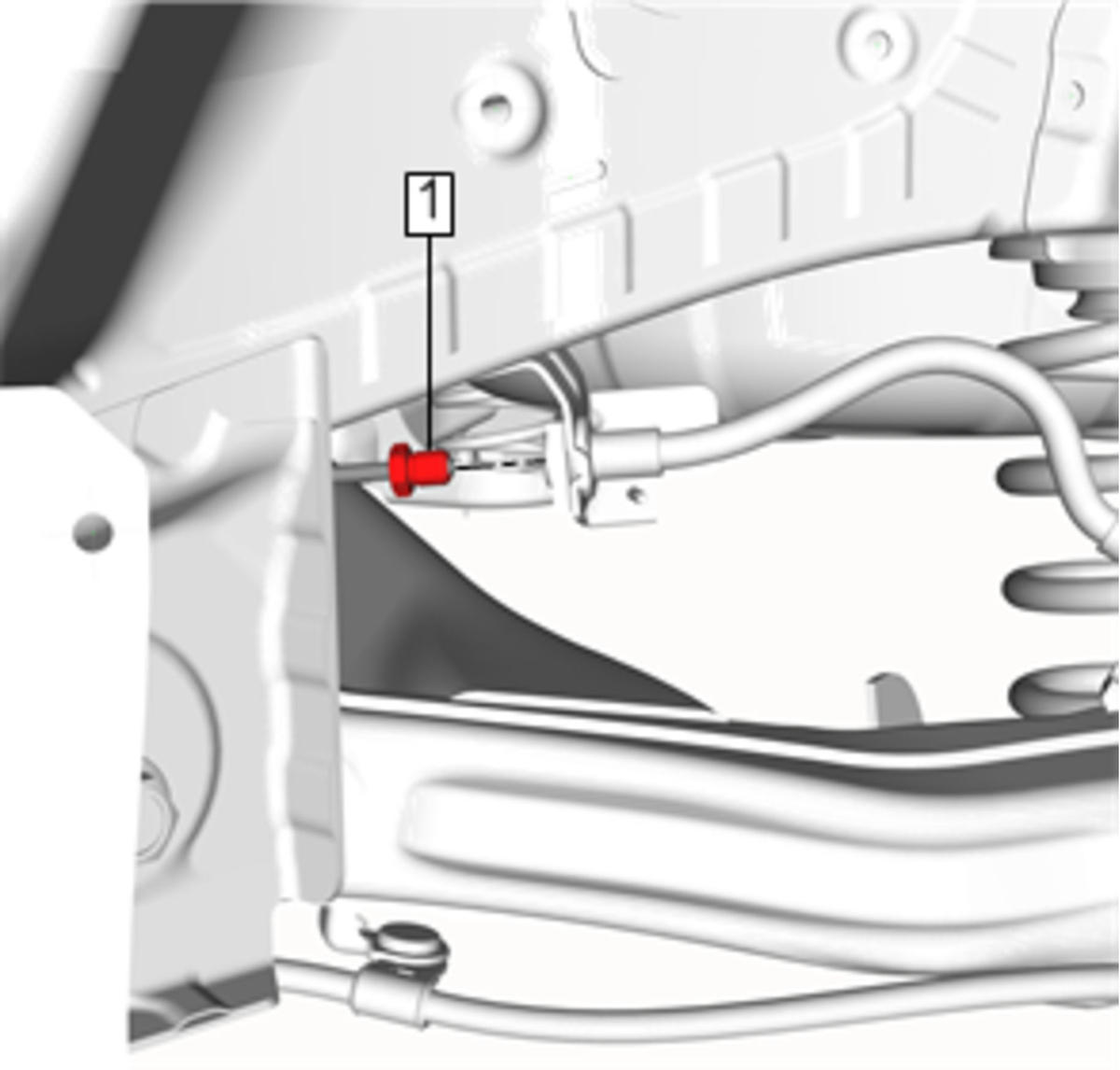

Fig 4: Brake Pipe Fitting And Brake Hose At Rear Brake Pipe Side

Courtesy of GENERAL MOTORS COMPANY

Connect the brake pipe fitting (1) to the brake hose at the rear brake pipe side and tighten to 18 N.m (13 lb ft).
Bleed the hydraulic brake system. Refer to Hydraulic Brake System Bleeding (Manual) Hydraulic Brake System Bleeding (Pressure) .
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
Lower the vehicle.
