Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

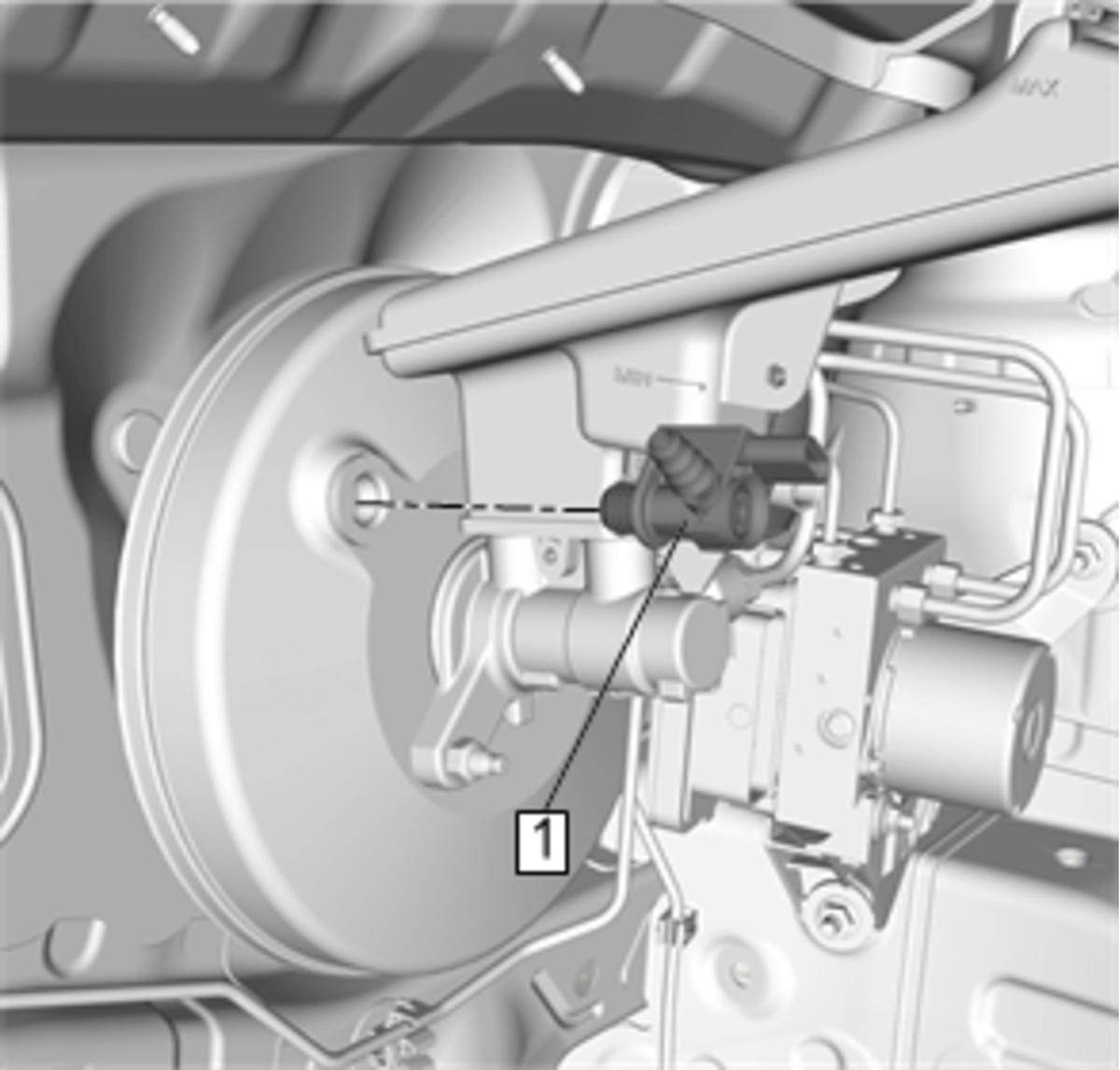

    Fig 1: Power Brake Booster Vacuum Sensor And Power Brake Booster
    GM4007681Courtesy of GENERAL MOTORS COMPANY
  1. Install the power brake booster vacuum sensor (1) to the power brake booster.

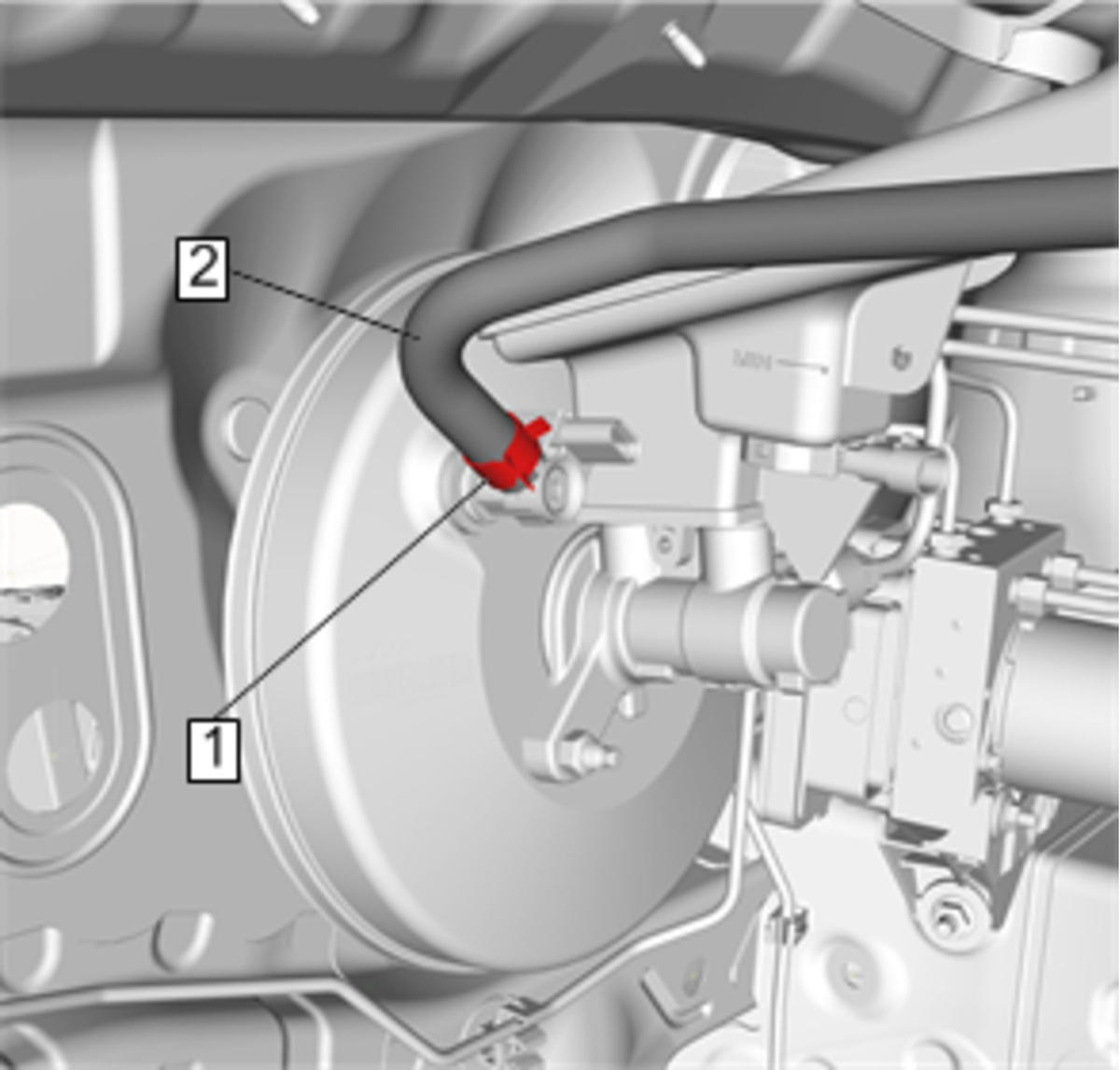

    2. Fig 2: Vacuum Hose Retaining Clamp And Vacuum Hose
    GM4007612Courtesy of GENERAL MOTORS COMPANY
  2. Connect the vacuum hose (2) to the brake booster vacuum sensor.
  3. Compress the vacuum hose retaining clamp (1) and slide along the vacuum hose (1) to the correct position, to secure the vacuum hose (2) to the power brake vacuum sensor.
  4. Connect the electrical connector to the power brake booster vacuum sensor.
