Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

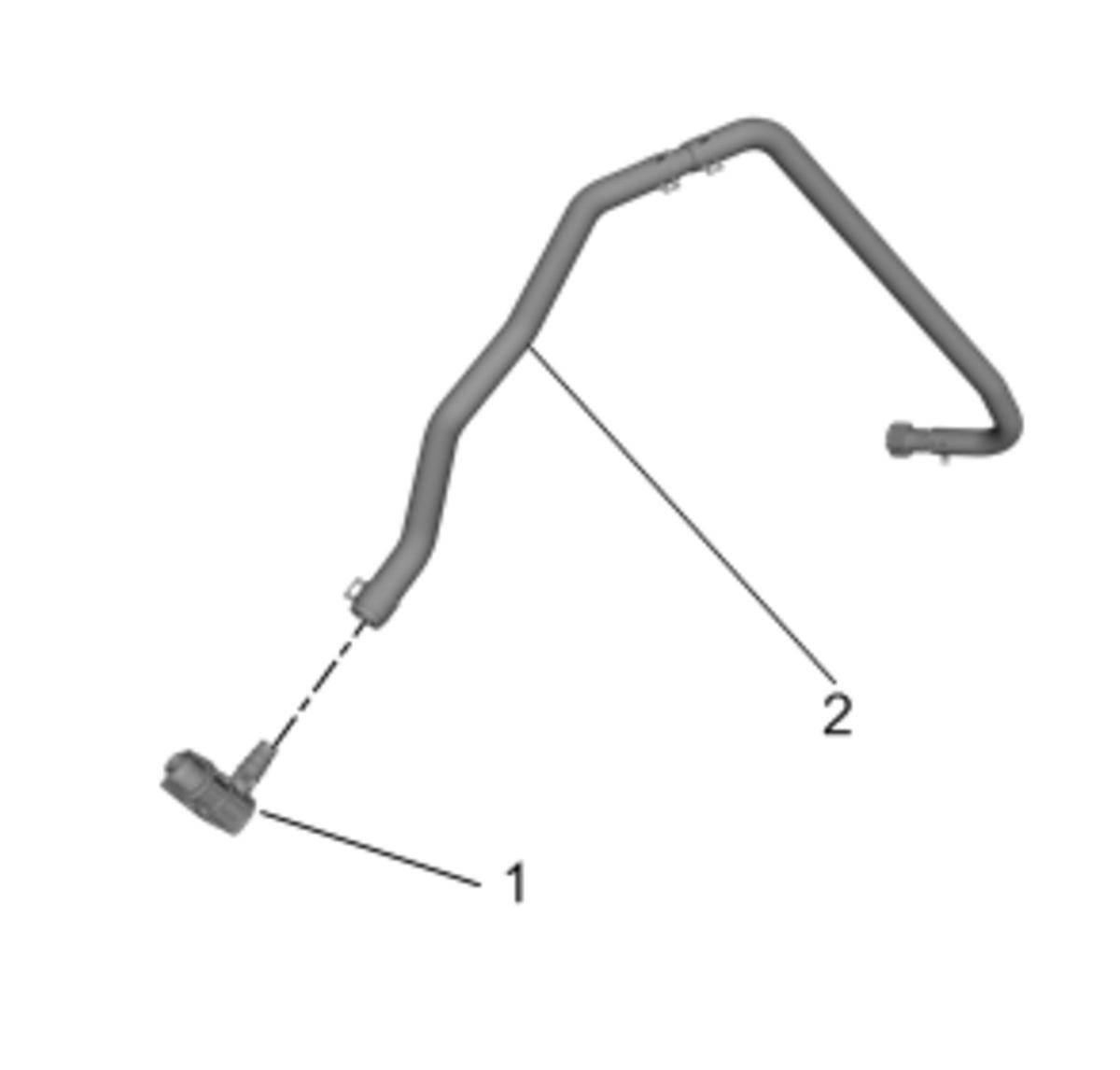

Fig 1: Vacuum Brake Booster Check Valve And Vacuum Hose

Courtesy of GENERAL MOTORS COMPANY

Install the vacuum brake booster check valve (1) to the vacuum hose (2), as necessary.

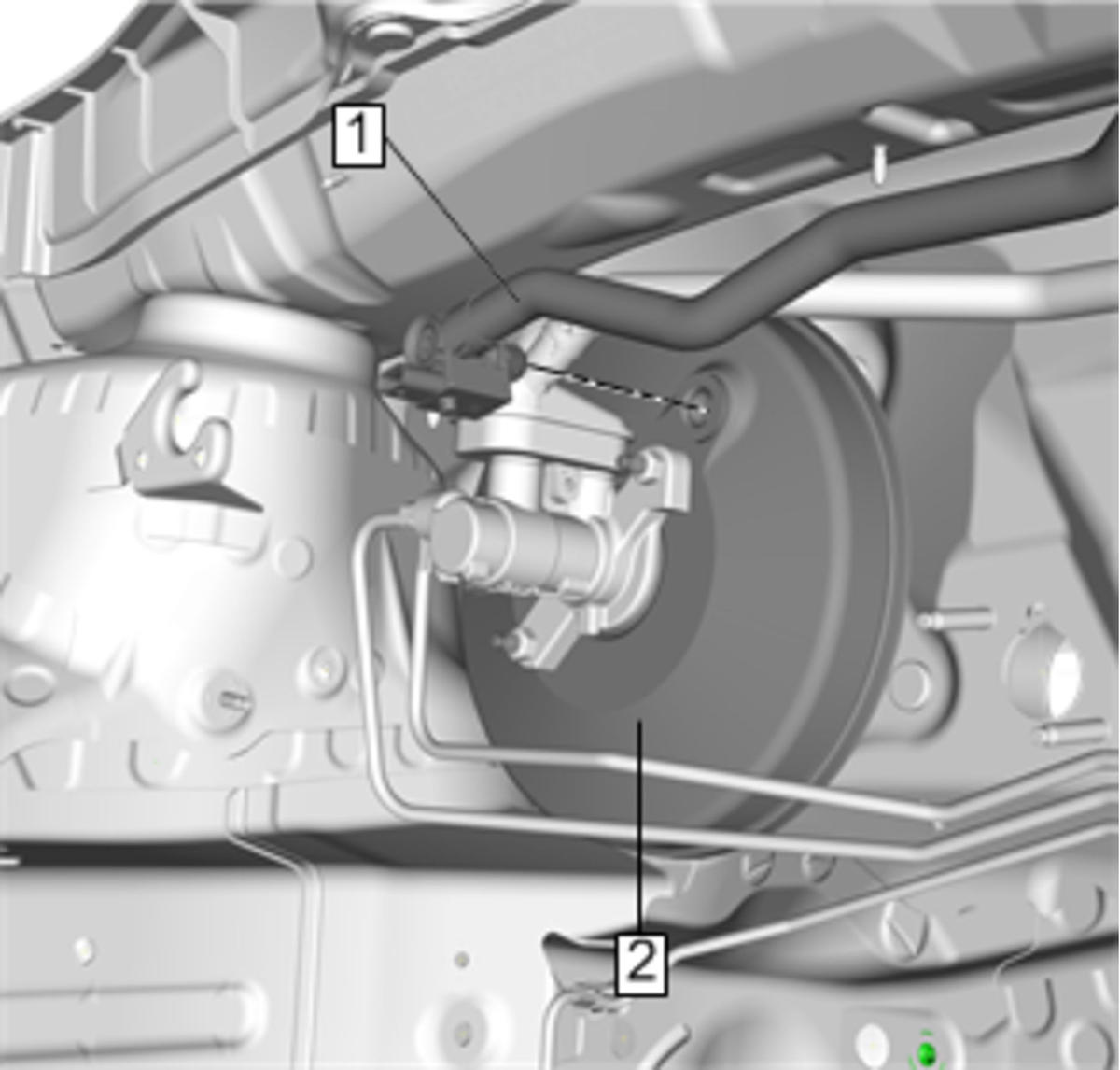

Fig 2: Vacuum Hose, Vacuum Brake Booster Check Valve And Vacuum Brake Booster

Courtesy of GENERAL MOTORS COMPANY

Install the vacuum hose and the vacuum brake booster check valve (1) to the vacuum brake booster (2).

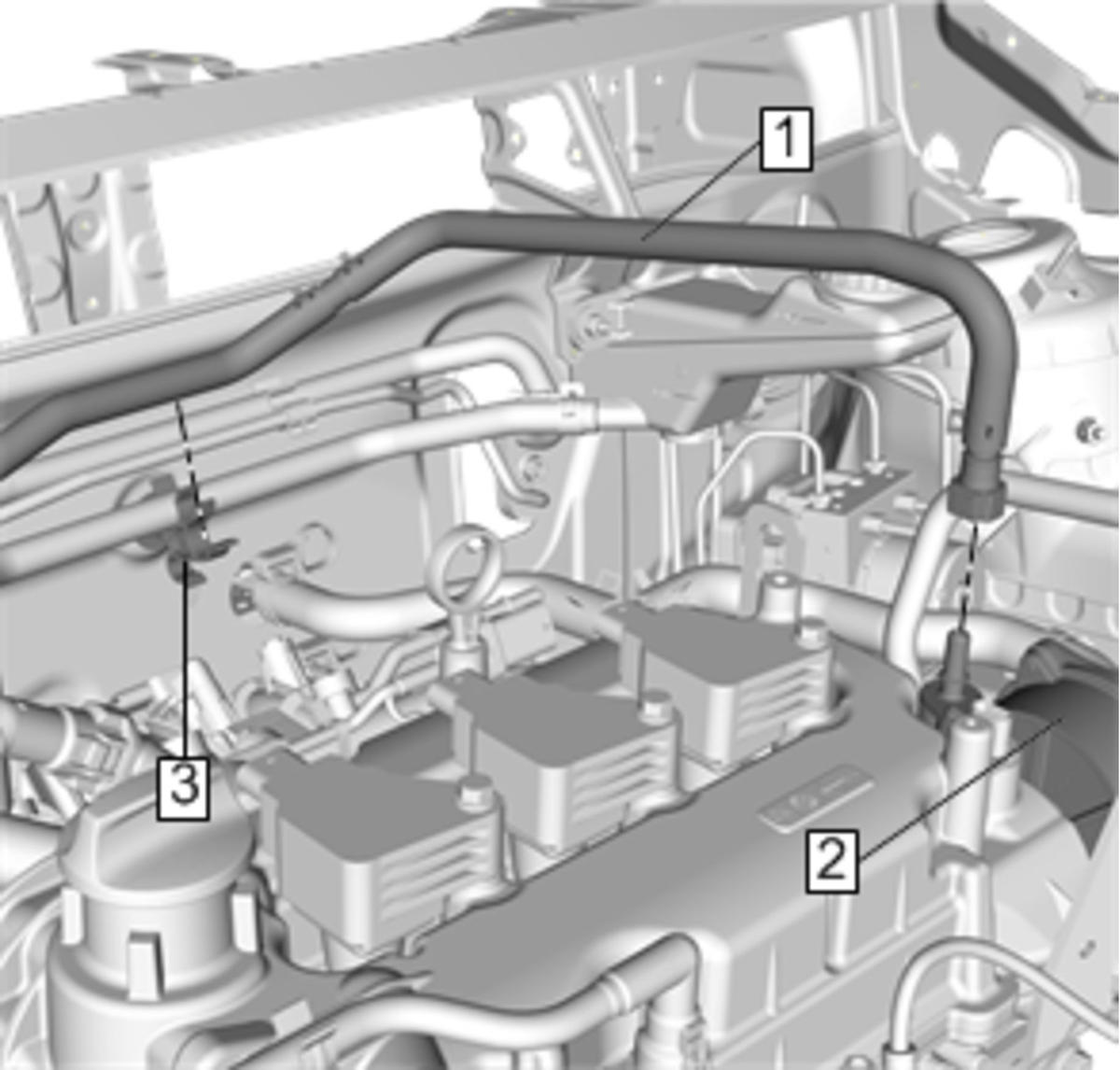

Fig 3: Vacuum Hose, Vacuum Pump And Retainer

Courtesy of GENERAL MOTORS COMPANY

Attach the vacuum hose (1) to the dash panel mounted master cylinder hose retainer (3).
Connect the vacuum hose (1) to the vacuum pump (2) in an engine.
Connect the electrical connector to the power brake booster vacuum sensor, as equipped.
