Master Cylinder Reservoir Replacement (RHD Home Reservoir)
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

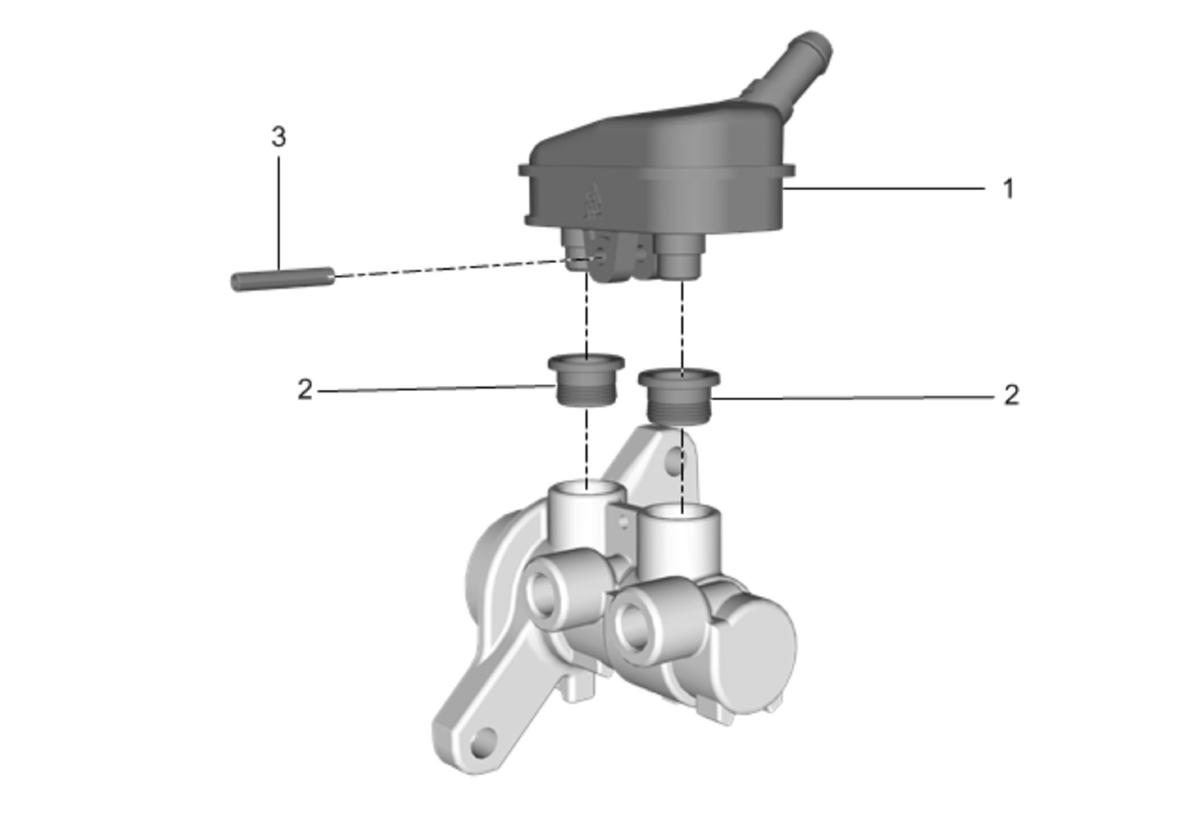

| Callout | Component Name |
|---|---|
|
WARNING:
Refer to Brake Fluid Irritant Warning
CAUTION:
Preliminary Procedure Remove the brake master cylinder. Refer to Master Cylinder Replacement (RHD) .Refer to Brake Fluid Effects on Paint and Electrical Components Caution |
|
| 1 | Brake Master Cylinder Reservoir Procedure Drain the brake fluid from the reservoir. |
| 2 | Brake Master Cylinder Reservoir Seal
NOTE:
Apply a small amount of the clean recommended brake fluid to the seals. |
| 3 | Brake Master Cylinder Reservoir Pin |
