Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Refer to Brake Fluid Irritant Warning .

CAUTION:

Refer to Brake Fluid Effects on Paint and Electrical Components Caution .

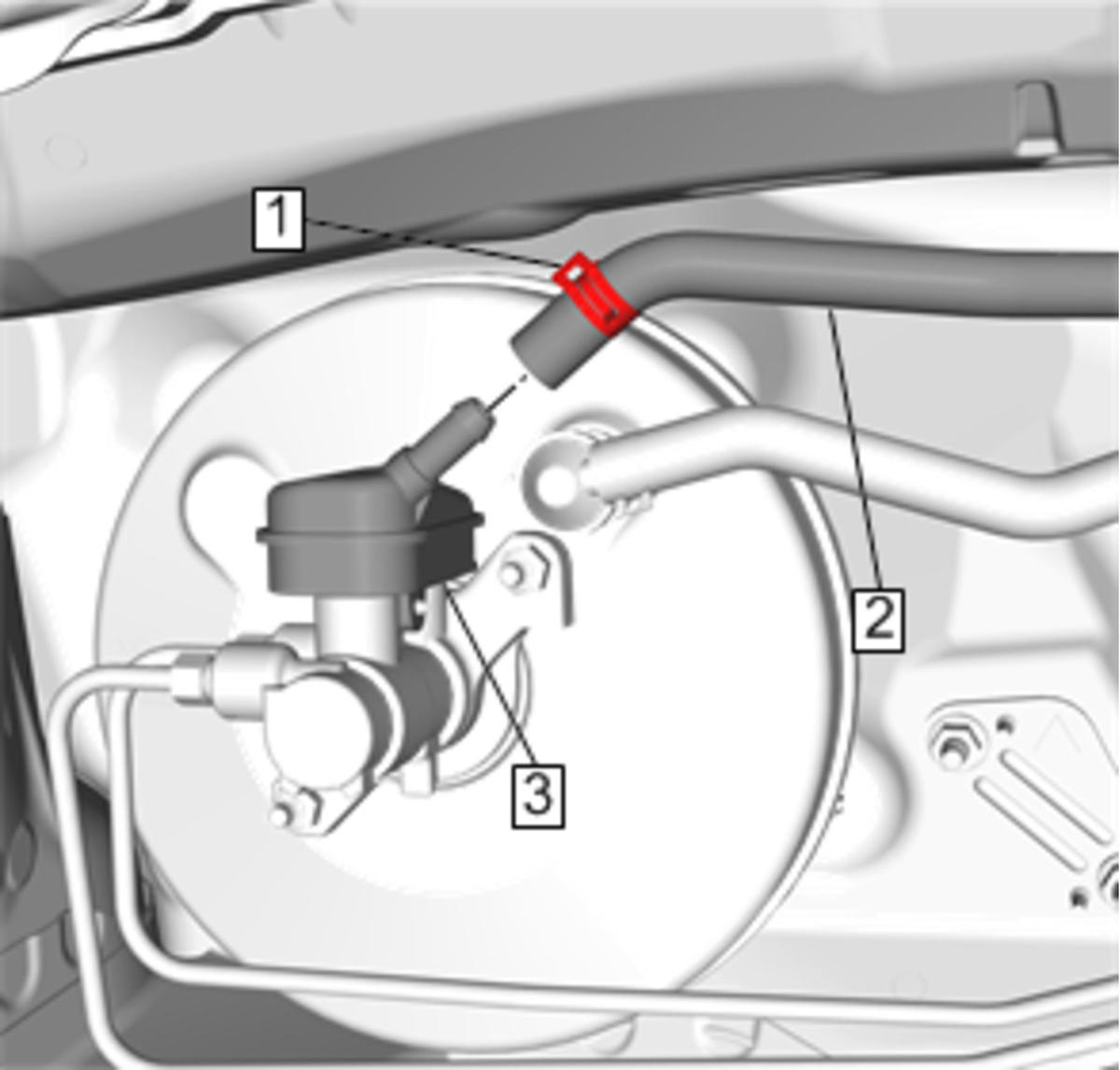

    Fig 1: Brake Master Cylinder Reservoir, Hose And Clamp
    GM4747745Courtesy of GENERAL MOTORS COMPANY
  1. Release Brake Master Cylinder Reservoir Hose Clamp (1) @ Brake Master Cylinder Reservoir Hose (2)
  2. Disconnect Brake Master Cylinder Reservoir Hose (2) @ Brake Master Cylinder Reservoir (3)
  3. Drain the brake fluid out of the brake master cylinder remote reservoir.

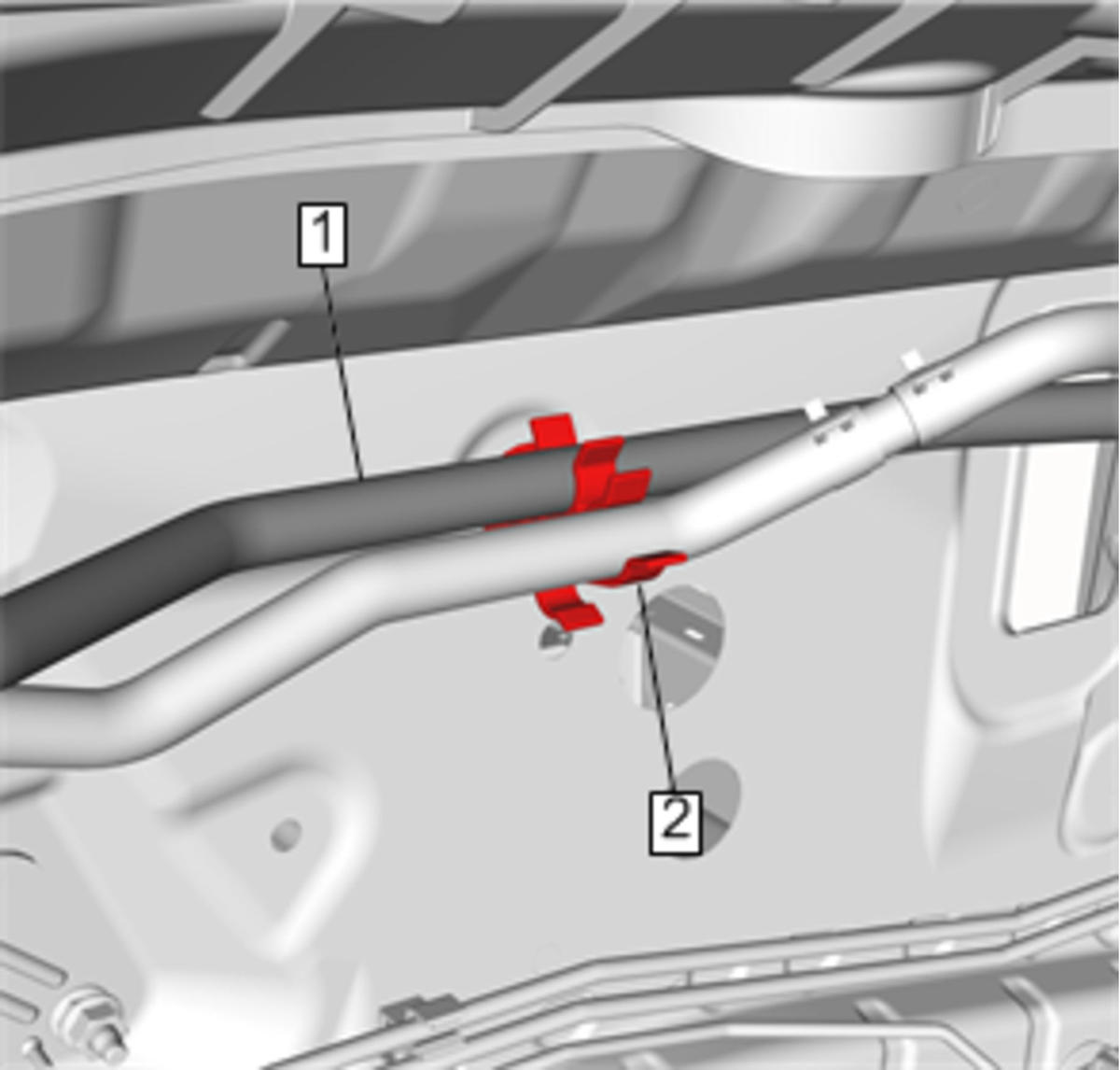

    4. Fig 2: Brake Master Cylinder Reservoir Hose And Retainer
    GM4747746Courtesy of GENERAL MOTORS COMPANY
  4. Remove Brake Master Cylinder Reservoir Hose (1) @ Retainer (2)

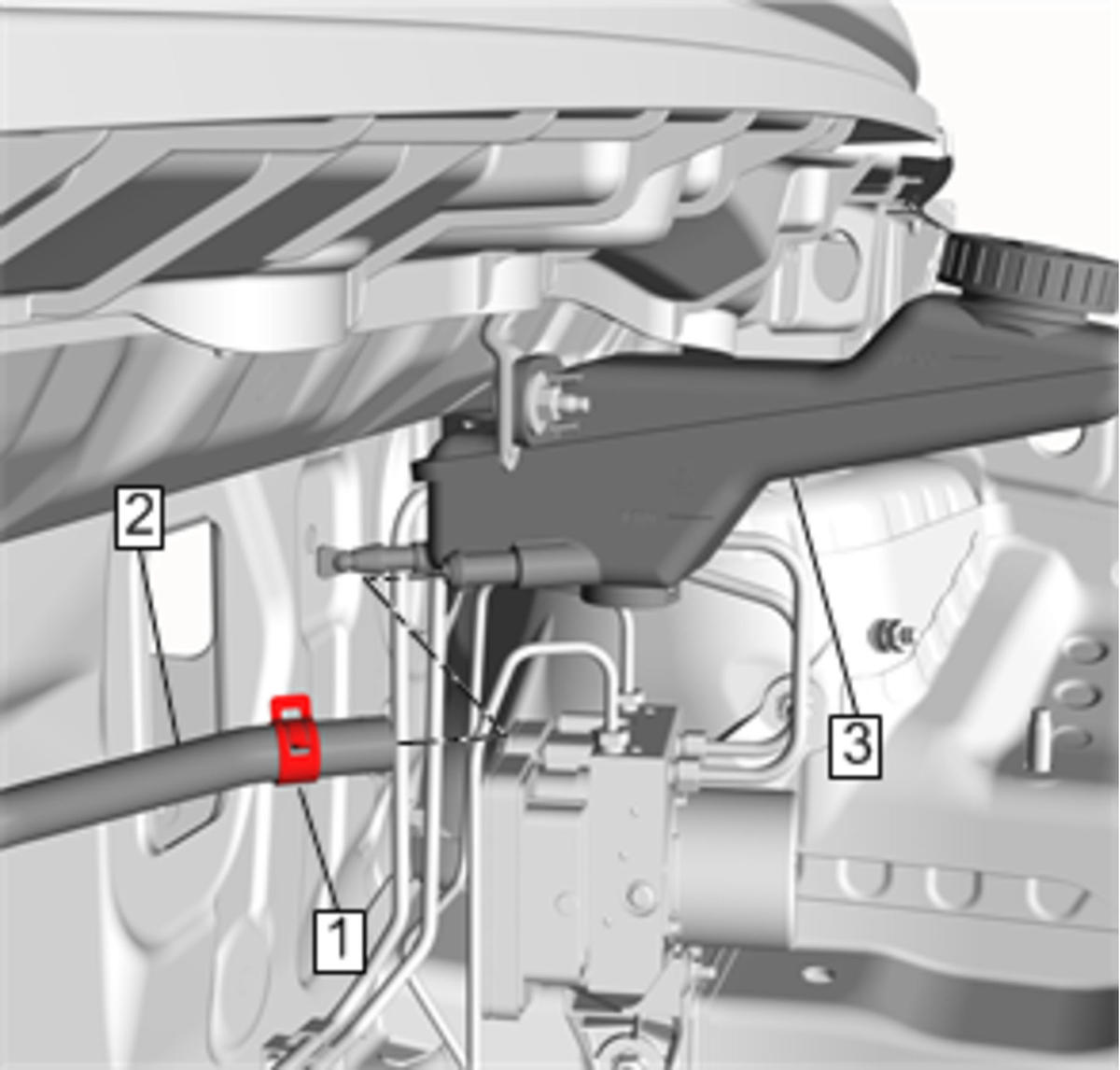

    5. Fig 3: Brake Master Cylinder Reservoir, Hose And Clamp
    GM4747747Courtesy of GENERAL MOTORS COMPANY
  5. Release Brake Master Cylinder Reservoir Hose Clamp (1) @ Brake Master Cylinder Reservoir Hose (2)
  6. Disconnect Brake Master Cylinder Reservoir Hose (2) @ Brake Master Cylinder Remote Reservoir (3)
  7. Remove Brake Master Cylinder Reservoir Hose (2) @ Vehicle
