Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Timing Chain Tensioner Shoe (2) - Install

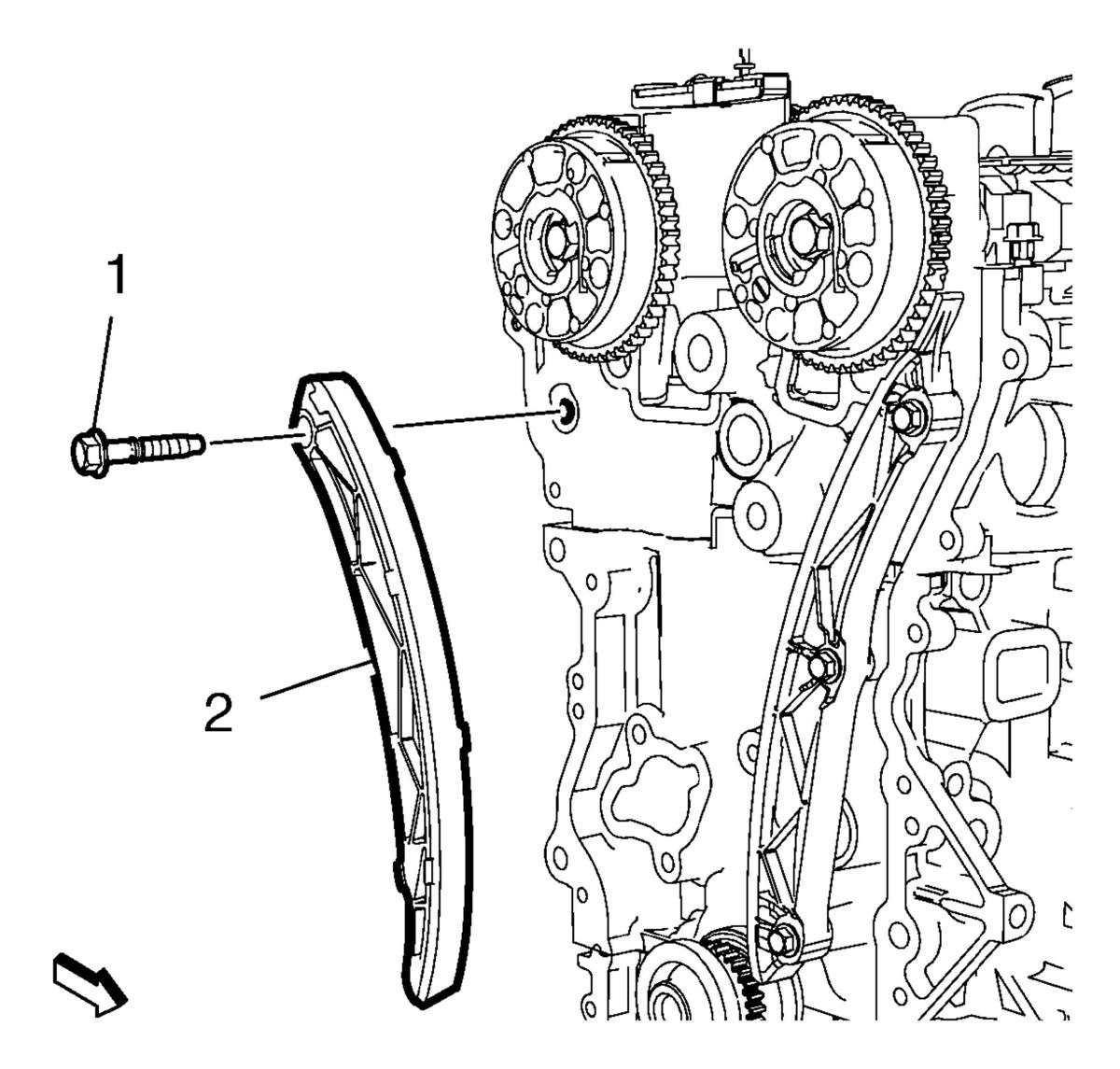

    Fig 1: Timing Chain Tensioner Shoe And Bolt
    GM3689078Courtesy of GENERAL MOTORS COMPANY
  2. Timing Chain Tensioner Shoe Bolt (1) - Install and tighten 25 N.m (18 lb ft)
    CAUTION: Refer to Fastener Caution .
  3. Install the timing chain tensioner. Refer to Timing Chain Tensioner Replacement .
