Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine front cover. Refer to Engine Front Cover Replacement (LV7) Engine Front Cover Replacement (L5Q) .
  2. Release the tension by pushing the tensioner and insert the EN-49073  timing chain tensioner pin (1) to the timing chain tensioner (2).

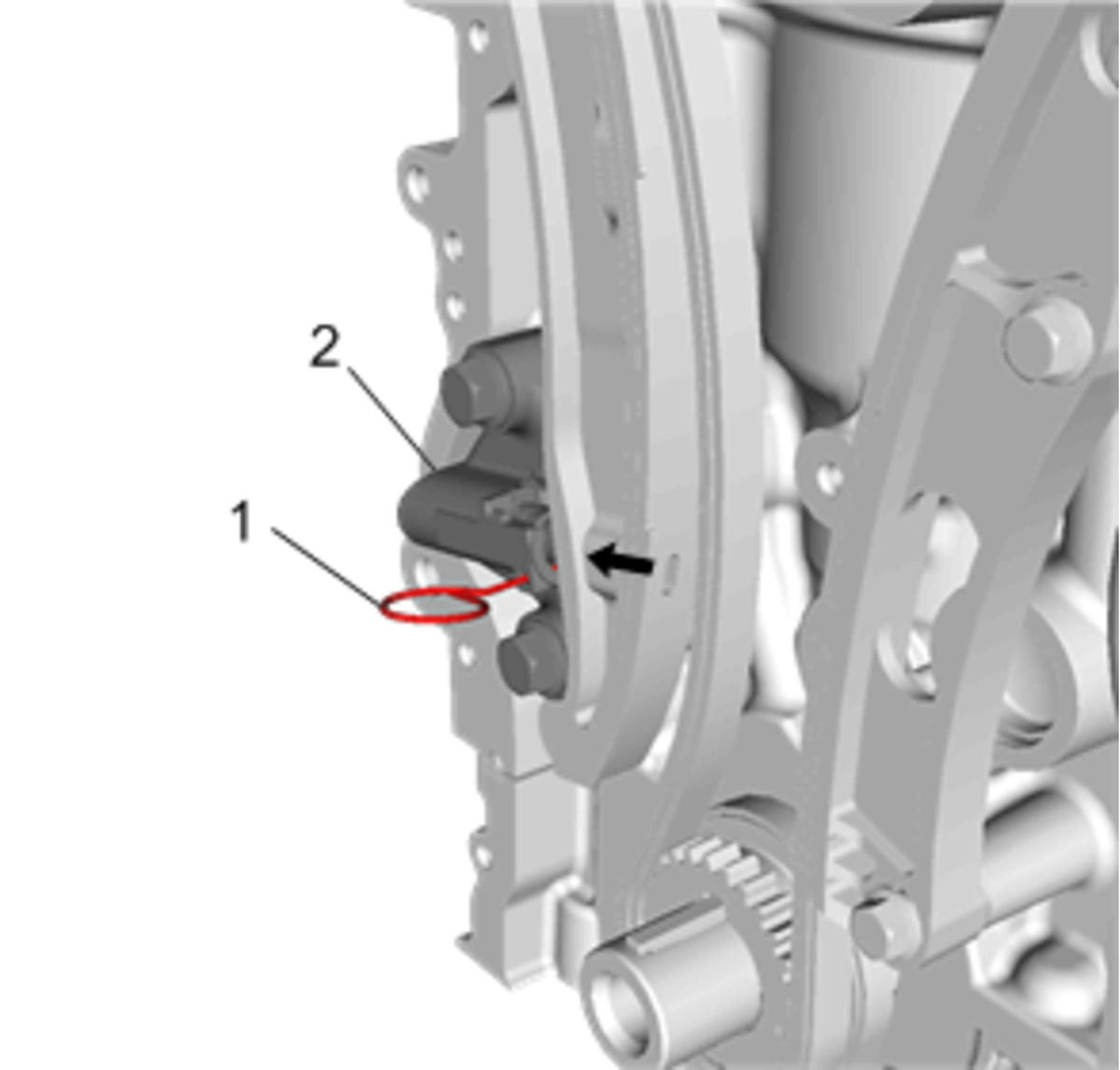

    Fig 1: Timing Chain Tensioner And Pin
    GM4217672Courtesy of GENERAL MOTORS COMPANY
  3. Remove the timing chain tensioner bolts (1) and timing chain tensioner (2) with timing chain tensioner gasket (3).

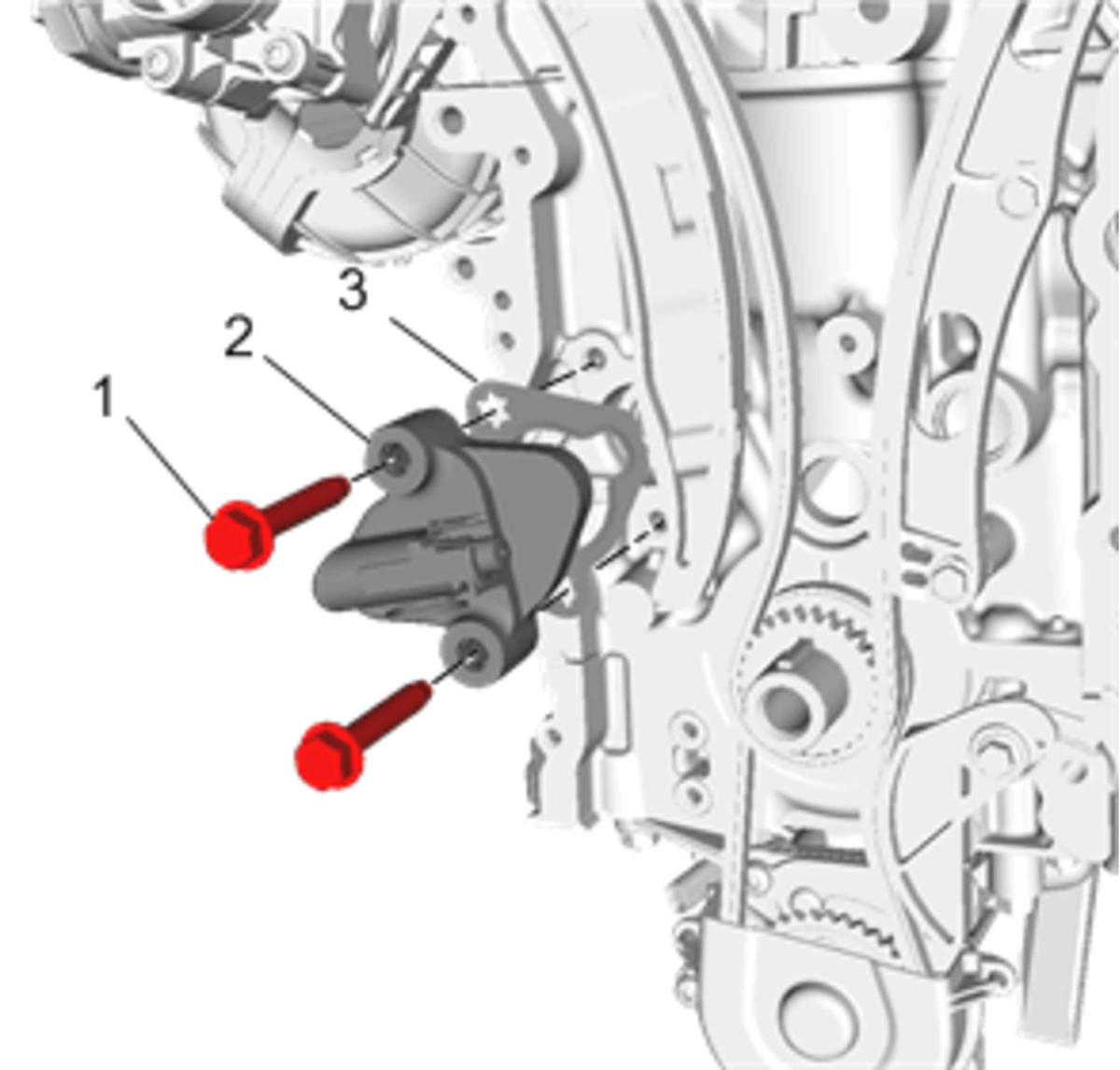

    Fig 2: Timing Chain Tensioner, Bolts And Gasket
    GM4037064Courtesy of GENERAL MOTORS COMPANY
