Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the timing chain tensioner (2) with gasket (3). And tighten the timing chain tensioner retaining bolts (1) to 25 N.m (18 lb ft).
    Fig 1: Timing Chain Tensioner, Bolts And Gasket
    GM4037064Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
  2. Remove the EN-49073  timing chain tensioner pin (1) from the timing chain tensioner (2).

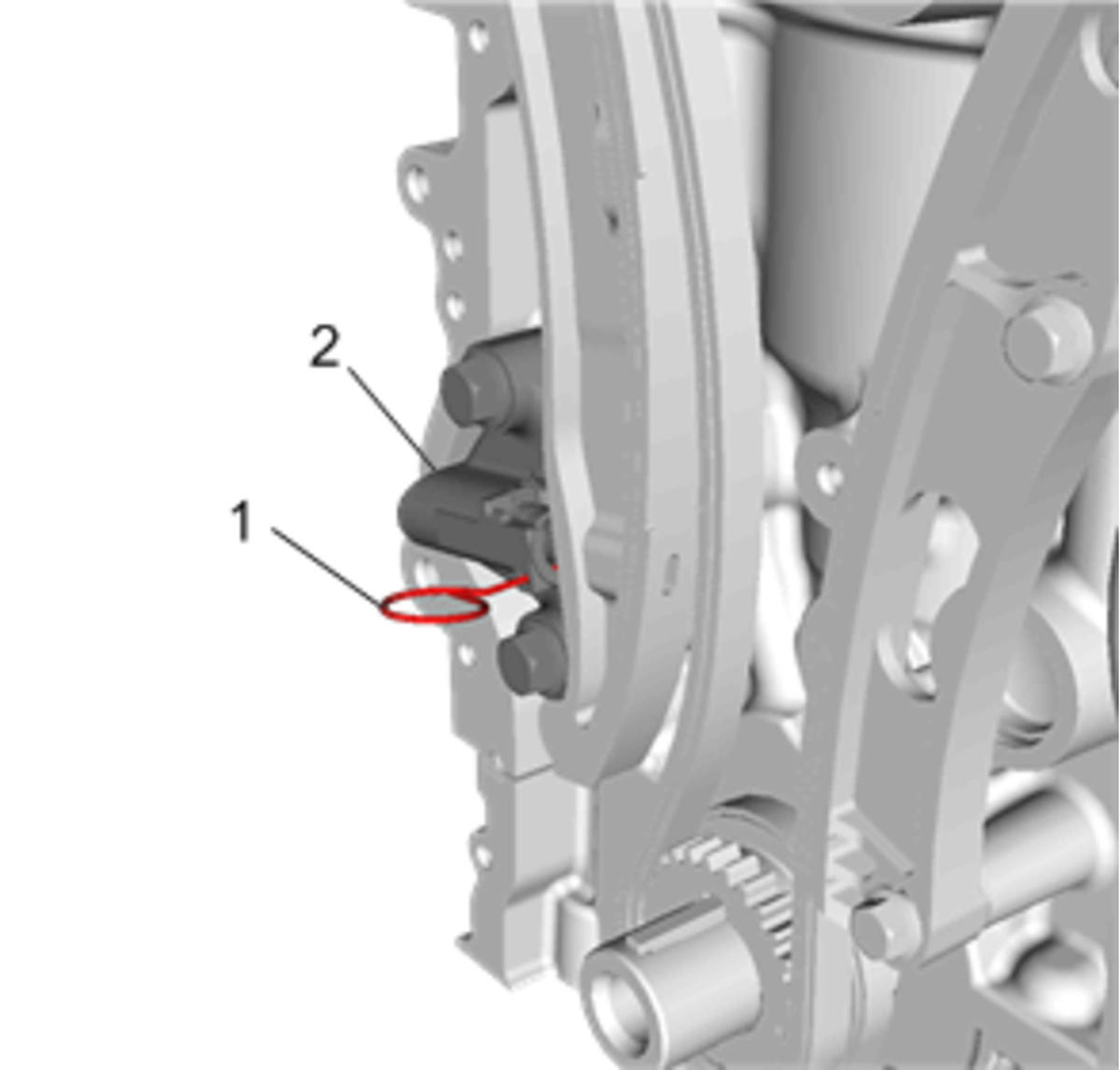

    Fig 2: Timing Chain Tensioner And Pin
    GM4037059Courtesy of GENERAL MOTORS COMPANY
  3. Install the engine front cover. Refer to Engine Front Cover Replacement (LV7) Engine Front Cover Replacement (L5Q) .
