Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the timing chain tensioner. Refer to Timing Chain Tensioner Replacement .
  2. Remove the 3 timing chain guide bolts (2).

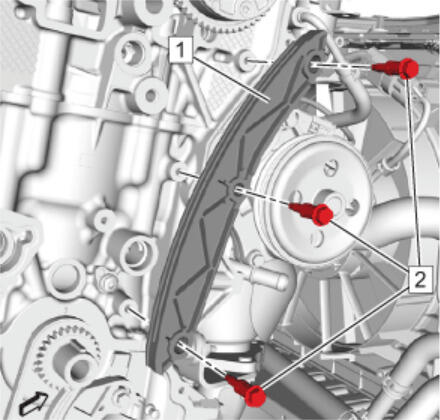

    Fig 1: Right Side Timing Chain Guide And Bolts
    GM3689080Courtesy of GENERAL MOTORS COMPANY
  3. Remove the timing chain guide - right side (1).
