Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the tension using the suitable tool.

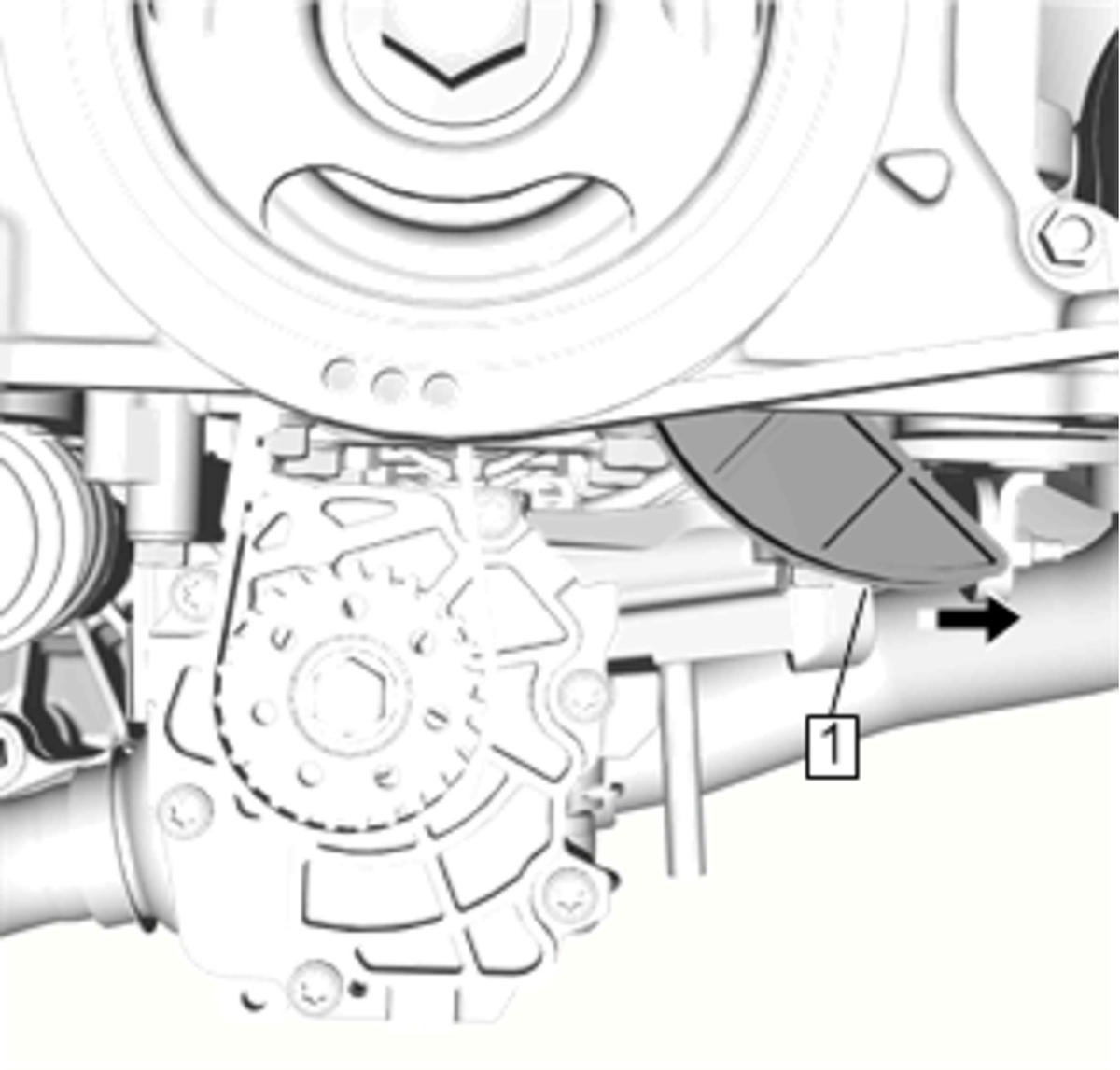

    Fig 1: Releasing Tension
    GM4230653Courtesy of GENERAL MOTORS COMPANY
  2. Install the oil pump (2) with 2 oil pump gasket (3).

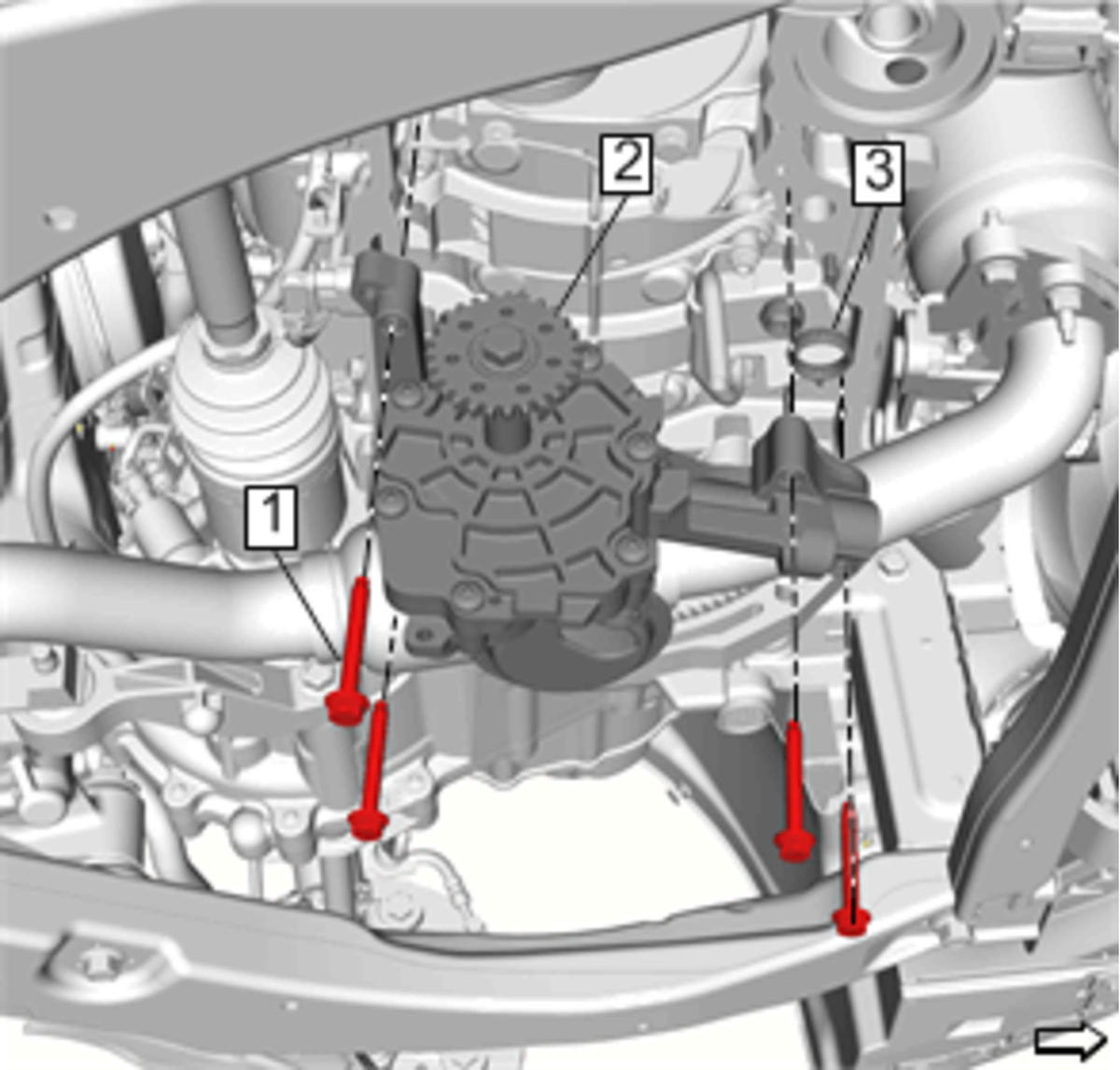

    Fig 2: Oil Pump, Bolts And Gaskets/Seals
    GM4230654Courtesy of GENERAL MOTORS COMPANY
    NOTE: Oil pump is removed/installed as an assembly with the oil pump sprocket.
  3. Tighten the oil pump bolts (1) in sequence to 10 N.m (89 lb in).
    CAUTION: Refer to Fastener Caution .
  4. Install the upper oil pan. Refer to Upper Oil Pan Replacement (LV7) .
