Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan. Refer to Oil Pan Replacement (L5Q) .
  2. Remove the oil pump drive chain cover bolt (1) and remove the oil pump drive chain cover (2).
    Fig 1: Oil Pump Drive Chain Cover And Bolt
    GM4037084Courtesy of GENERAL MOTORS COMPANY
  3. Release the tension using the suitable tool.

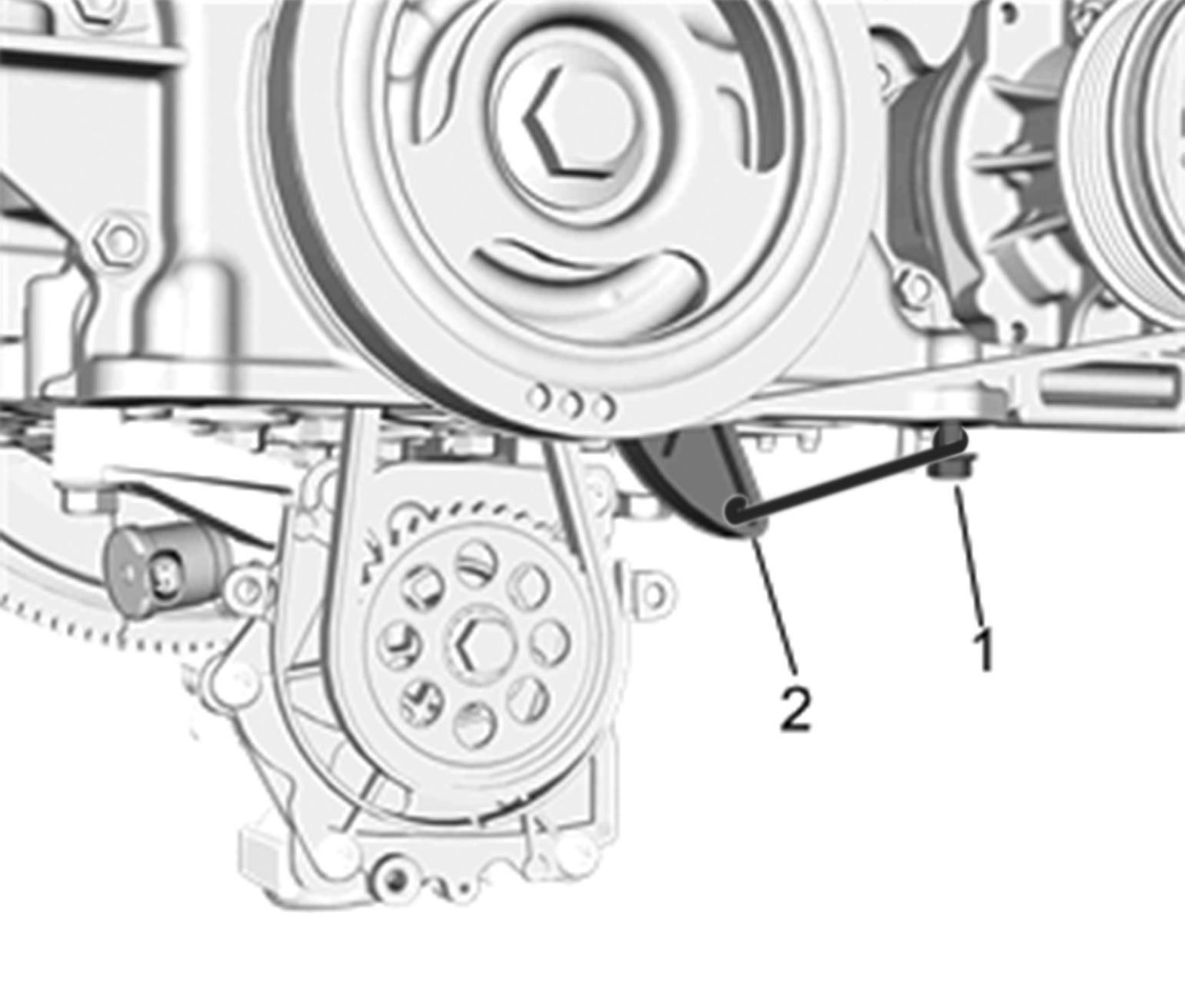

    Fig 2: Releasing Tension
    GM4165843Courtesy of GENERAL MOTORS COMPANY
  4. Remove the 3 crankshaft oil deflector bolts (1) and 2 crankshaft oil deflector bolts (2).
    Fig 3: Crankshaft Oil Deflector And Bolts
    GM4037089Courtesy of GENERAL MOTORS COMPANY
  5. Remove the crankshaft oil deflector (3).
  6. Remove the oil pump bolts (1, 4) and remove the oil pump (2) with 2 oil pump gasket (3).
    Fig 4: Oil Pump, Bolts And Gaskets/Seals
    GM4037094Courtesy of GENERAL MOTORS COMPANY
    NOTE: Oil pump is removed/installed as an assembly with the oil pump sprocket.
