Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

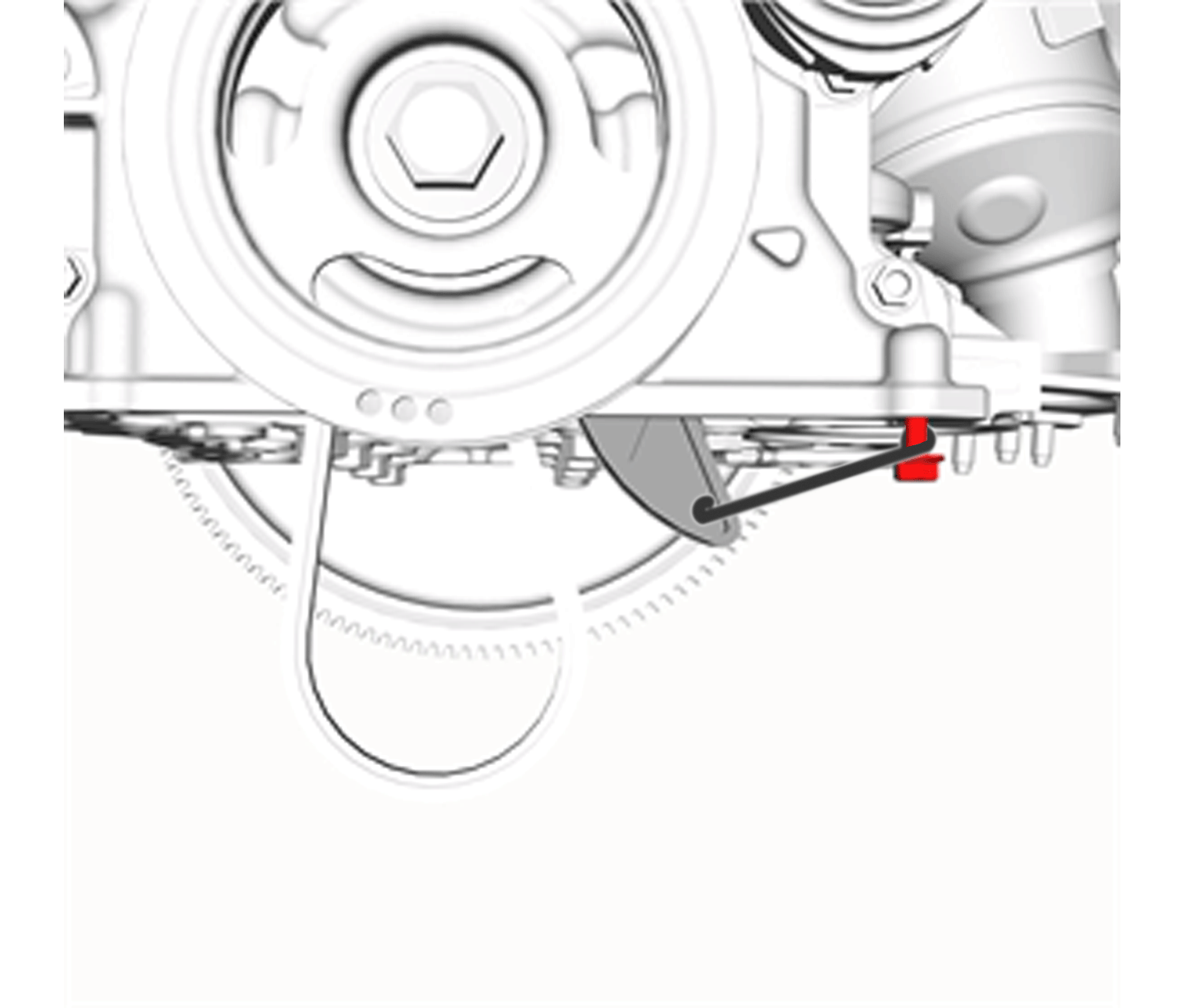

  1. Release the tension using the suitable tool.
    Fig 1: Releasing Tension
    GM4165848Courtesy of GENERAL MOTORS COMPANY
  2. Install the oil pump (2) with 2 oil pump gasket (3).
    Fig 2: Oil Pump, Bolts And Gaskets/Seals
    GM4037094Courtesy of GENERAL MOTORS COMPANY
    NOTE: Oil pump is removed/installed as an assembly with the oil pump sprocket.
  3. Tighten the oil pump bolts (1) in sequence to 25 N.m (18 lb ft).
    CAUTION: Refer to Fastener Caution .
    NOTE: Tighten the bolts in sequence.
  4. Tighten the oil pump bolts (4) in sequence to 10 N.m (89 lb in).
  5. Install the crankshaft oil deflector (3).
    Fig 3: Crankshaft Oil Deflector And Bolts
    GM4037089Courtesy of GENERAL MOTORS COMPANY
  6. Install the 3 crankshaft oil deflector bolts (1) and tighten to 10 N.m (89 lb in).
    NOTE: Tighten the bolts in sequence.
  7. Install the 2 crankshaft oil deflector bolts (2) and tighten to 25 N.m (18 lb ft).
  8. Install the oil pump drive chain cover (2) and tighten to 10 N.m (89 lb in).
    Fig 4: Oil Pump Drive Chain Cover And Bolt
    GM4037084Courtesy of GENERAL MOTORS COMPANY
  9. Install the oil pan. Refer to Oil Pan Replacement (L5Q) .
