Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil pump drive chain tensioner (2) and tighten to 10 N.m (89 lb in).

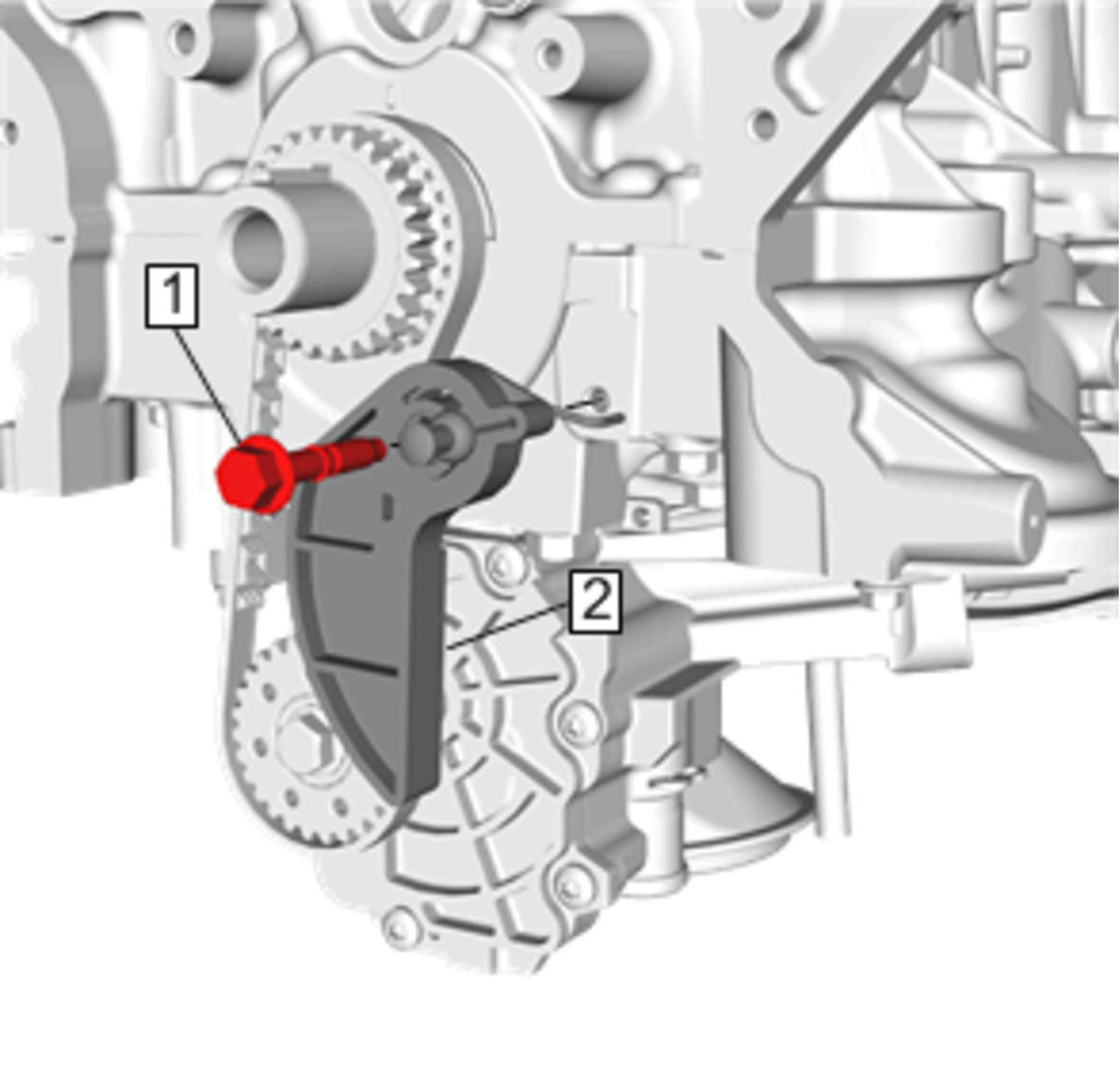

    Fig 1: Oil Pump Drive Chain Tensioner And Bolt
    GM4230656Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
    NOTE: Ensure the tensioner spring is retained in the correct position prior to installation.
  2. Remove the oil pump drive chain tensioner pin (1).
    Fig 2: Oil Pump Drive Chain Tensioner And Pin
    GM4230655Courtesy of GENERAL MOTORS COMPANY
  3. Install the camshaft timing chain. Refer to Camshaft Timing Chain Replacement (LV7) .
