Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft timing chain. Refer to Camshaft Timing Chain Replacement (LV7) .
  2. Insert the oil pump drive chain tensioner pin (1) to the oil pump drive chain tensioner (2) to release the tension.
    Fig 1: Oil Pump Drive Chain Tensioner And Pin
    GM4230655Courtesy of GENERAL MOTORS COMPANY

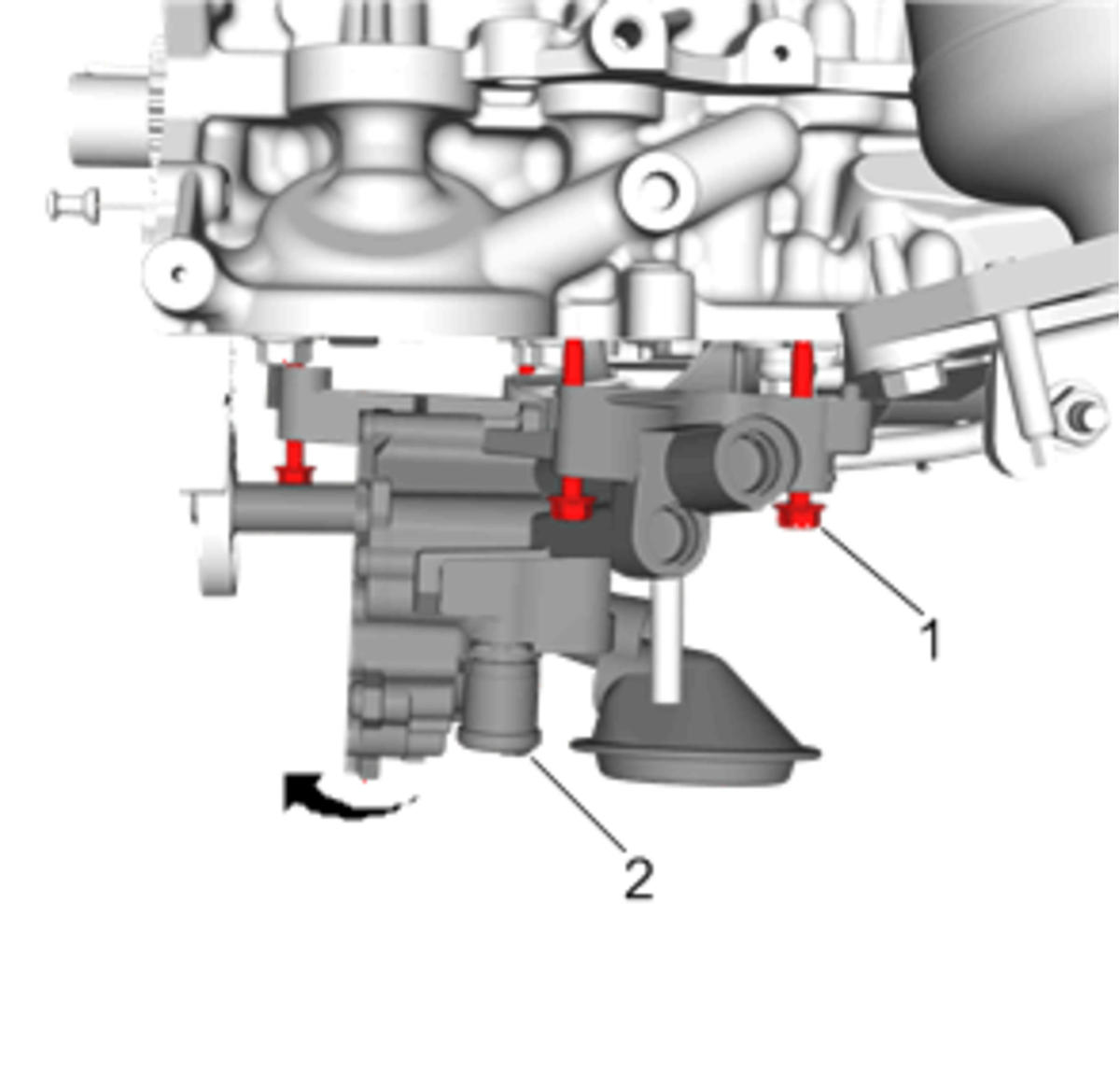

  3. Loosen the oil pump assembly bolts and tilt the oil pump assembly in order to remove the drive chain.
    Fig 2: Oil Pump Assembly And Bolts
    GM4230657Courtesy of GENERAL MOTORS COMPANY
  4. Remove the oil pump drive chain (1).
    Fig 3: Oil Pump Drive Chain
    GM4230658Courtesy of GENERAL MOTORS COMPANY
