Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Front Bumper Fascia Opening Lower Cover Replacement - Remove
  2. Front Compartment Insulator Replacement - Remove
  3. Exhaust Muffler Replacement (L5Q) - Remove
  4. Engine Oil and Oil Filter Replacement (L5Q)  - Remove

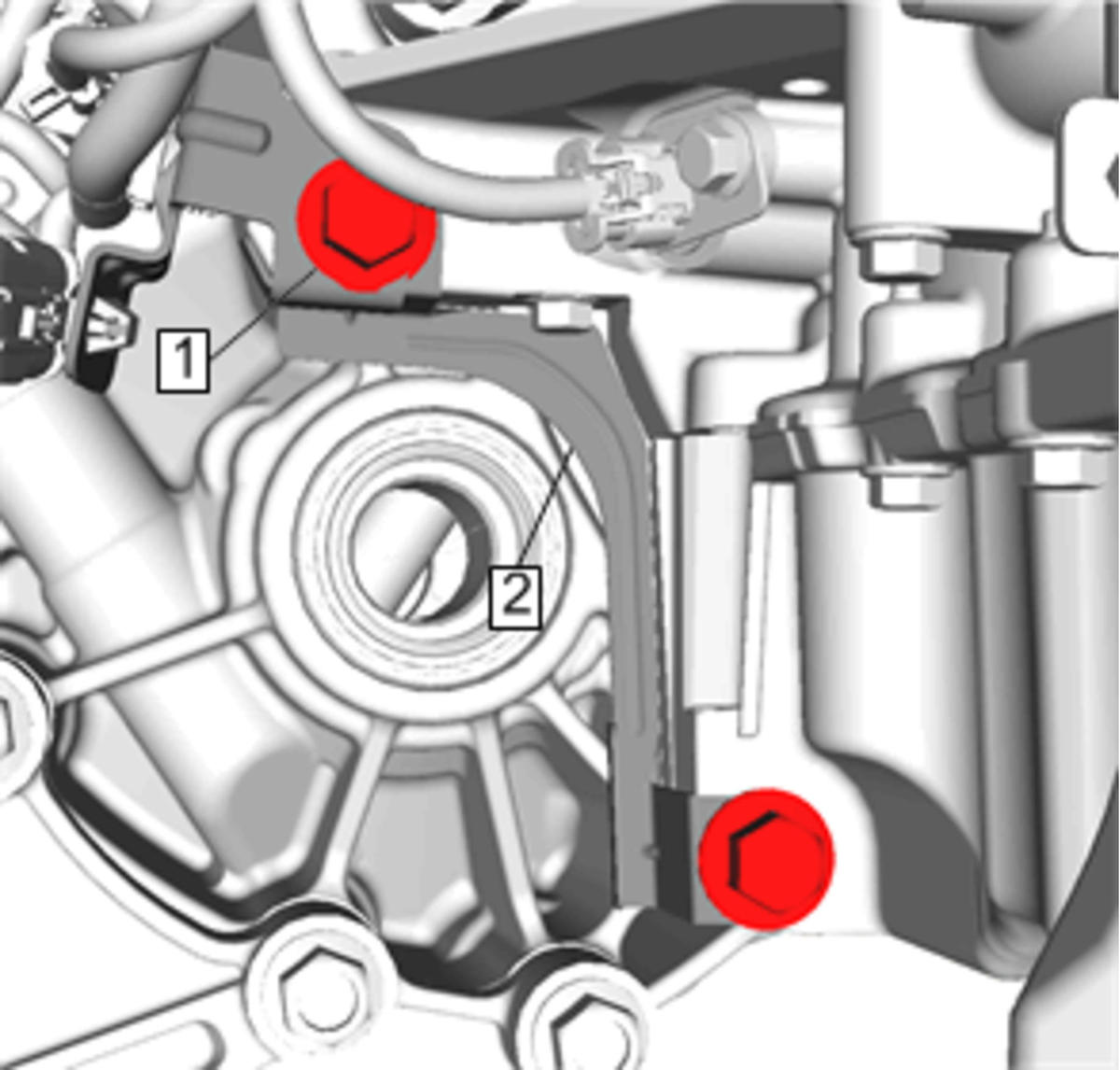

  5. Remove the transmission side cover and engine starter bracket bolts (1).
    Fig 1: Transmission Side Cover And Engine Starter Bracket Bolts
    GM4037008Courtesy of GENERAL MOTORS COMPANY
  6. Remove the transmission side cover (2).

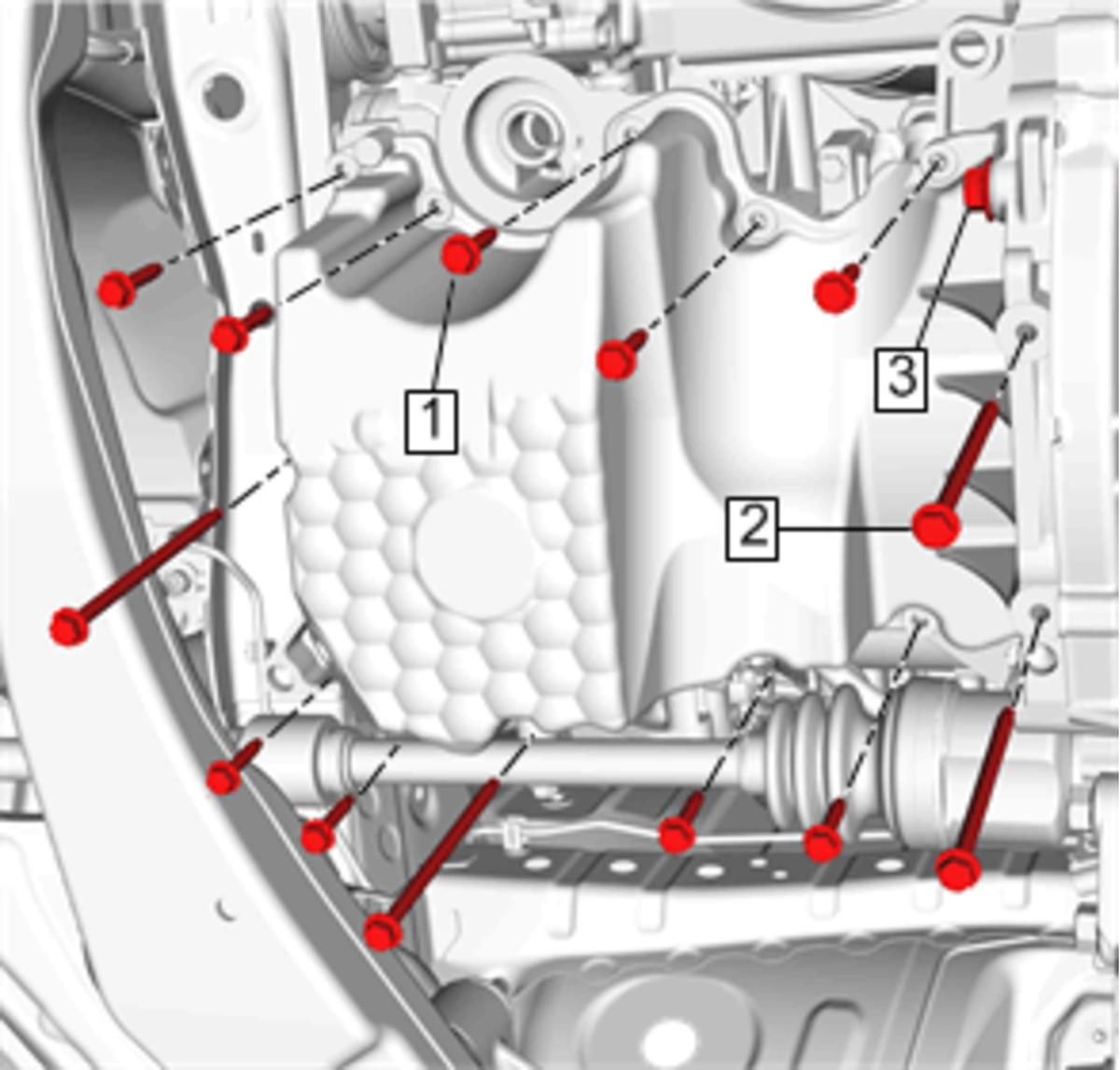

  7. Remove the 9 oil pan bolts (1), 4 oil pan bolts (2) and transmission lower bolt (3).
    Fig 2: Oil Pan Bolts And Transmission Lower Bolt
    GM4499151Courtesy of GENERAL MOTORS COMPANY

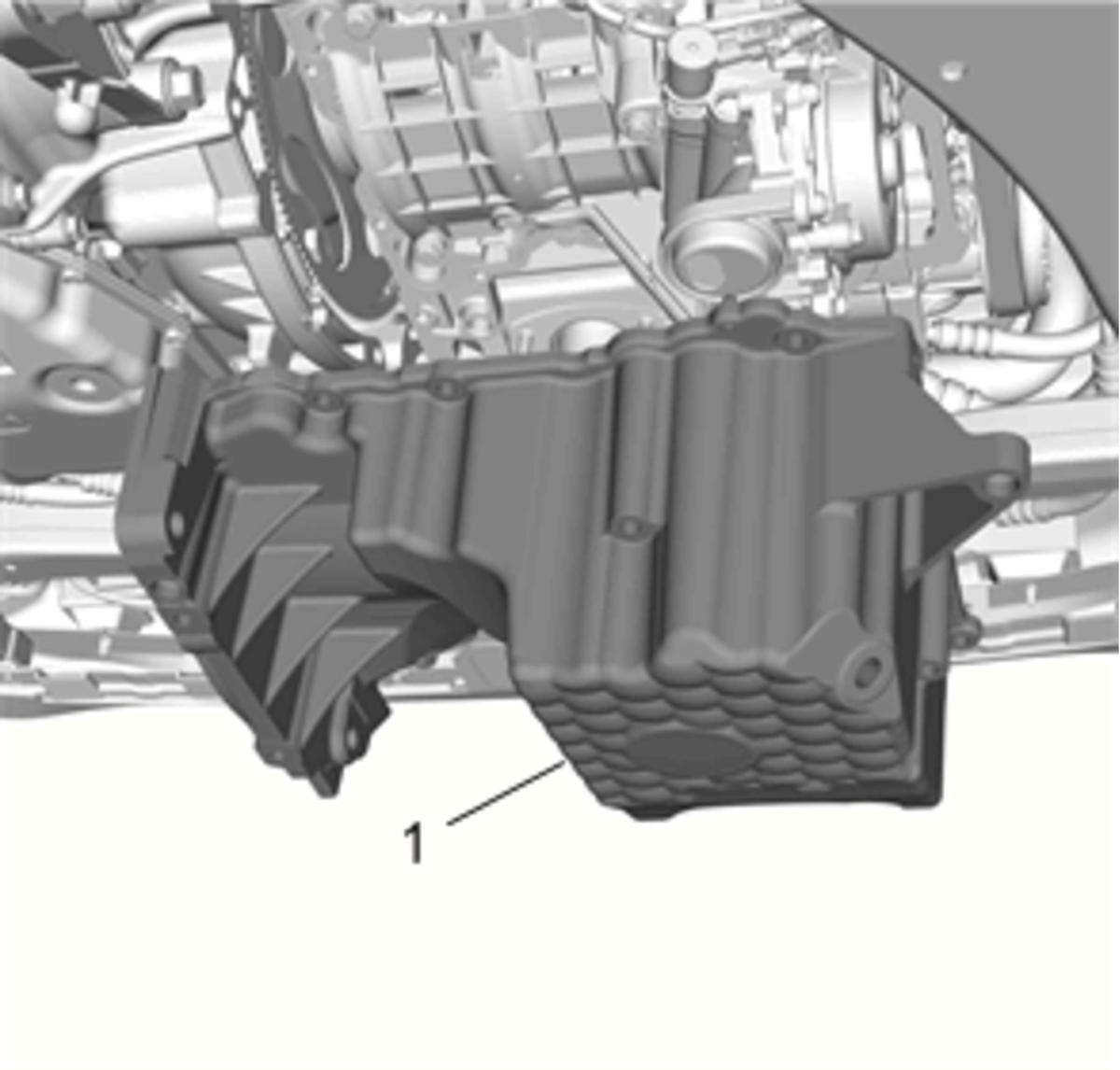

  8. Remove the oil pan (1).
    Fig 3: Oil Pan
    GM4499152Courtesy of GENERAL MOTORS COMPANY
