Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the 16 hydraulic valve lash adjusters (1) in the bores in the cylinder head.

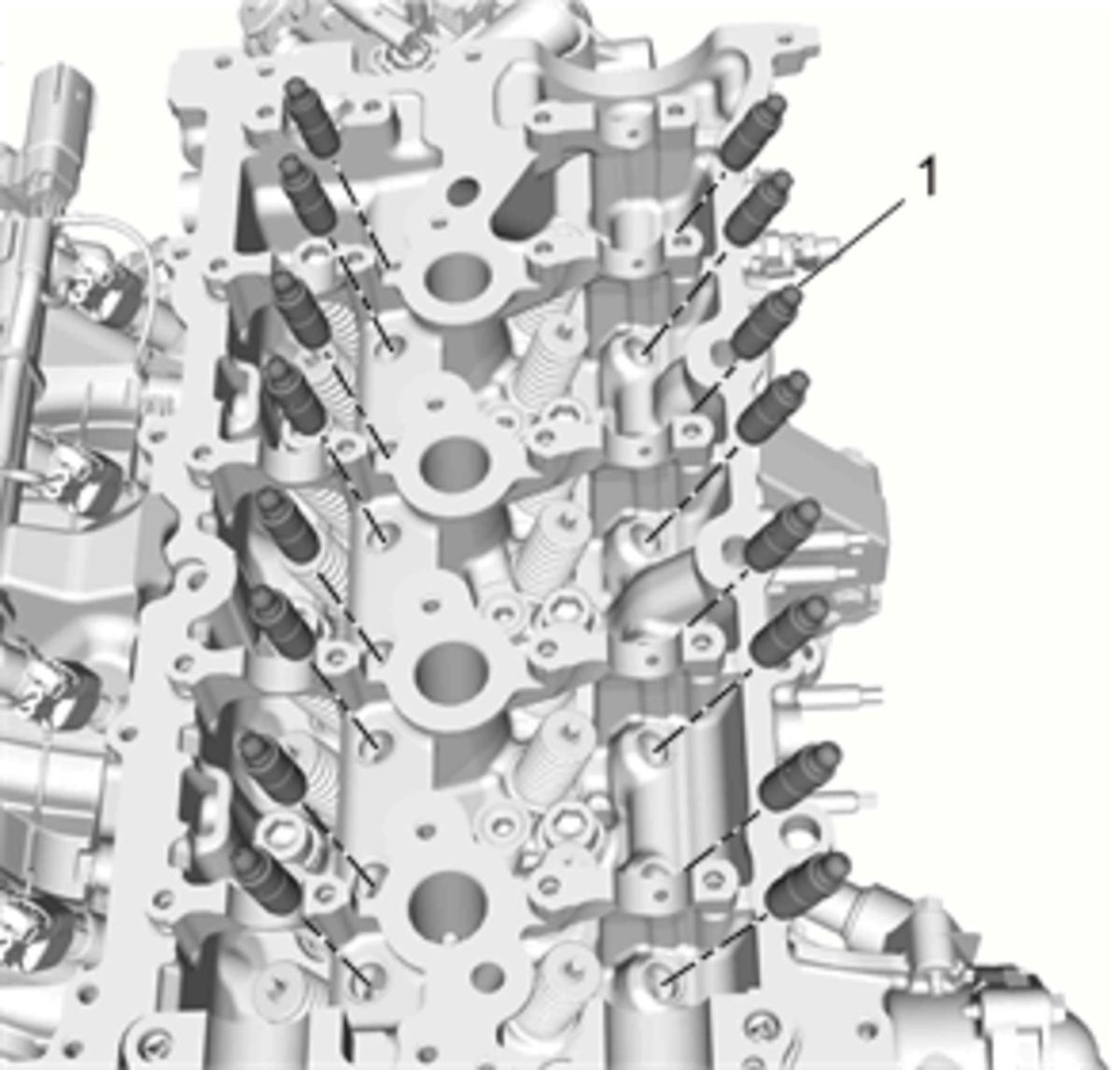

    Fig 1: Hydraulic Valve Lash Adjusters
    GM4230644Courtesy of GENERAL MOTORS COMPANY
  2. Apply lubricant to the 16 hydraulic valve lash adjusters (1). Refer to Adhesives, Fluids, Lubricants and Sealers (Europe LV7)Adhesives, Fluids, Lubricants and Sealers (North America LV7) .
  3. Install the hydraulic valve lash adjuster arm. Refer to Hydraulic Valve Lash Adjuster Arm Replacement (LV7) .
