Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Coat the exhaust camshaft with lubricant. Refer to Adhesives, Fluids, Lubricants and Sealers (Europe LV7)Adhesives, Fluids, Lubricants and Sealers (North America LV7) .

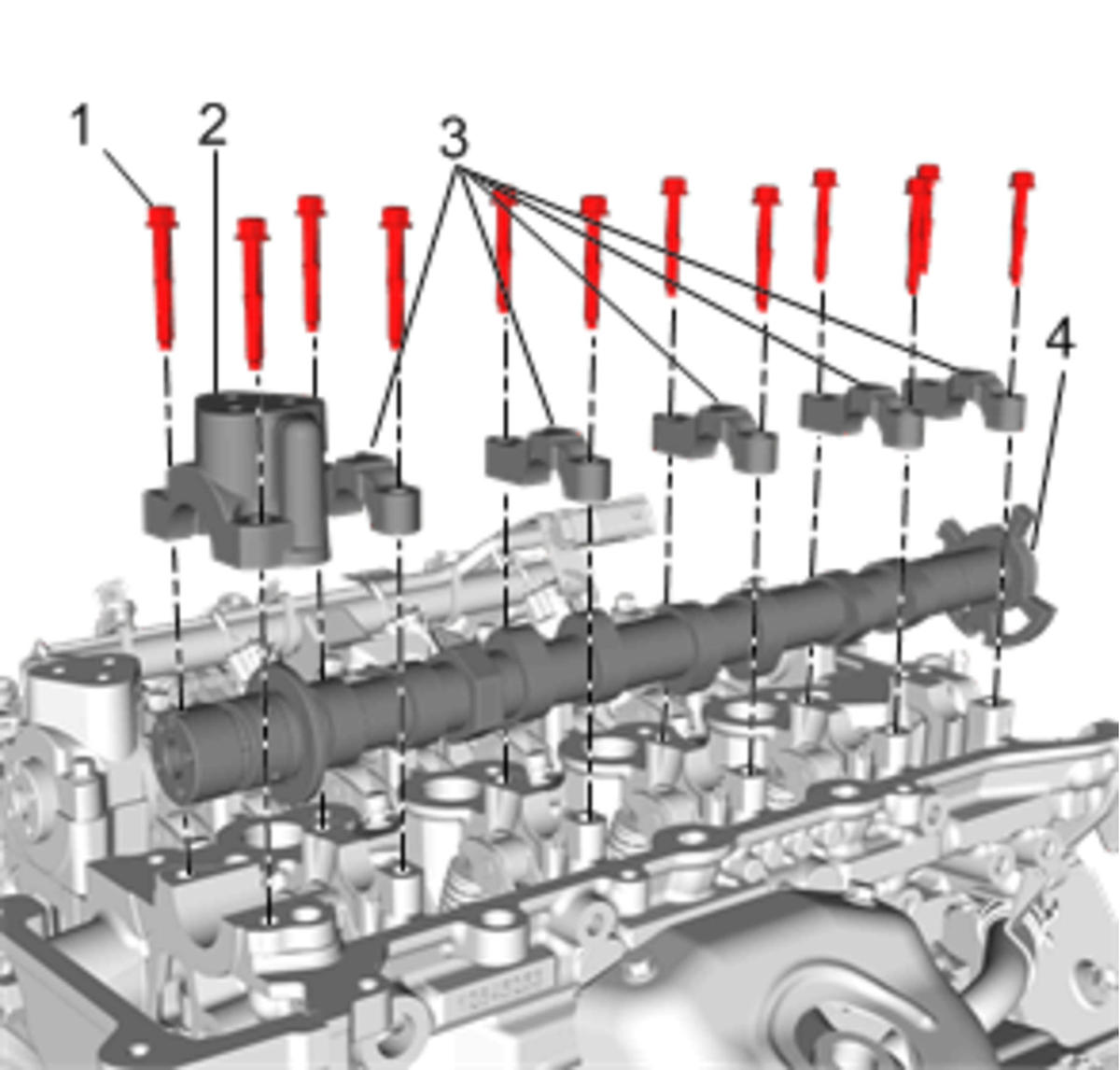

    Fig 1: Exhaust Camshaft, Exhaust Camshaft Bearing Caps And Bolts
    GM4230643Courtesy of GENERAL MOTORS COMPANY
  2. Install the exhaust camshaft in the cylinder head.
  3. Ensure that the camshaft notch at the front of the camshaft is in the 12 O'clock position before installing the camshaft caps.
  4. Lubricate the 5 camshaft bearing caps (2, 3) and the 12 camshaft bearing cap bolts (3). Refer to Adhesives, Fluids, Lubricants and Sealers (Europe LV7)Adhesives, Fluids, Lubricants and Sealers (North America LV7) .
    NOTE: Observe the markings on the bearing caps. Each bearing cap is marked in order to identify its location. Ensure the caps are installed in the original location and position.
  5. Install the camshaft bearing cap (3).
  6. Install the camshaft bearing front cap (2).
  7. Loosely install the 12 camshaft bearing cap bolts (1) by hand.
