Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 3 EN-51007-6  adapters (1) from the 3 engine lift brackets (2).
    Fig 1: Engine Support Fixture And Adapters
    GM4044931Courtesy of GENERAL MOTORS COMPANY
  2. Loosen the 2 EN-51007-4  adapters (3).
    Fig 2: Engine Support Fixture Adapters
    GM4044934Courtesy of GENERAL MOTORS COMPANY
  3. Remove the 2 EN-51007-3  adapters from the EN-51007-1  adapter (1).
    NOTE: A second technician is required.
  4. Remove the EN-51007-1  adapter (1).
    Fig 3: Engine Support Fixture Adapters
    GM4044932Courtesy of GENERAL MOTORS COMPANY
  5. Clean the contact surfaces from the EN-51007-5  adapters on the front end upper tie bar with solvent.
  6. Remove the bolt (1).

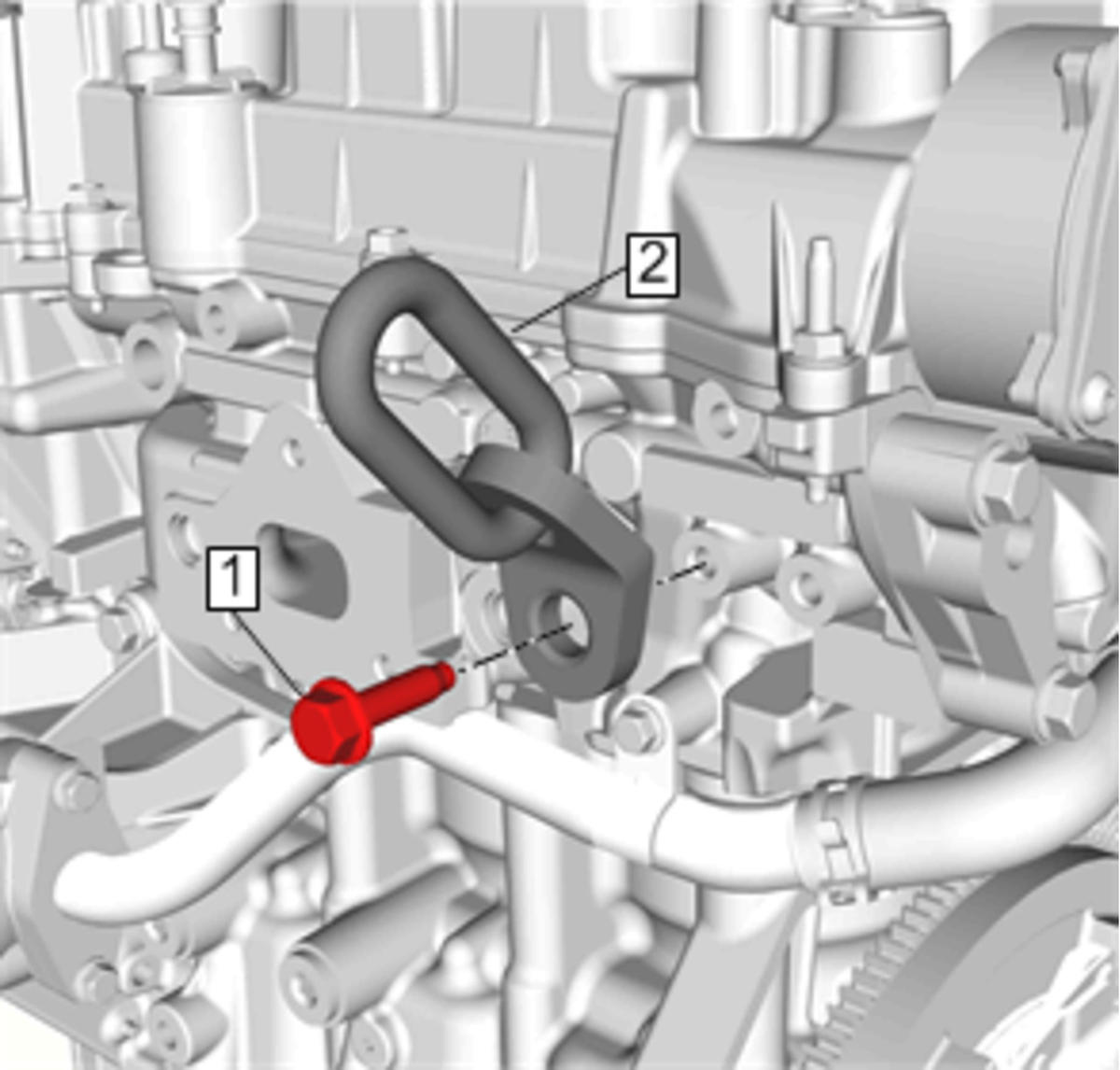

    Fig 4: Engine Lift Bracket And Bolt
    GM4203467Courtesy of GENERAL MOTORS COMPANY
    NOTE: For engine L5Q without engine lift front bracket.
  7. Remove the J-36857  engine lift bracket (2).
  8. Clean the contact surfaces from the EN-51007-5  adapters on the front end upper tie bar with solvent.
  9. Install the surge tank fixing bolts (1) and tighten to 5 N.m (44 lb in).
    Fig 5: Surge Tank And Fixing Bolts
    GM4045051Courtesy of GENERAL MOTORS COMPANY
