Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine lift rear bracket (2).

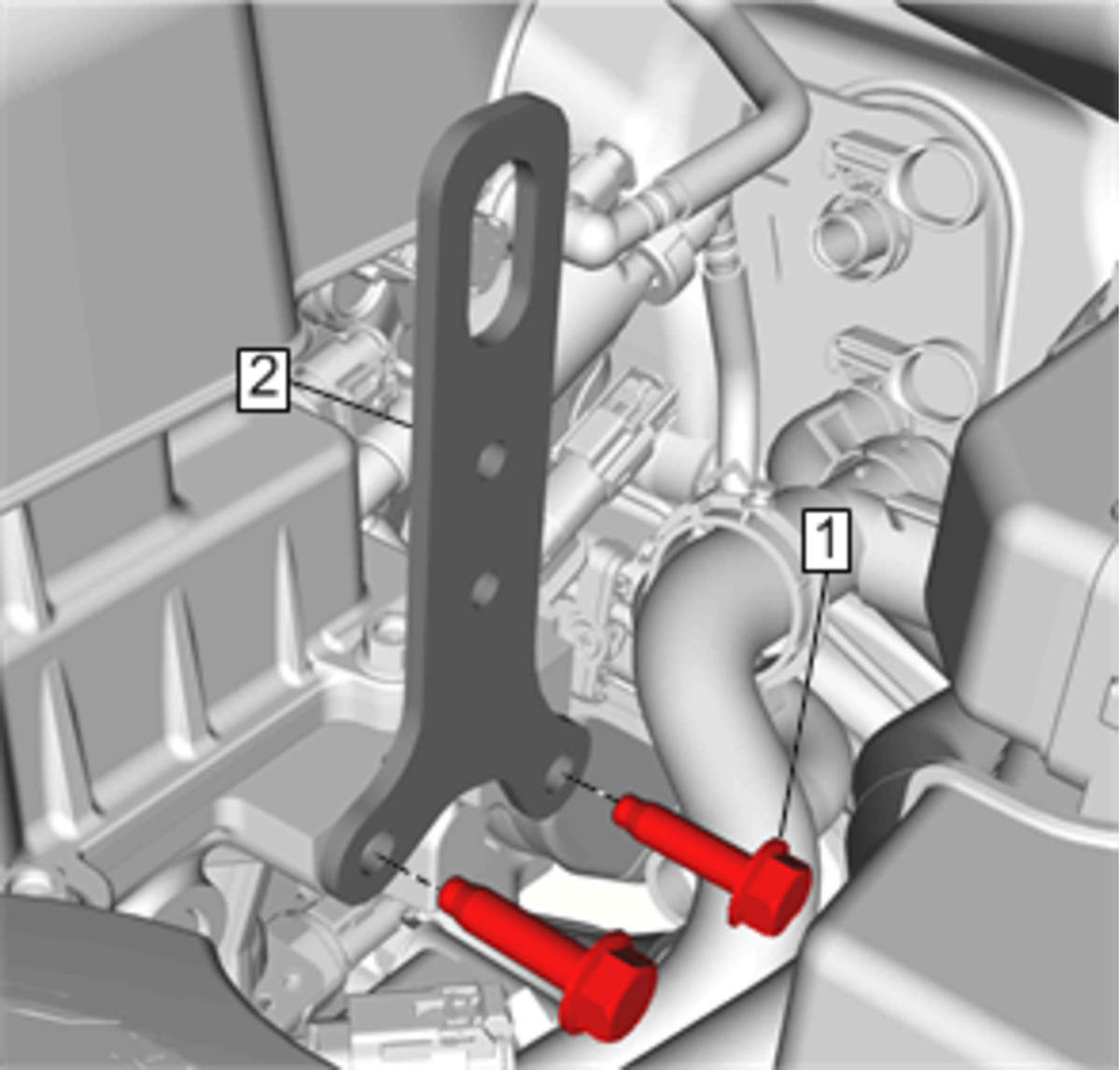

    Fig 1: Engine Lift Rear Bracket And Bolts
    GM4230635Courtesy of GENERAL MOTORS COMPANY
  2. Install the engine lift rear bracket bolts (1) and tighten to 25 N.m (18 lb ft).
  3. Install the engine wiring harness bracket (2) and bolt (1).

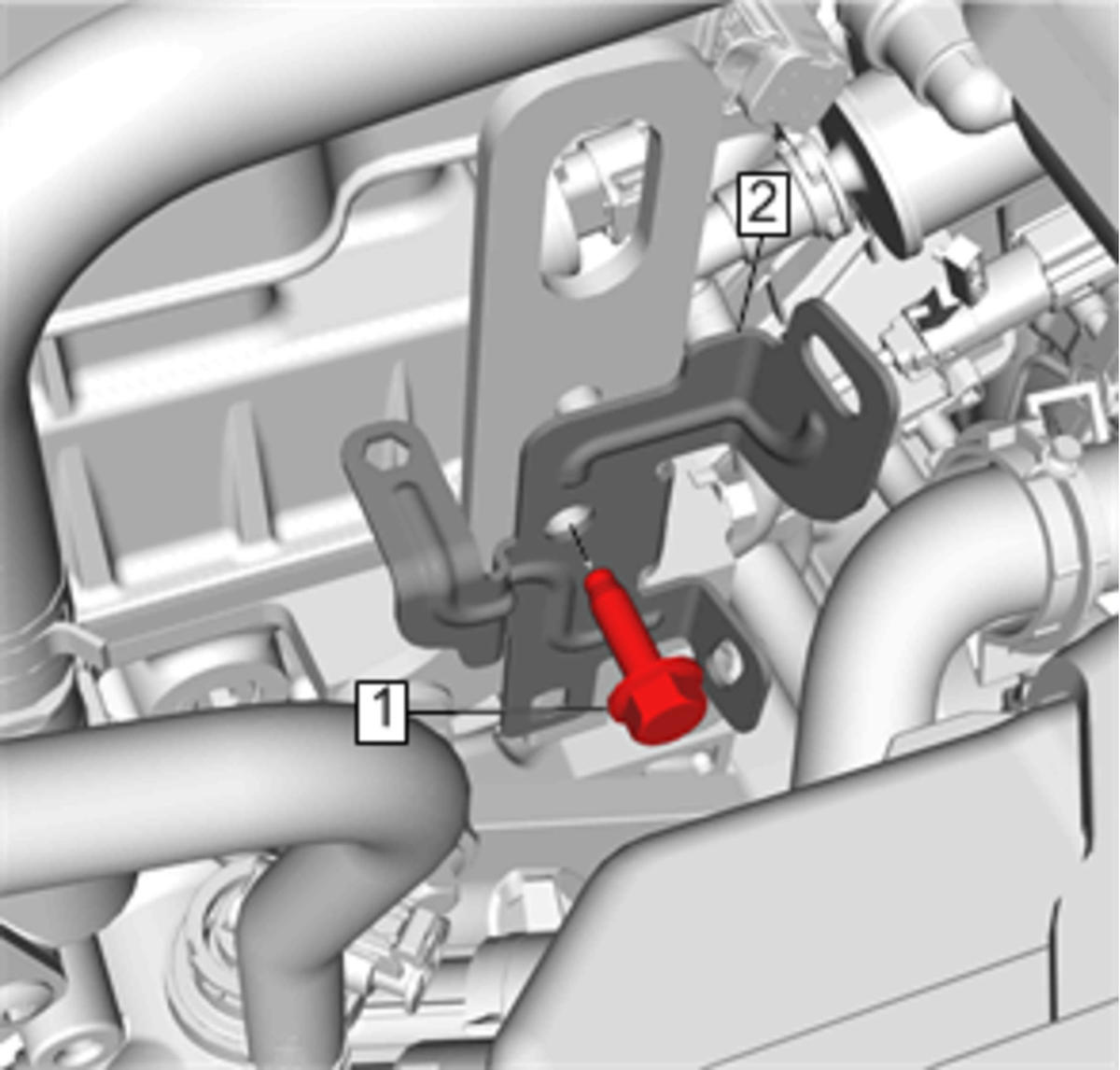

    Fig 2: Engine Wiring Harness Bracket And Bolt
    GM4230634Courtesy of GENERAL MOTORS COMPANY
  4. Tighten to 10 N.m (83 lb in).
  5. Install the wiring harness retainer (1, 2) to engine wiring harness bracket.

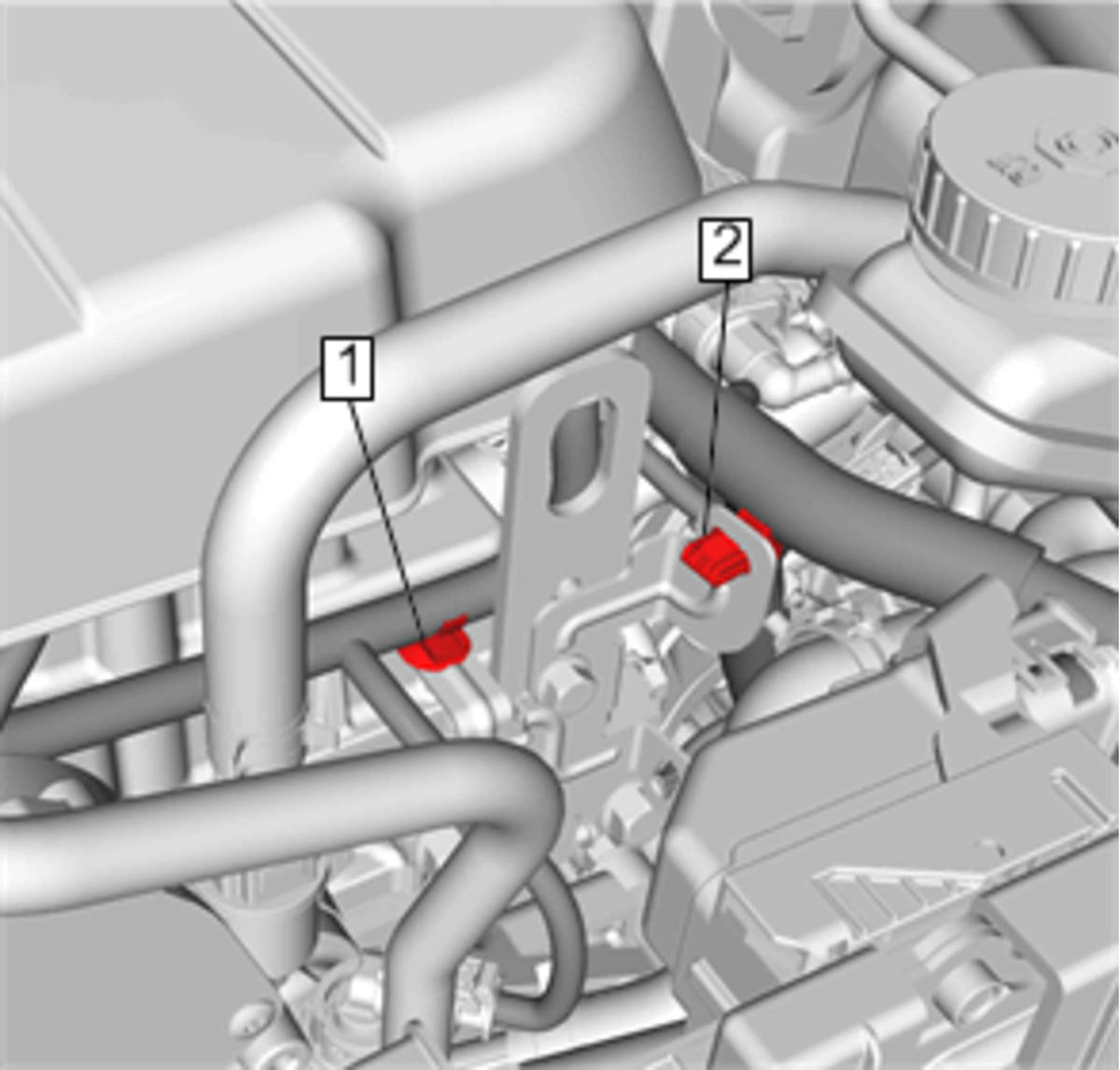

    Fig 3: Wiring Harness Retainers
    GM4230633Courtesy of GENERAL MOTORS COMPANY
  6. Close the hood.
