Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the engine lift front bracket (2).

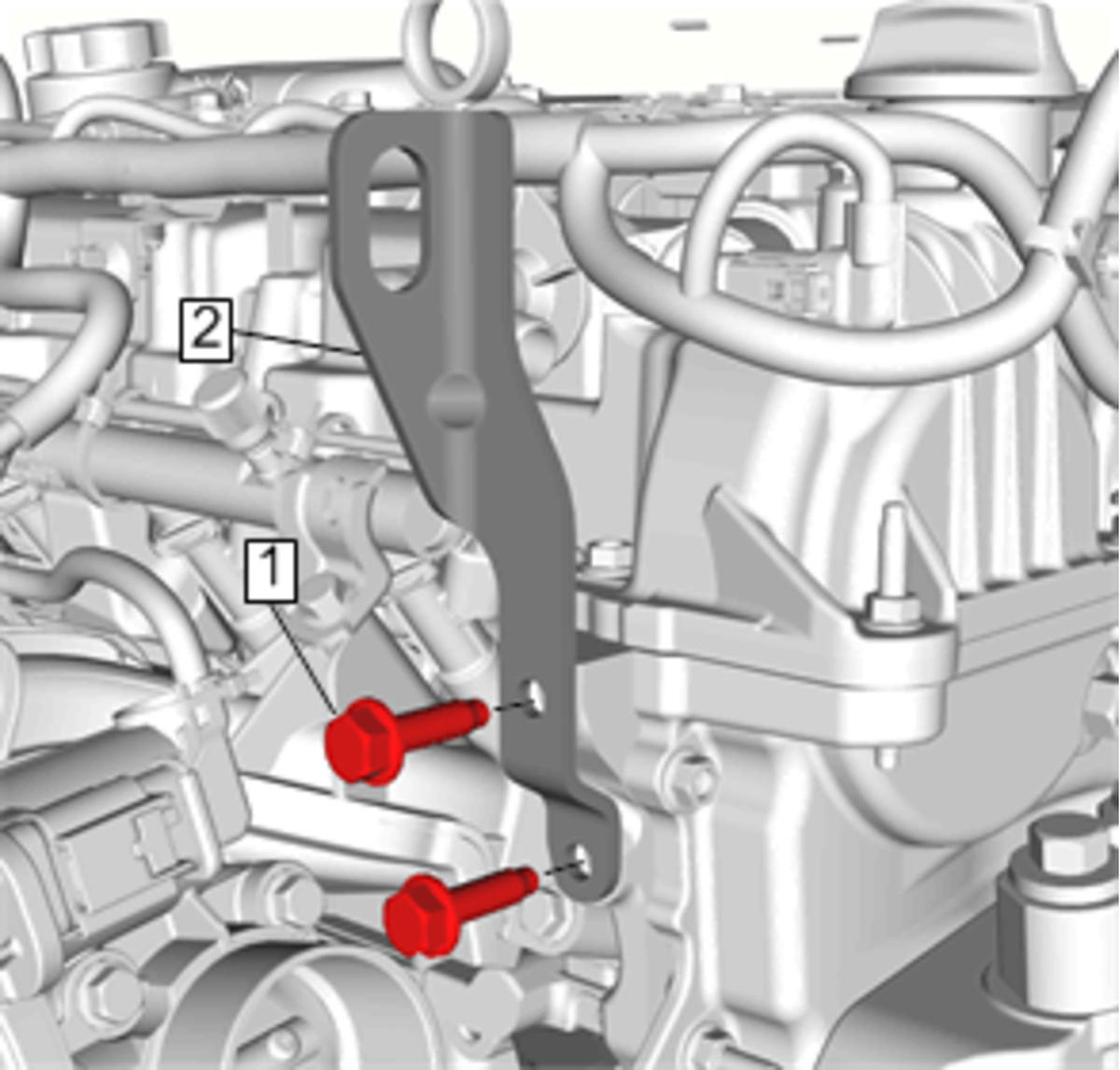

    Fig 1: Engine Lift Front Bracket And Bolt
    GM4230632Courtesy of GENERAL MOTORS COMPANY
  2. Install the engine lift front bracket bolt (1) and tighten to 25 N.m (18 lb ft)
    CAUTION: Refer to Fastener Caution .
  3. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (LV7) .
