Drive Belt Replacement (L5Q)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

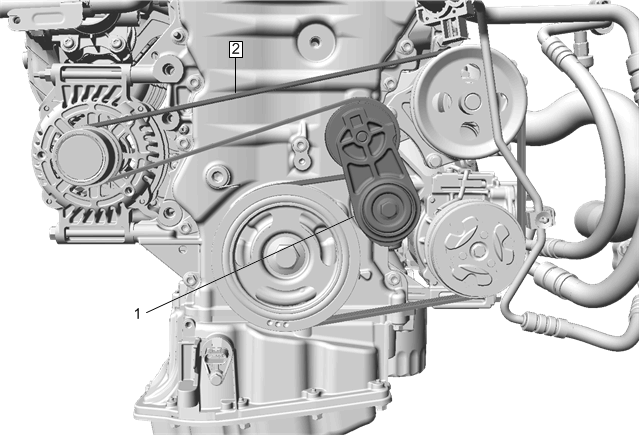

Fig 1: Drive Belt Routing And Components (L5Q)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Support and raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the Front Bumper Fascia Opening Lower Cover Replacement. Refer to Front Bumper Fascia Opening Lower Cover Replacement .
1	Drive Belt Tensioner Procedure Rotate the drive belt tensioner (1) counterclockwise by using an extensional tool or suitable tool.
2	Drive Belt

Callout

Component Name

Preliminary Procedure

Support and raise the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the Front Bumper Fascia Opening Lower Cover Replacement. Refer to Front Bumper Fascia Opening Lower Cover Replacement .

Drive Belt Tensioner
Procedure
Rotate the drive belt tensioner (1) counterclockwise by using an extensional tool or suitable tool.

Drive Belt
