Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Crankshaft Balancer (1) @ Crankshaft (2) - Install

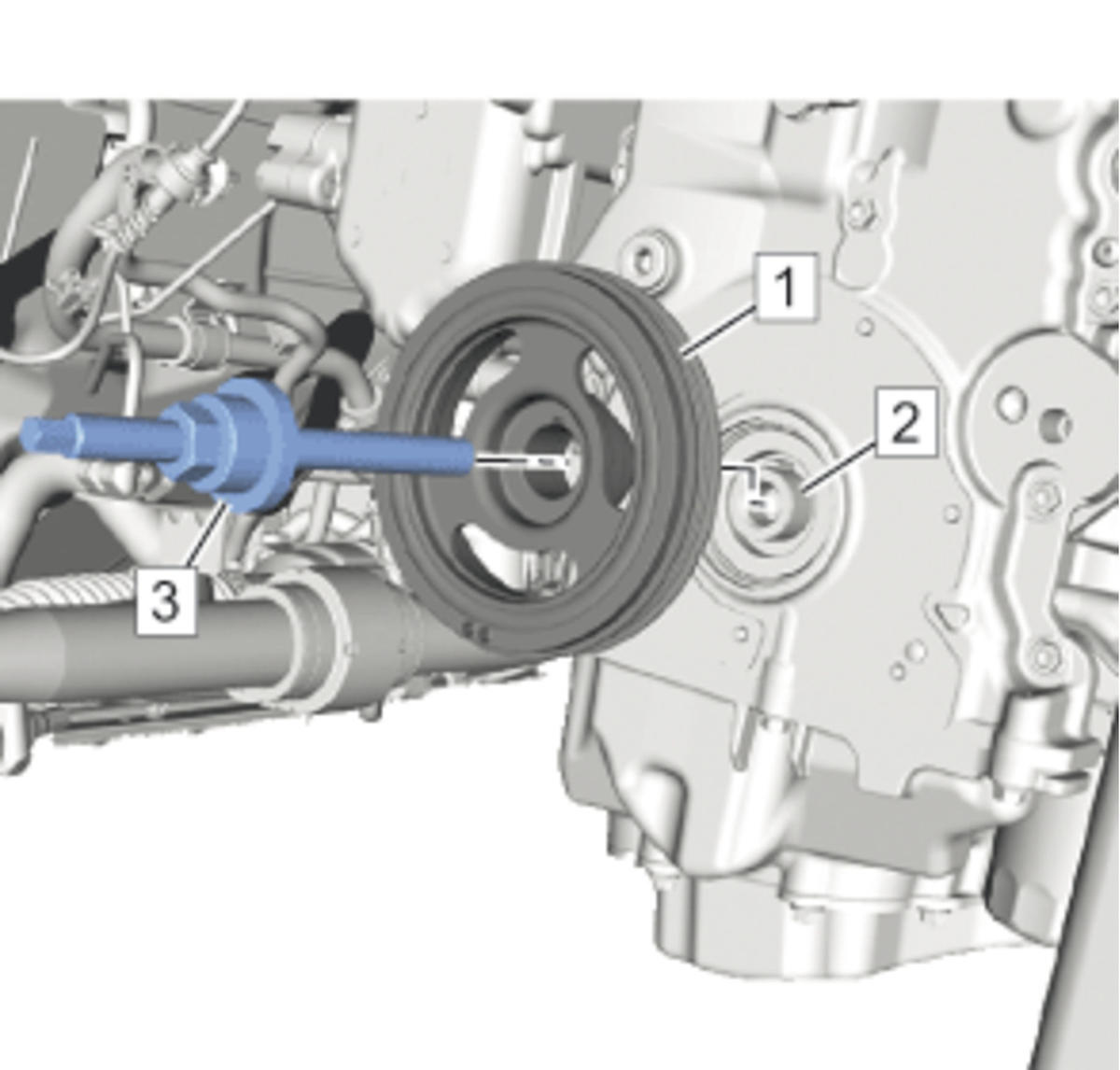

    Fig 1: Crankshaft Balancer And Installer Tool
    GM4091235Courtesy of GENERAL MOTORS COMPANY
  2. Make sure that the key is properly seated on crankshaft balancer notch.
  3. Install the EN-51368  installer (3).
  4. Install the crankshaft balancer by screwing the flange from EN-51368  installer.
  5. Remove the EN-51368  installer (3).
  6. Install and hand tighten the crankshaft balancer bolt (3).
    Fig 2: Crankshaft Balancer, Special Tools And Bolt
    GM3686986Courtesy of GENERAL MOTORS COMPANY
  7. Install the EN-44226-1  remover (2) to the crankshaft balancer (1).
  8. Tighten the crankshaft balancer bolt (3) by counter holding the crankshaft balancer (1) with the EN-44226-1  remover (3) and torque wrench.
    CAUTION: Refer to Fastener Caution .
    CAUTION: Refer to Torque-to-Yield Fastener Caution .
    1. First pass to 100 N.m (74 lb ft)
    2. Loosen the bolt to 360 degrees
    3. Final pass to an additional 180 degrees, using the EN-45059  meter
  9. Remove EN-44226-1  remover (2) from the crankshaft balancer (1).
  10. Install the drive belt. Refer to Drive Belt Replacement (LV7) .
