Steering Wheel Spoke Lower Cover Replacement
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the airbag steering wheel module. Refer to Airbag Steering Wheel Module Replacement . |
|

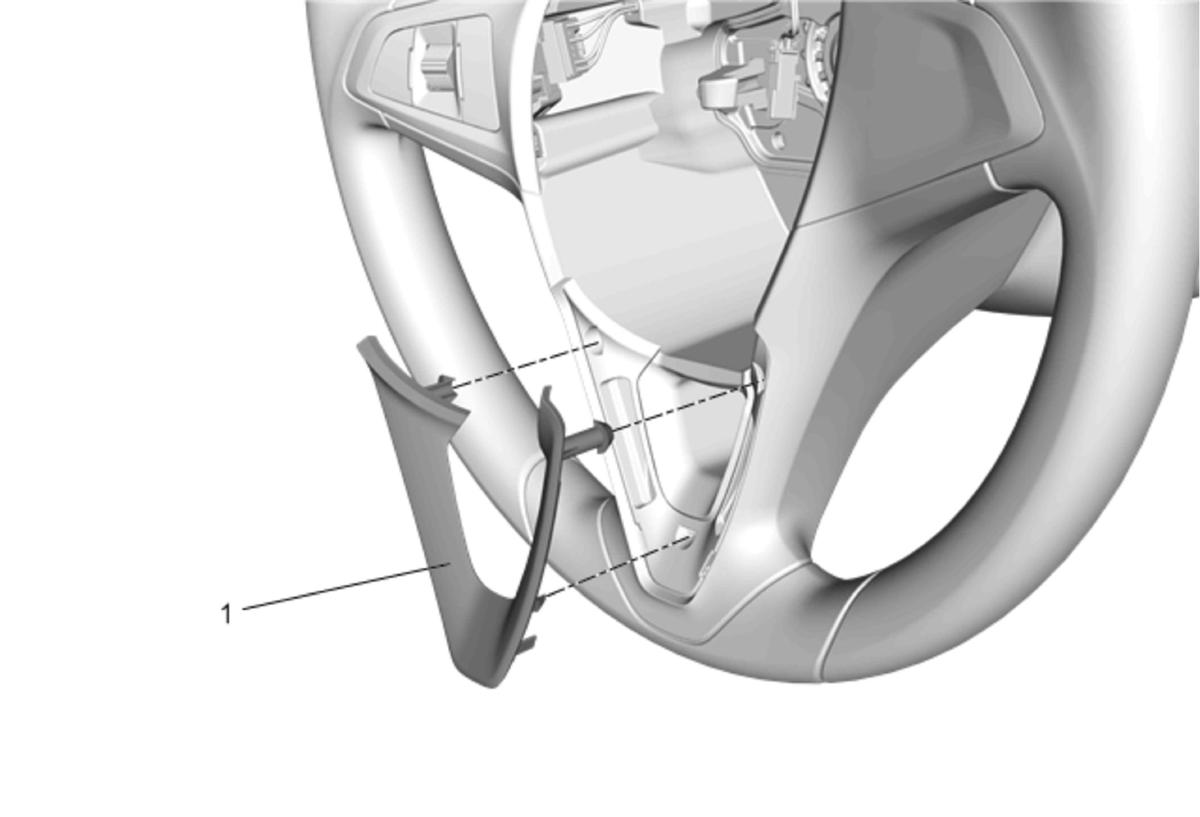

| 1 | Steering Wheel Spoke Lower Cover Procedure Use the appropriate tool to gently release the retaining tabs on the cover.
NOTE:
Gently release tabs one by one, using care to avoid snapping the tab off.
|
