Steering Wheel Spoke Control Switch Bezel Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

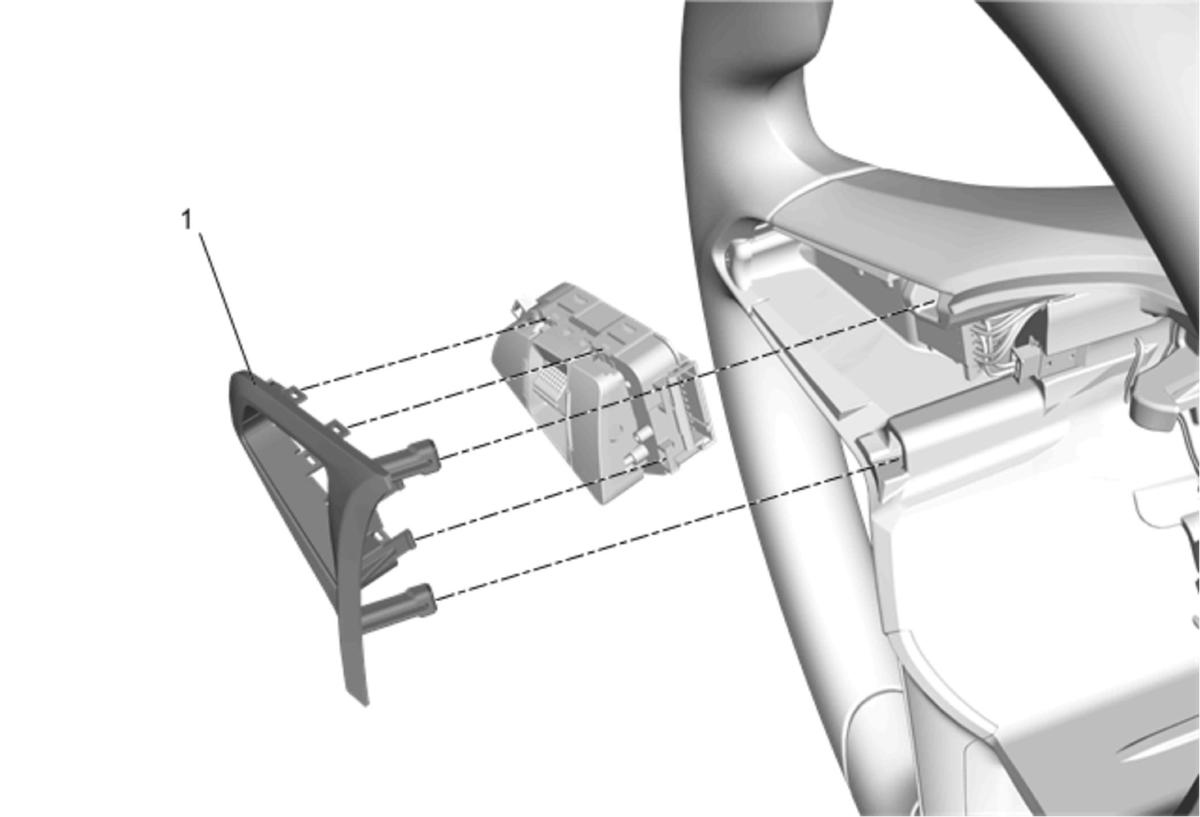

Fig 1: Steering Wheel Spoke Control Switch Bezel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the airbag steering wheel module. Refer to Airbag Steering Wheel Module Replacement .
1	Steering Wheel Spoke Cover Switch Bezel Procedure Remove the switch bezel and the switch assembly together. Use the appropriate tool to gently release the retaining tabs on the cover. Detach the switch bezel from the switch assembly. NOTE: Gently release tabs one by one, using care to avoid snapping the tab off.

Callout

Component Name

Preliminary Procedure
Remove the airbag steering wheel module. Refer to Airbag Steering Wheel Module Replacement .

Steering Wheel Spoke Cover Switch Bezel

Procedure

Remove the switch bezel and the switch assembly together.
Use the appropriate tool to gently release the retaining tabs on the cover.
Detach the switch bezel from the switch assembly.

NOTE: Gently release tabs one by one, using care to avoid snapping the tab off.
