Steering Wheel Pad Accessory Wiring Harness Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

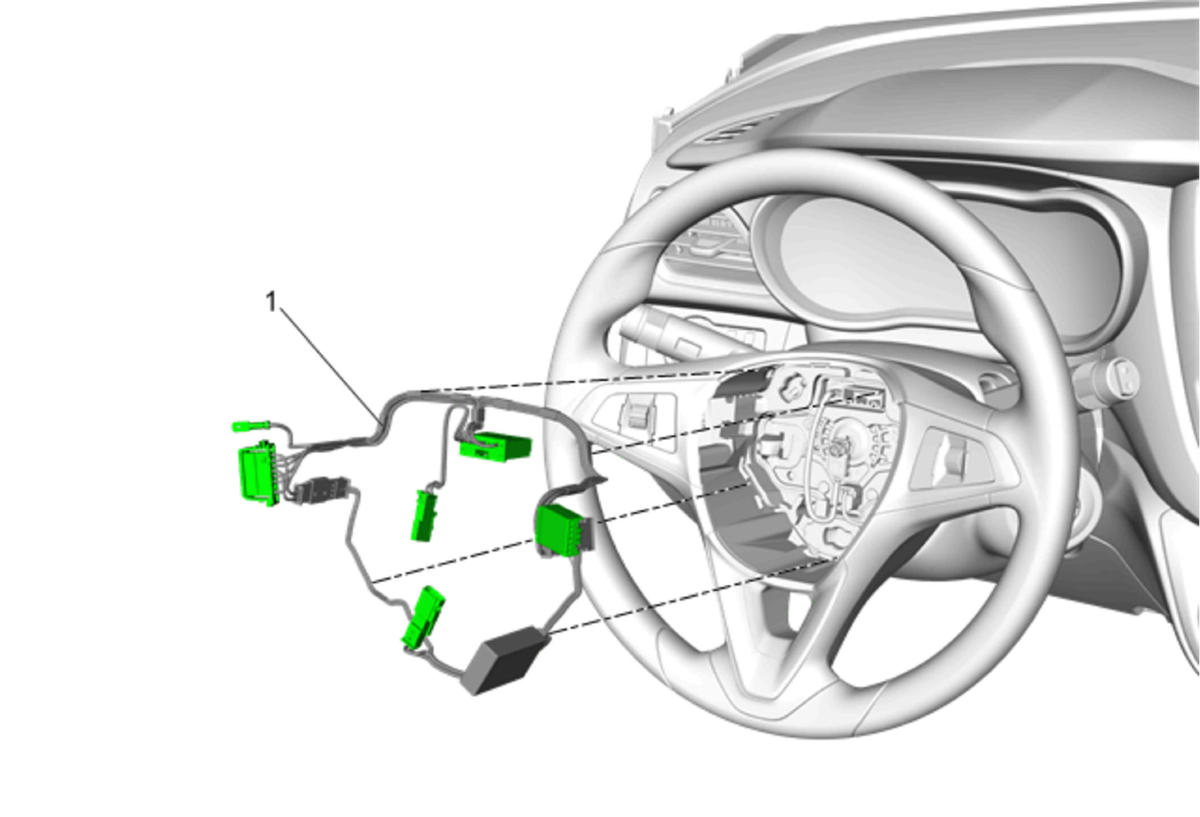

Fig 1: Steering Wheel Pad Accessory Wiring Harness

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the airbag steering wheel module. Refer to Airbag Steering Wheel Module Replacement .
1	Steering Wheel Pad Accessory Wiring Harness Procedure Disconnect the electrical connectors. Release harness from securing tabs.

Callout

Component Name

Preliminary Procedures
Remove the airbag steering wheel module. Refer to Airbag Steering Wheel Module Replacement .

Steering Wheel Pad Accessory Wiring Harness

Procedure

Disconnect the electrical connectors.
Release harness from securing tabs.
