Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ignition lock cylinder opening cover (2) to the steering column trim cover.

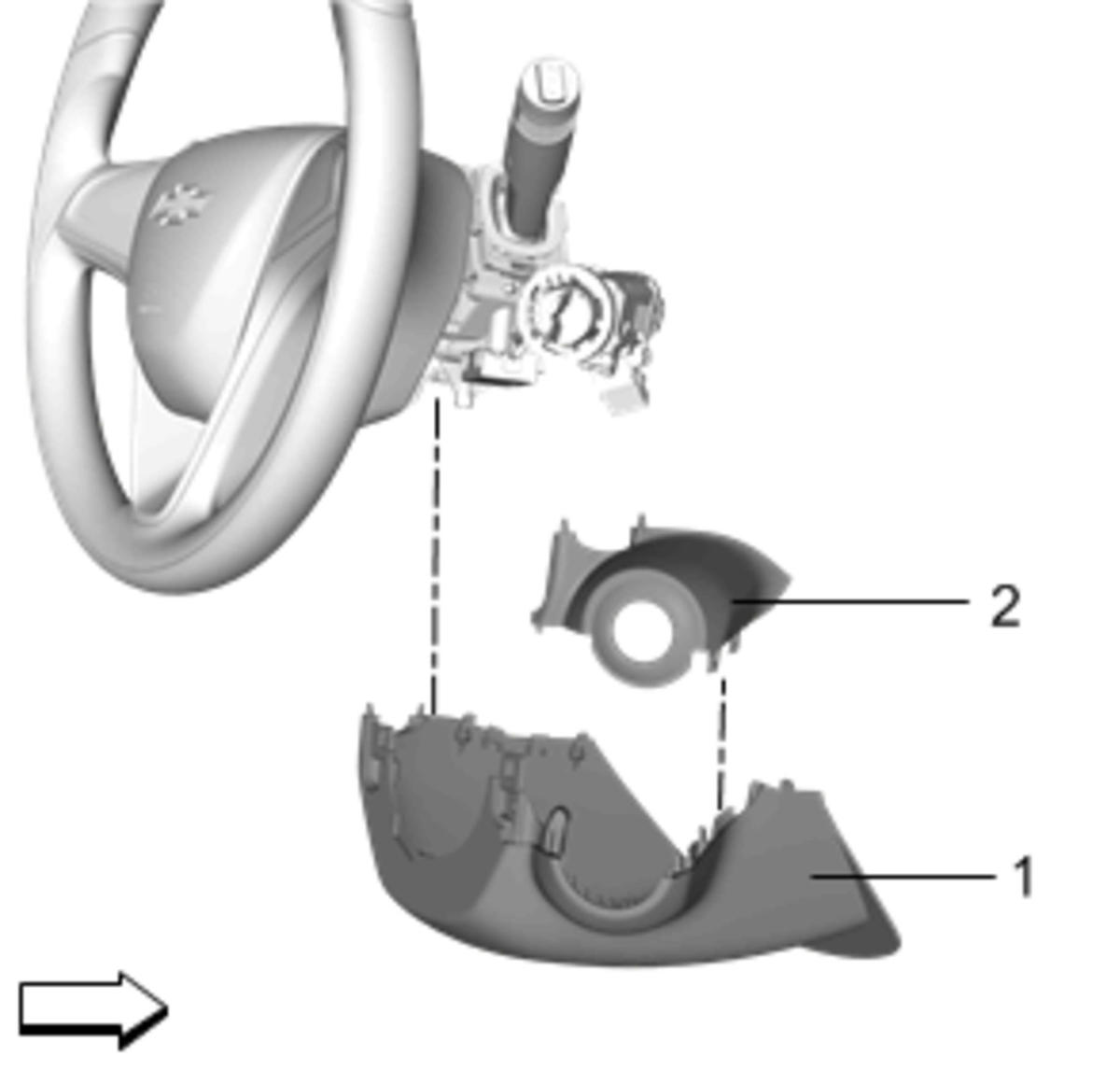

    Fig 1: Steering Column Lower Trim Cover
    GM4116984Courtesy of GENERAL MOTORS COMPANY
  2. Install the steering column lower trim cover (1).
  3. Install the steering column lower trim cover screw (1).

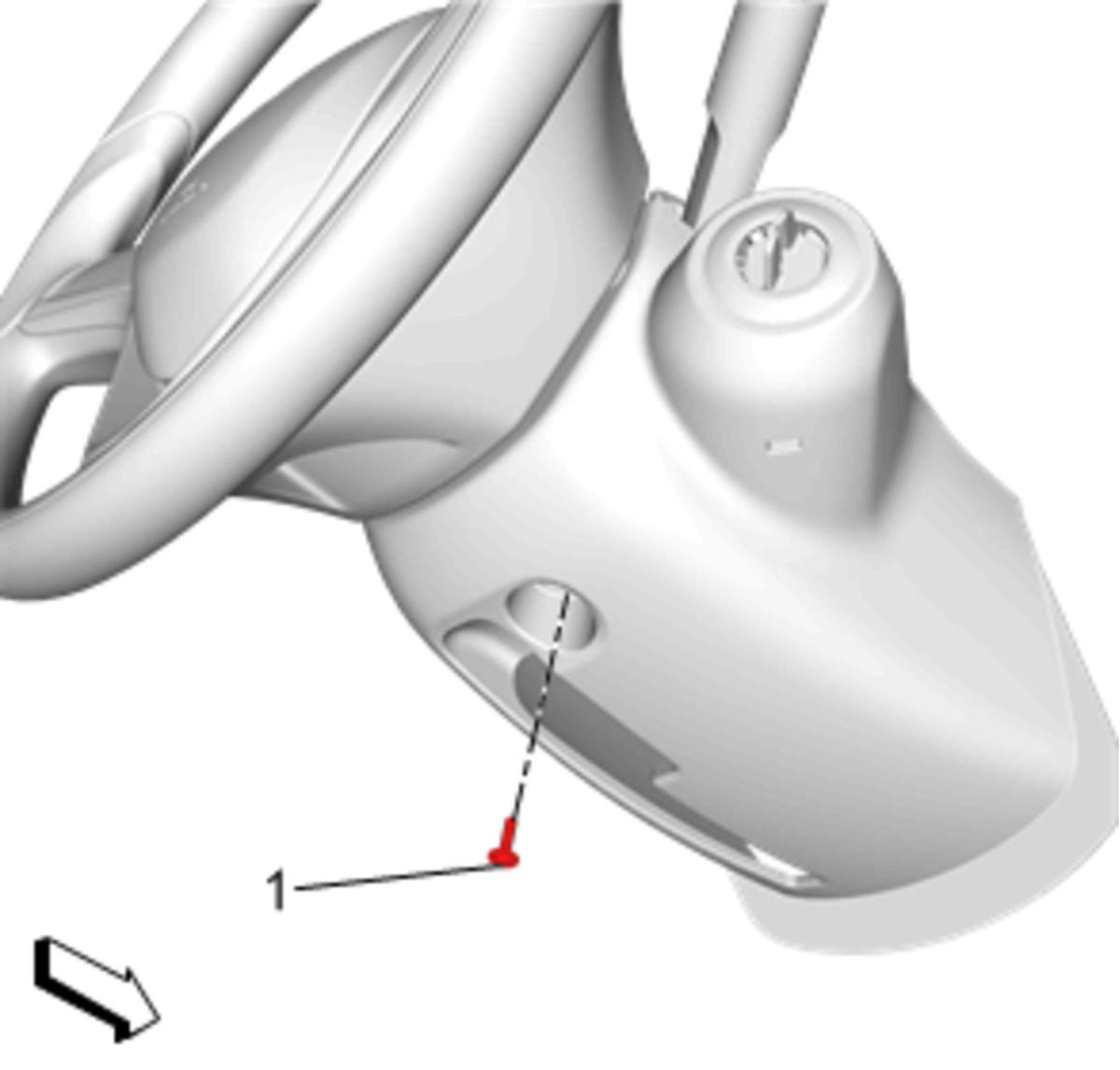

    Fig 2: Steering Column Lower Trim Cover Screw
    GM4116983Courtesy of GENERAL MOTORS COMPANY
    CAUTION: Refer to Fastener Caution .
  4. Install the steering column lower trim cover screw (1).

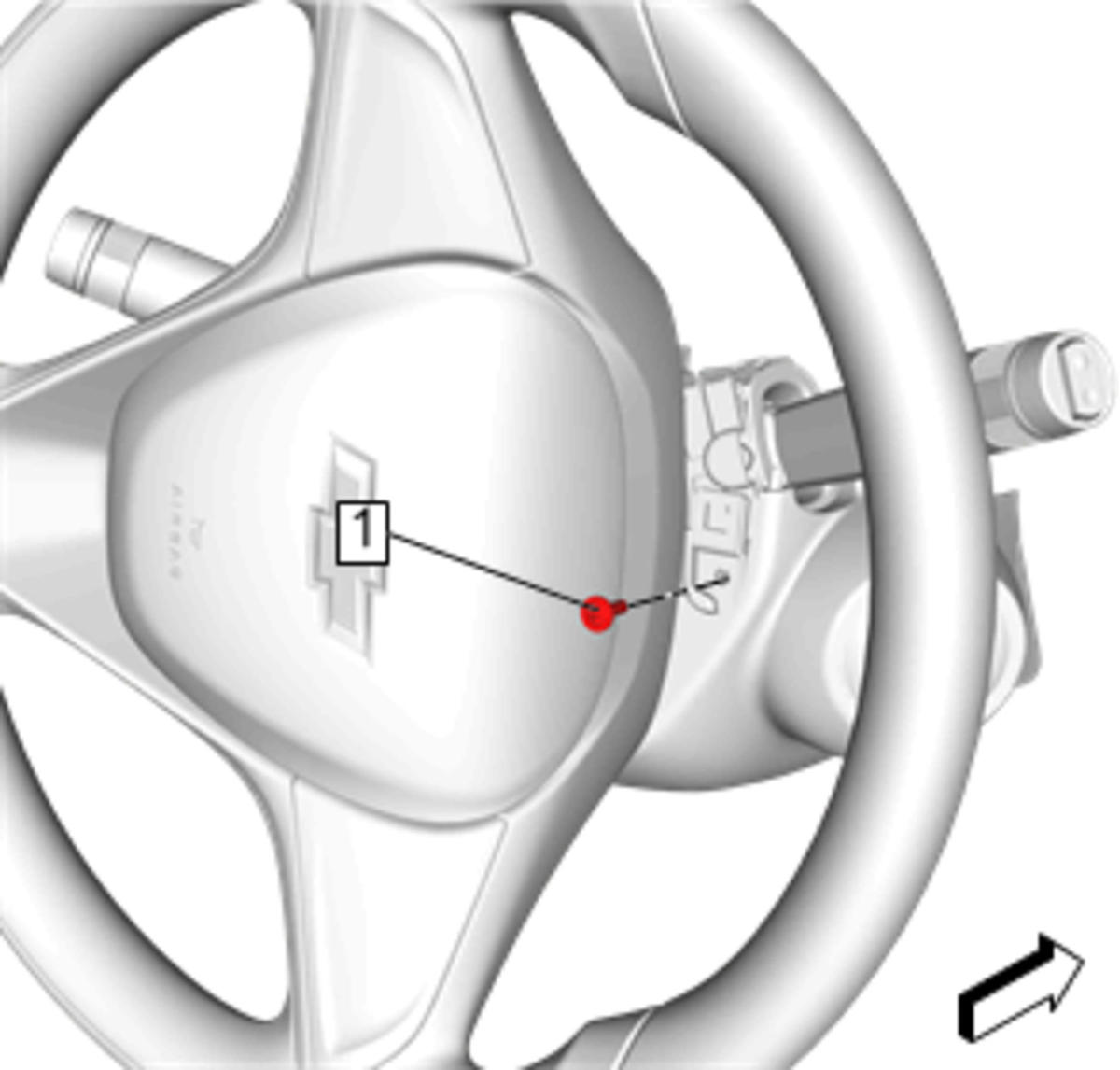

    Fig 3: Steering Column Lower Trim Cover Screw
    GM4116981Courtesy of GENERAL MOTORS COMPANY
  5. Install the steering column lower trim cover screw (1).

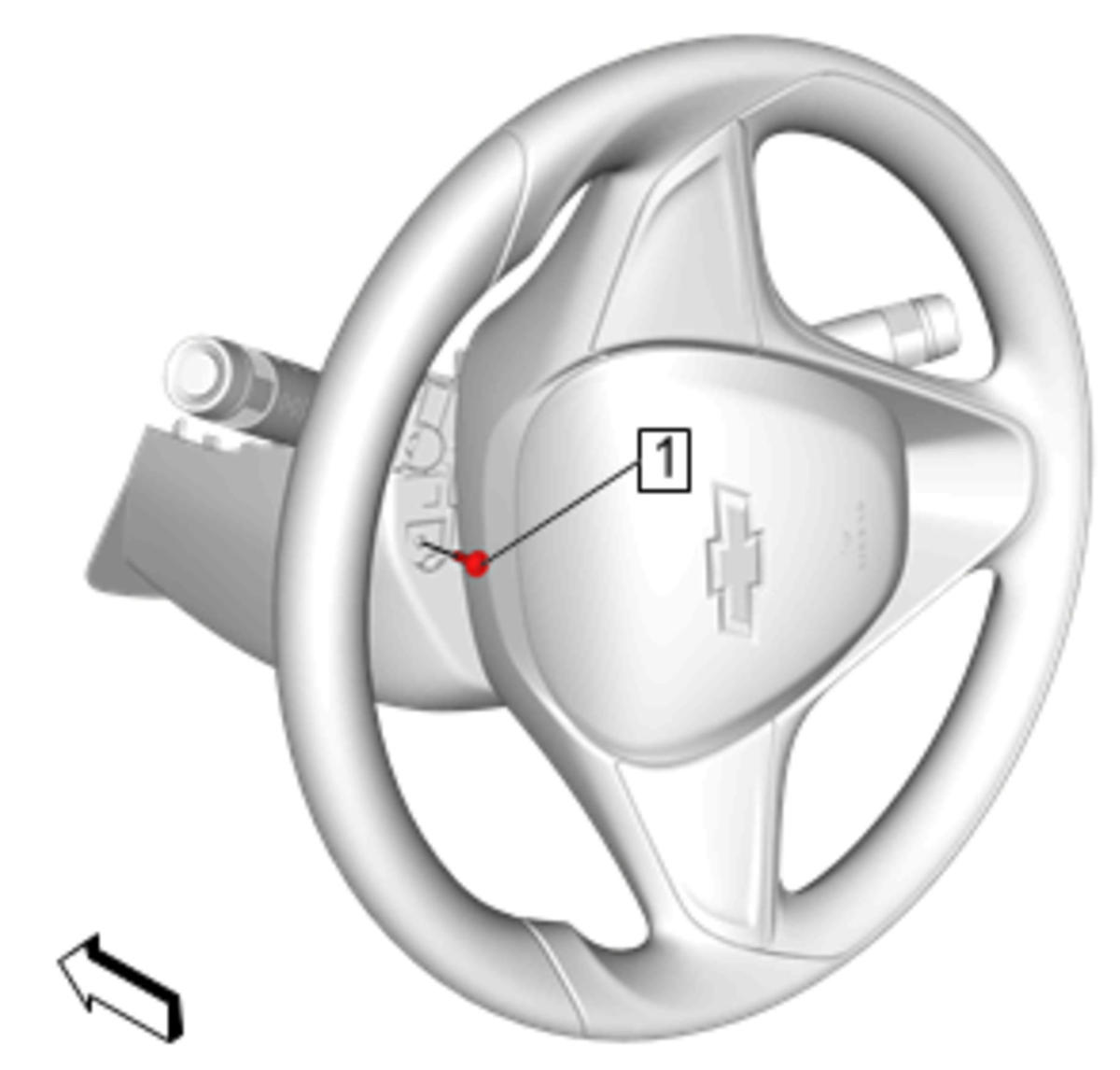

    Fig 4: Steering Column Lower Trim Cover Screw
    GM4116980Courtesy of GENERAL MOTORS COMPANY
  6. Install the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .
    Fig 5: Steering Column Upper Trim Cover
    GM4116979Courtesy of GENERAL MOTORS COMPANY
