Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Steering Column Lock Control Module (1) @ Steering Column - Install

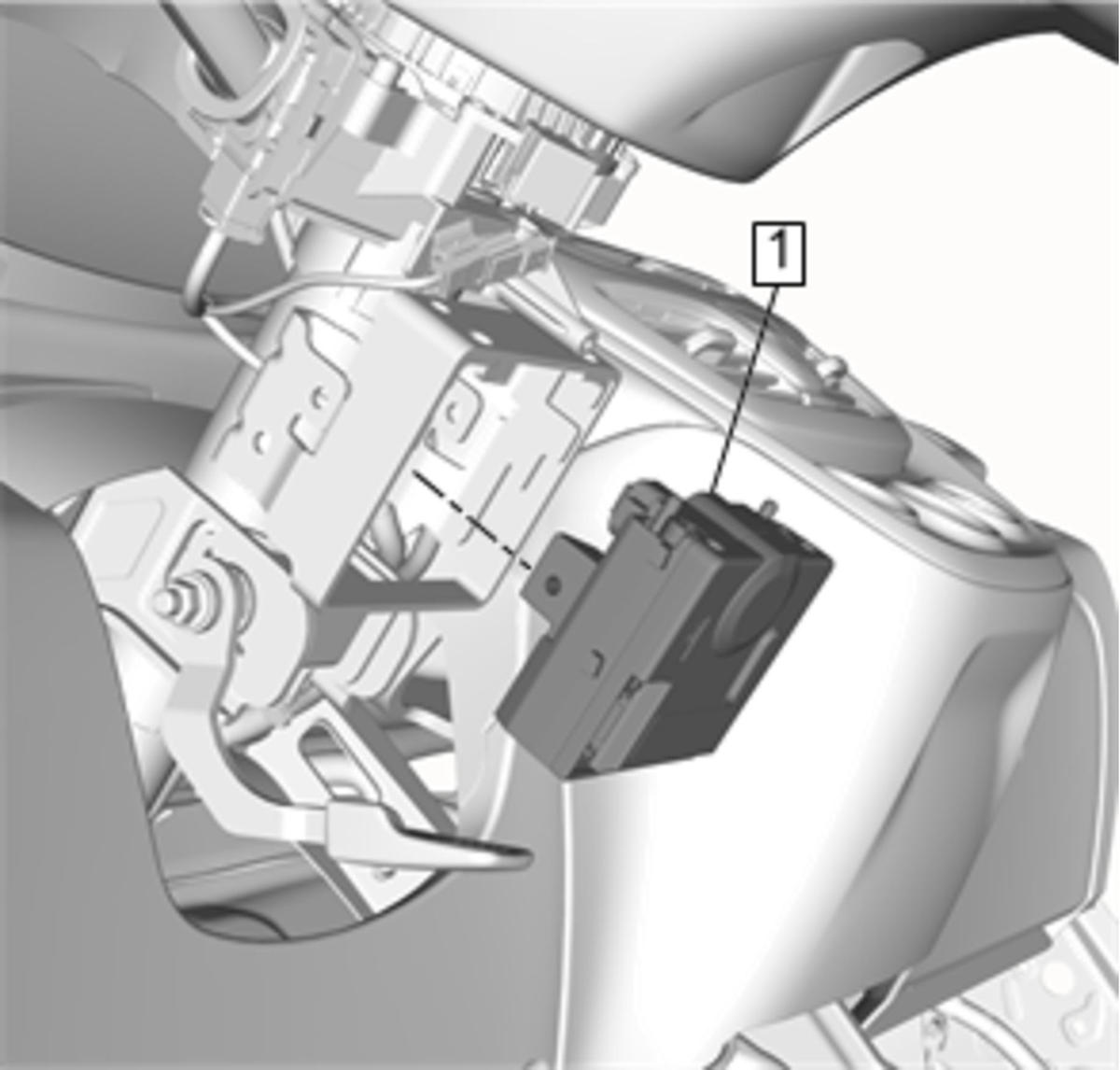

    Fig 1: Steering Column Lock Control Module
    GM4549003Courtesy of GENERAL MOTORS COMPANY
  2. Steering Column Lock Control Module Bolt-Side (1) - Install and tighten [2x] 9 N.m (80 lb in)

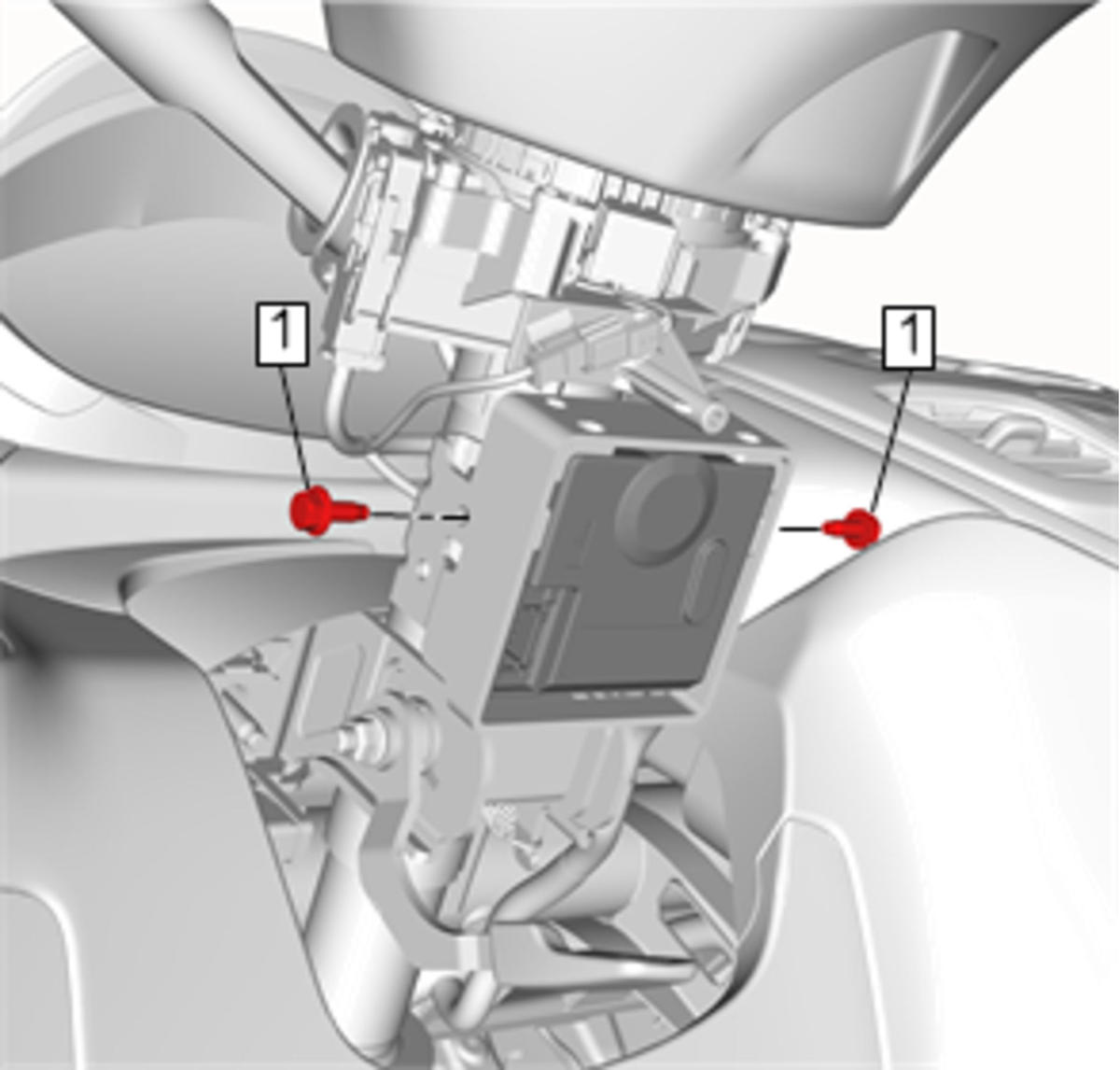

    Fig 2: Steering Column Lock Control Module Bolt-Side
    GM4549002Courtesy of GENERAL MOTORS COMPANY
  3. Steering Column Lock Control Module Bolt-Front (1) - Install NEW [2x]

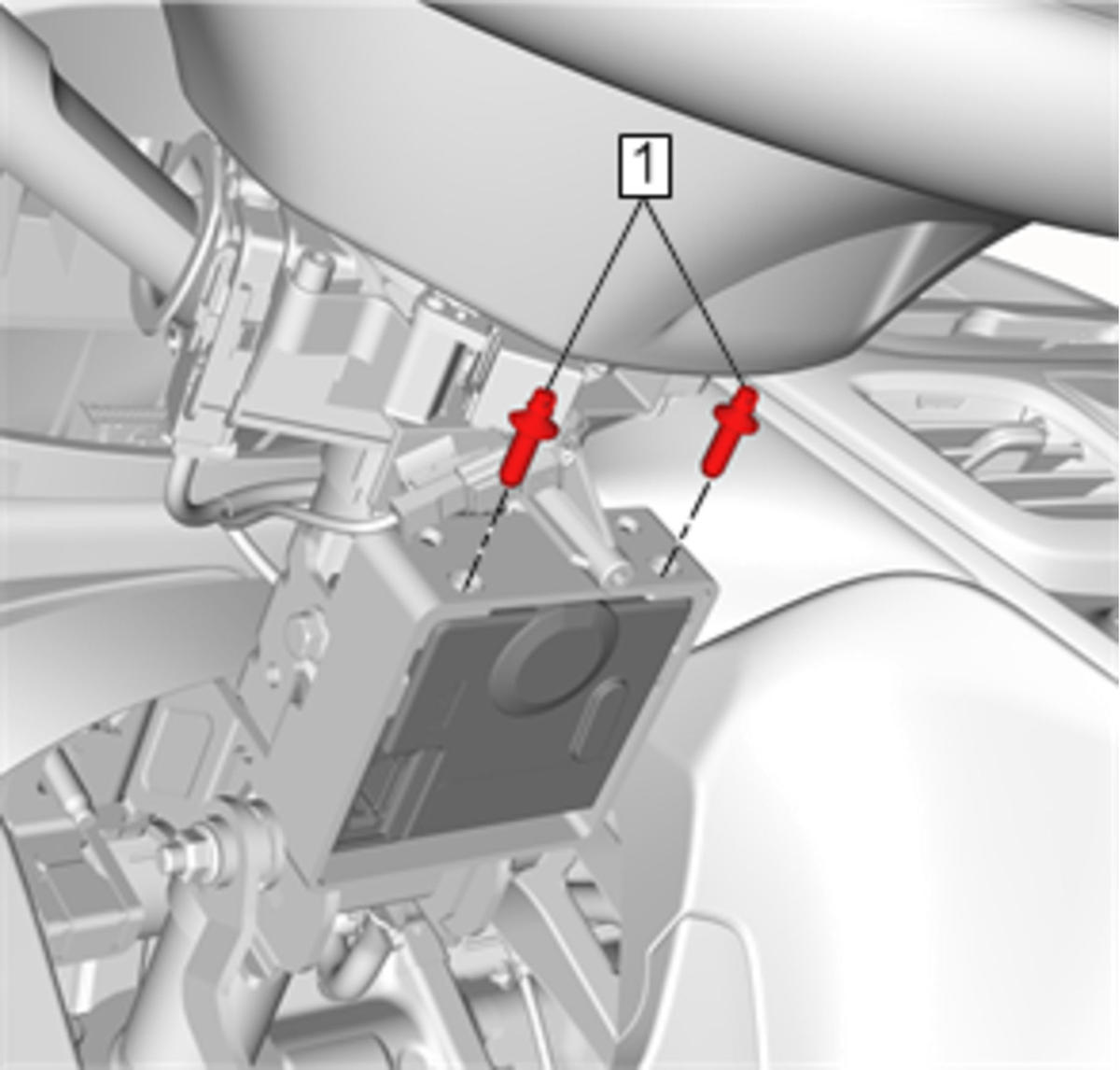

    Fig 3: Steering Column Lock Control Module Bolt-Front
    GM4549001Courtesy of GENERAL MOTORS COMPANY

    Tighten the bolts until the bolt heads break off.

  4. Electrical Connector (1) @ Steering Column Lock Control Module - Connect

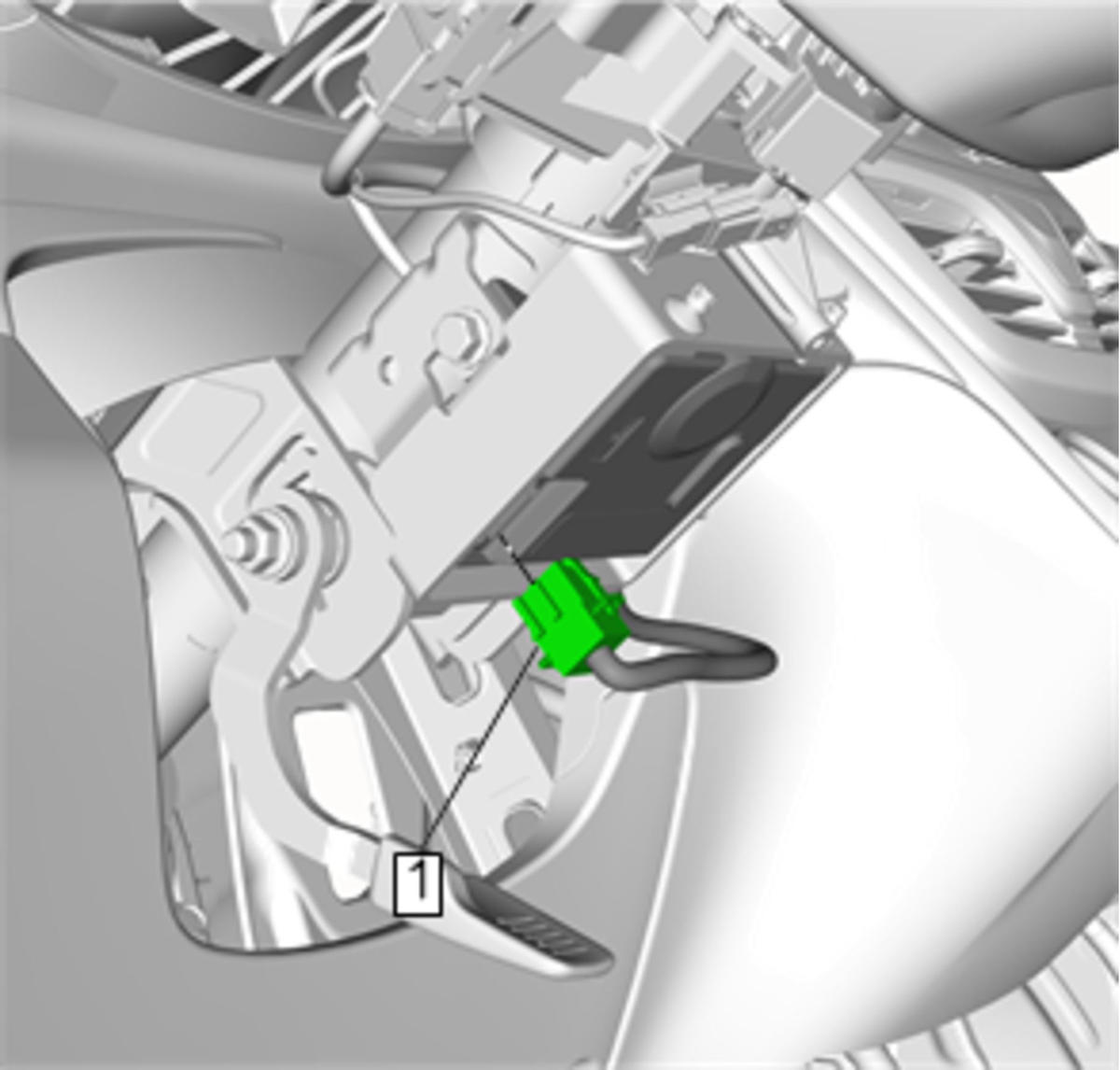

    Fig 4: Electrical Connector And Steering Column Lock Control Module
    GM4549000Courtesy of GENERAL MOTORS COMPANY
  5. Steering Column Lower Trim Cover - Install - Steering Column Lower Trim Cover Replacement
  6. Steering Column Upper Trim Cover - Install - Steering Column Upper Trim Cover Replacement
  7. Program the steering column lock control module. Refer to Control Module References
