Removal Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

Turn the steering wheel to the straight ahead position and secure the steering wheel from moving.
CAUTION:
With wheels of the vehicle facing straight ahead, secure the steering wheel utilizing steering column anti-rotation pin, steering column lock or a strap to prevent rotation. Locking of the steering column will prevent damage and a possible malfunction of the SIR system. The steering wheel must be secured in position before disconnecting the following components:
- The steering column
- The intermediate shaft(s)
- The steering gear
After disconnecting these components, do not rotate the steering wheel or move the front tires and wheels. Failure to follow this procedure may cause the SIR coil assembly to become un-centered and cause possible damage to the SIR coil. If you think the SIR coil has become un-centered, refer to your specific SIR coil's centering procedure to re-center SIR Coil.
Remove the intermediate steering shaft lower bolt (1).

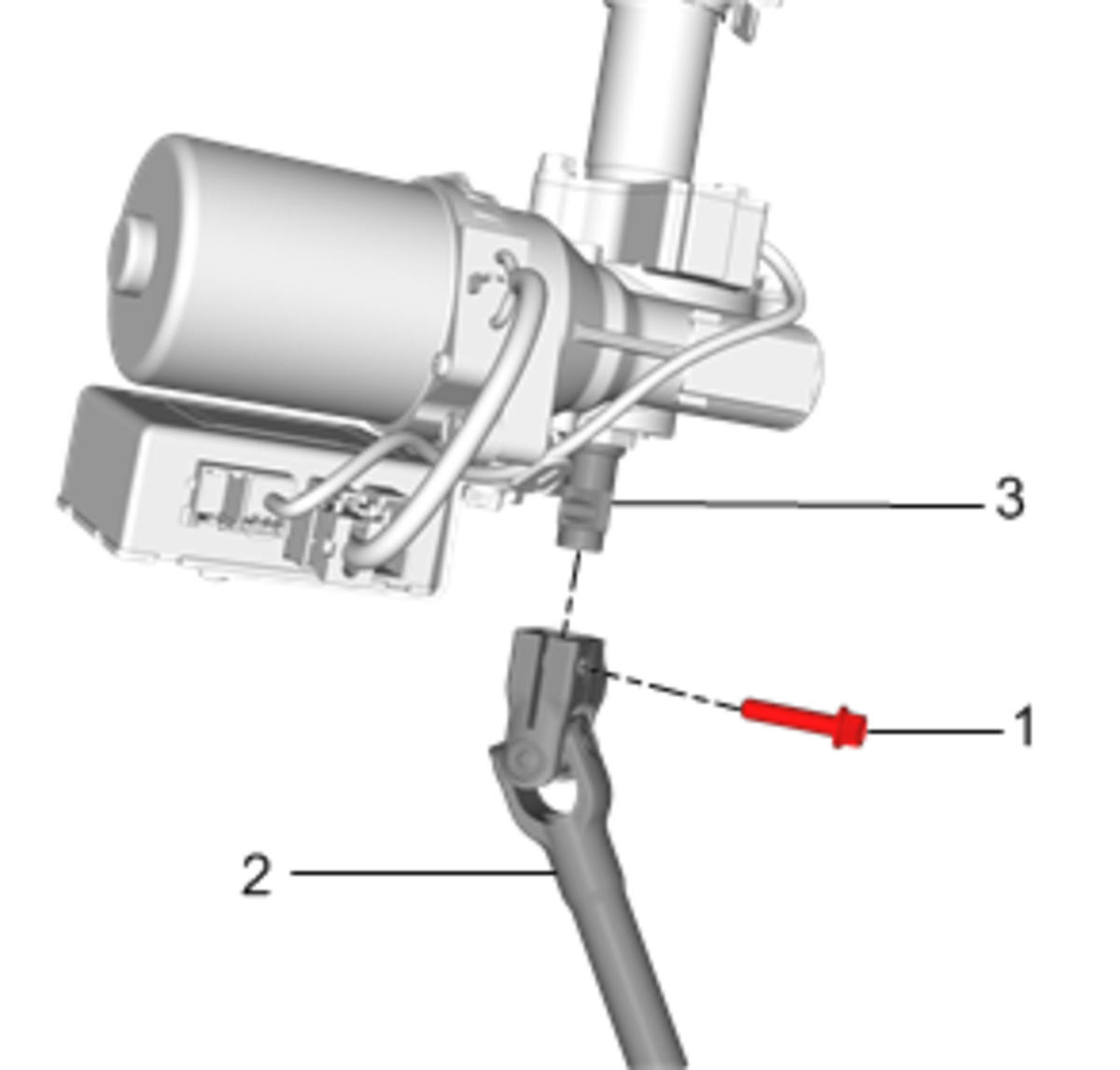

Fig 1: Intermediate Steering Shaft Lower Bolt
Courtesy of GENERAL MOTORS COMPANY
Disconnect the intermediate steering shaft (2) from the steering gear pinion shaft (3).
Remove the intermediate steering shaft upper bolt (1).

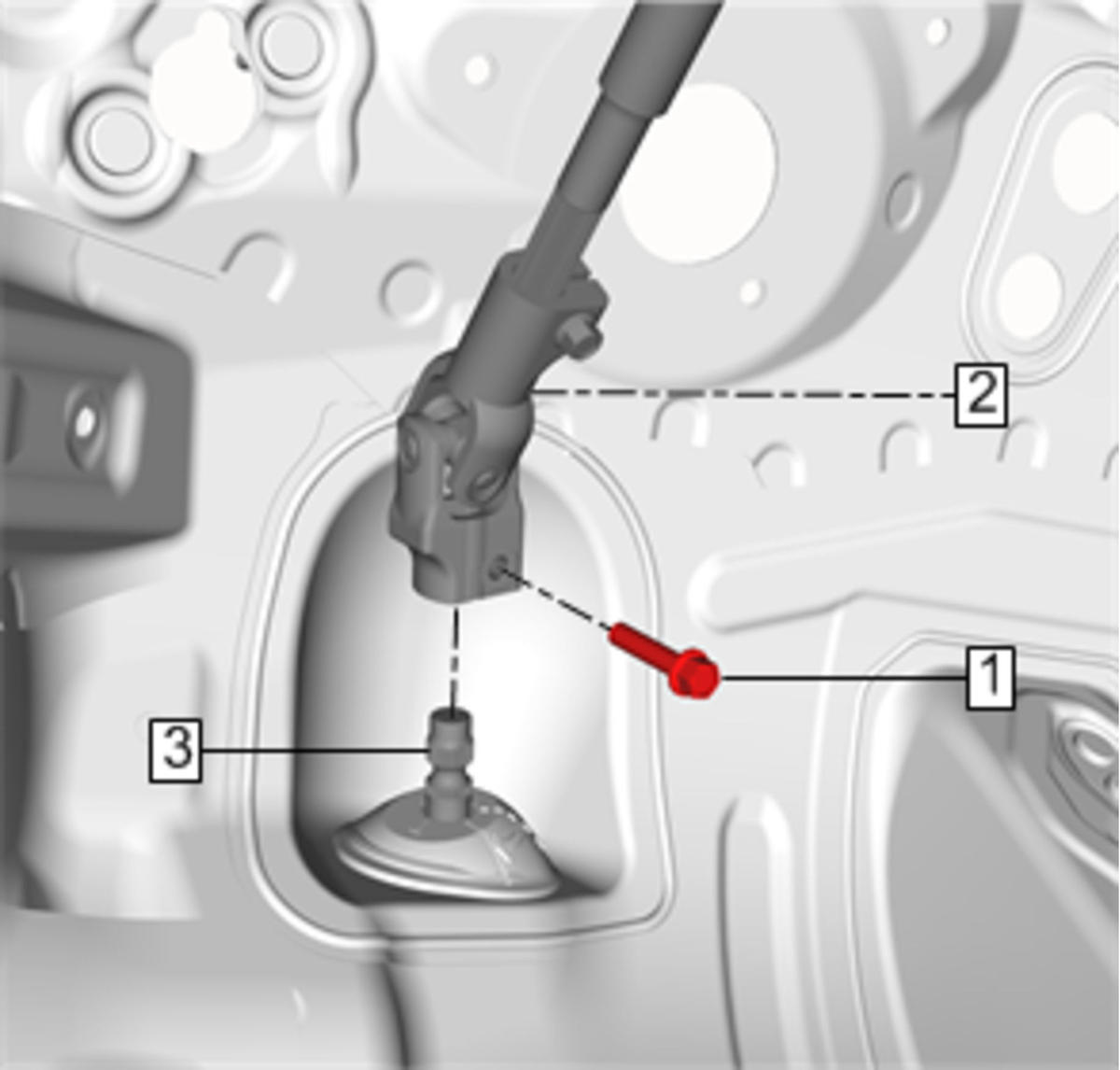

Fig 2: Intermediate Steering Shaft Upper Bolt
Courtesy of GENERAL MOTORS COMPANY
Disconnect the intermediate steering shaft (2) from the steering column shaft (3).
Remove the intermediate steering shaft (2) from the vehicle.
